Toyota Hilux Surf
2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan
Supported model
Data version 2010-01

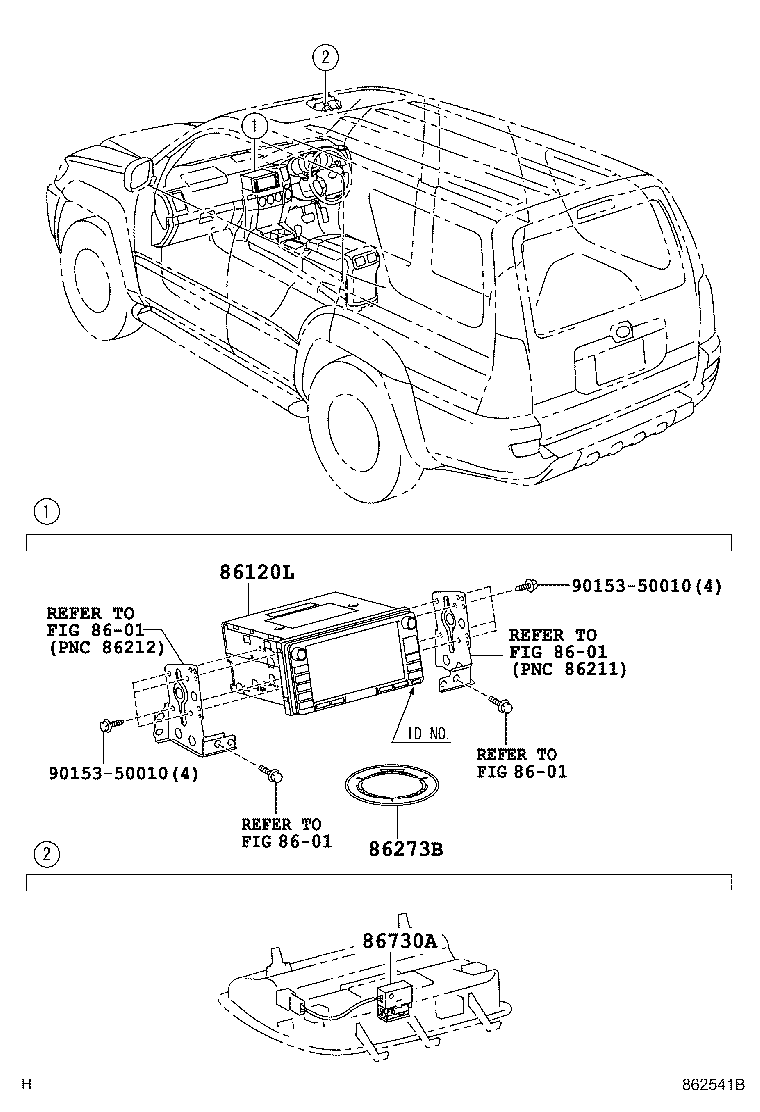

Navigation & Front Monitor Display
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86010 | Tuner Assy, Television |
| 86029A | Bracket Set, Television, NO.1 |
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86120L | Receiver Assy, Navigation |
| 86271 | Disc, Disc Player |
| 86273B | Adapter, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86841 | Computer, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
