Toyota Hilux Surf

2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

10 part groups · 5 illustrations

Illustrations

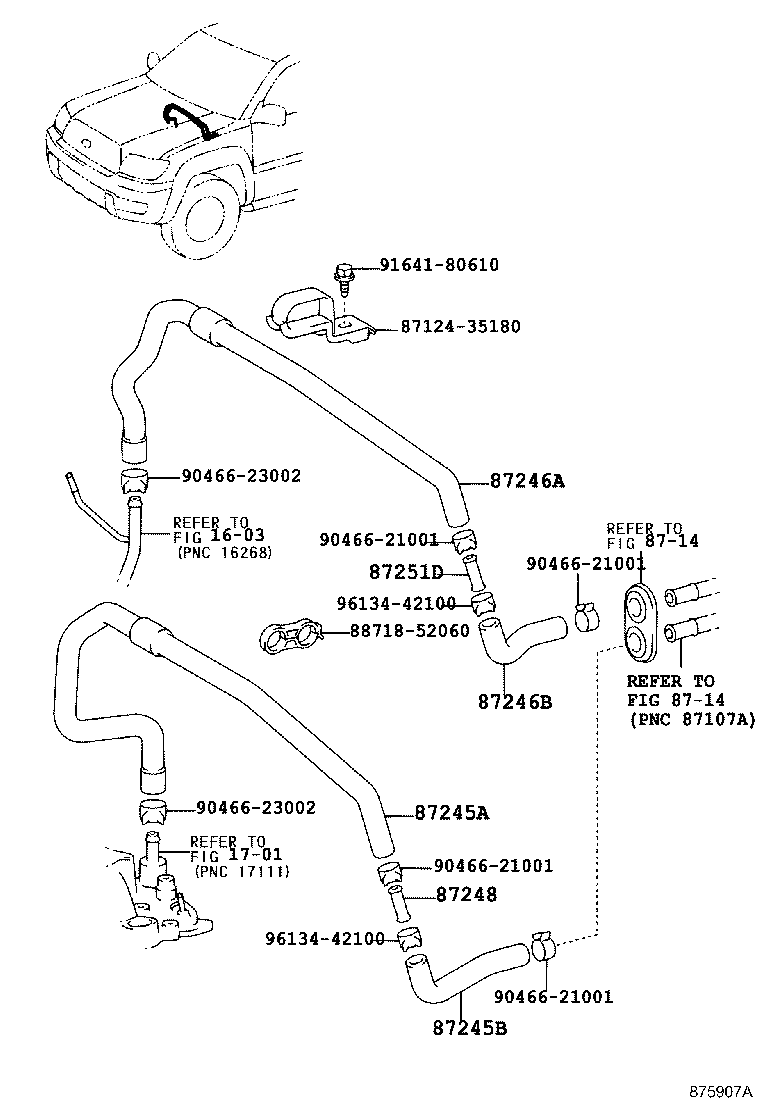

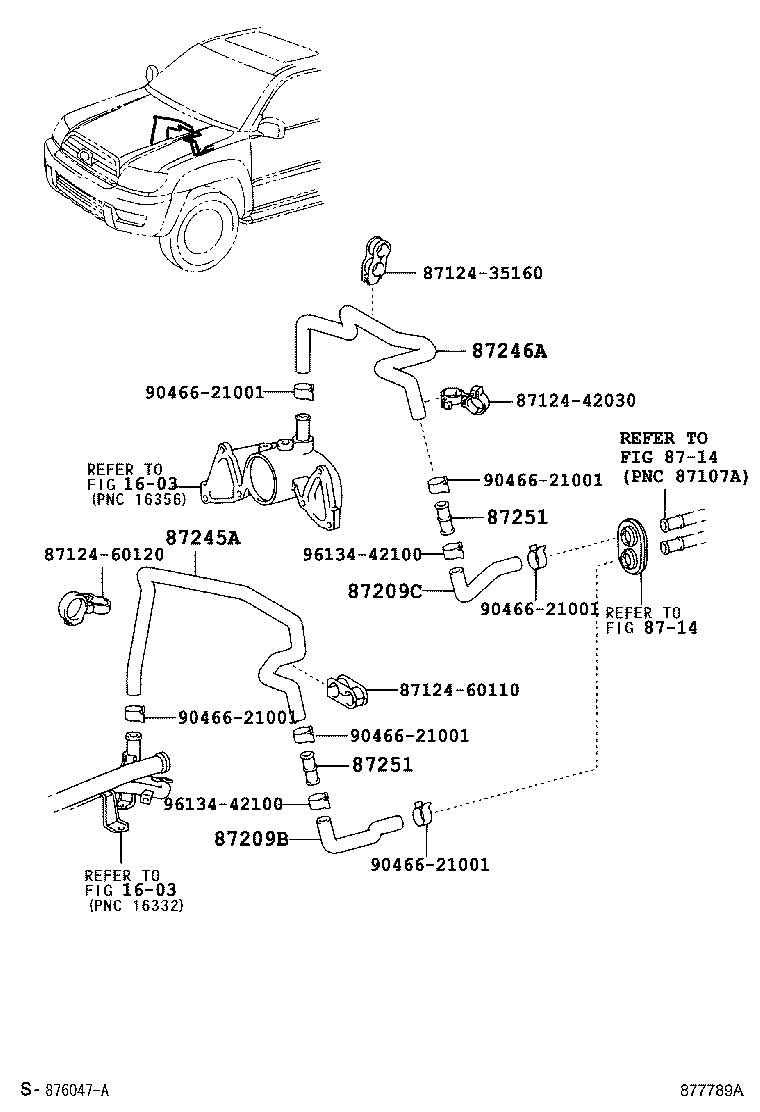

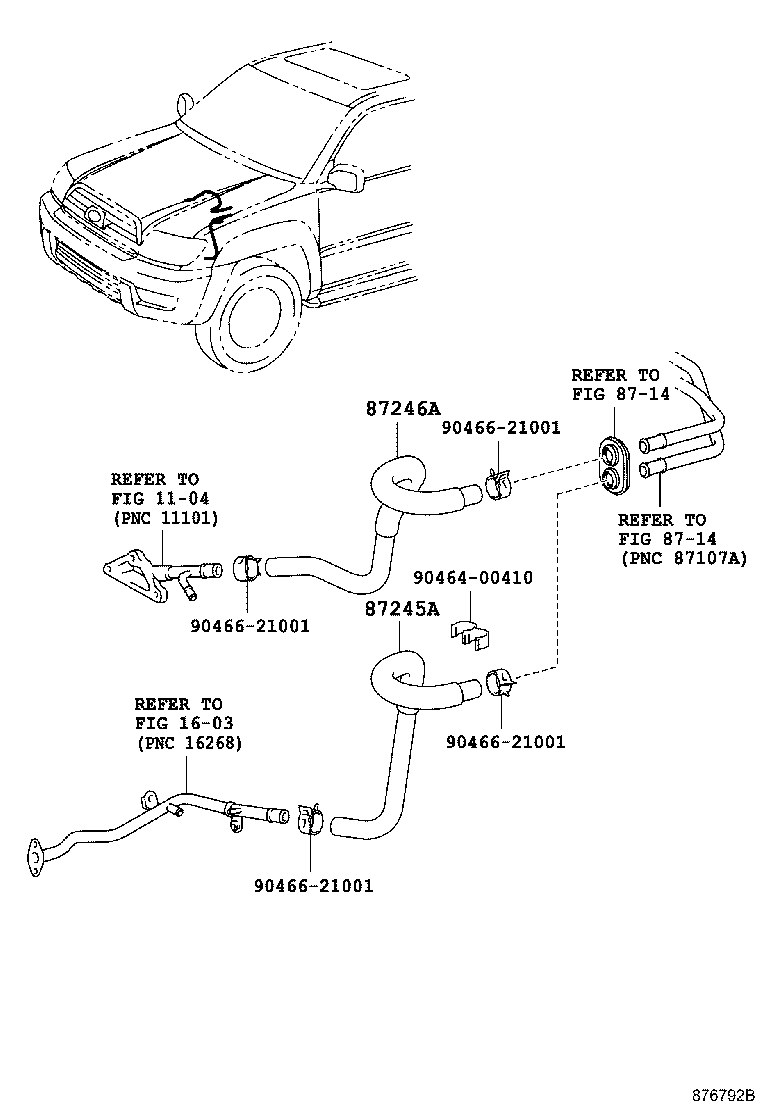

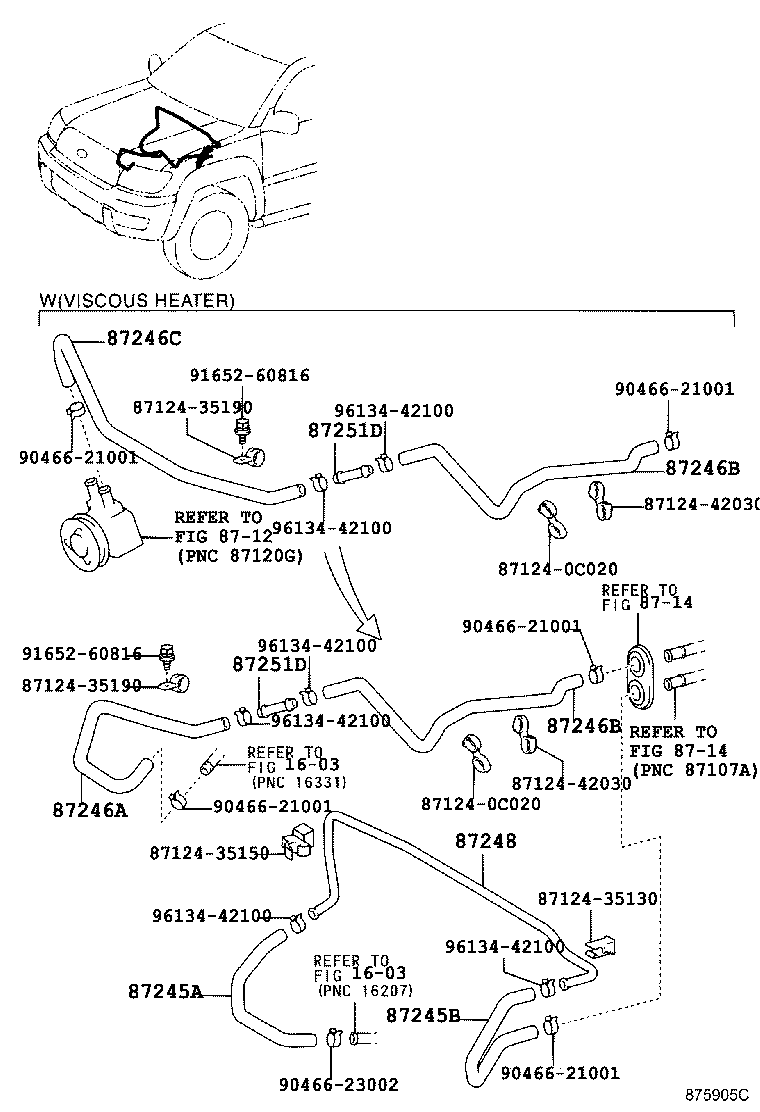

Figure 875906A 875906A 2002-11 → 2004-08 Figure 875905C 875905C 2002-11 → 2005-08 Figure 875907A 875907A 2002-11 → 2005-08 Figure 876792B 876792B 2004-08 → — Figure 877789A 877789A 2005-08 → —

Part groups

PNCDescription
87209B Hose Sub-assy, Water, B
87209C Hose Sub-assy, Water, C
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87248 Pipe Sub-assy, Water
87251 Joint OR Union, Water Hose Through
87251D Joint, Water, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
