Toyota Hilux Surf

2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan

Supported model Data version 2010-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

12 part groups · 7 illustrations

Illustrations

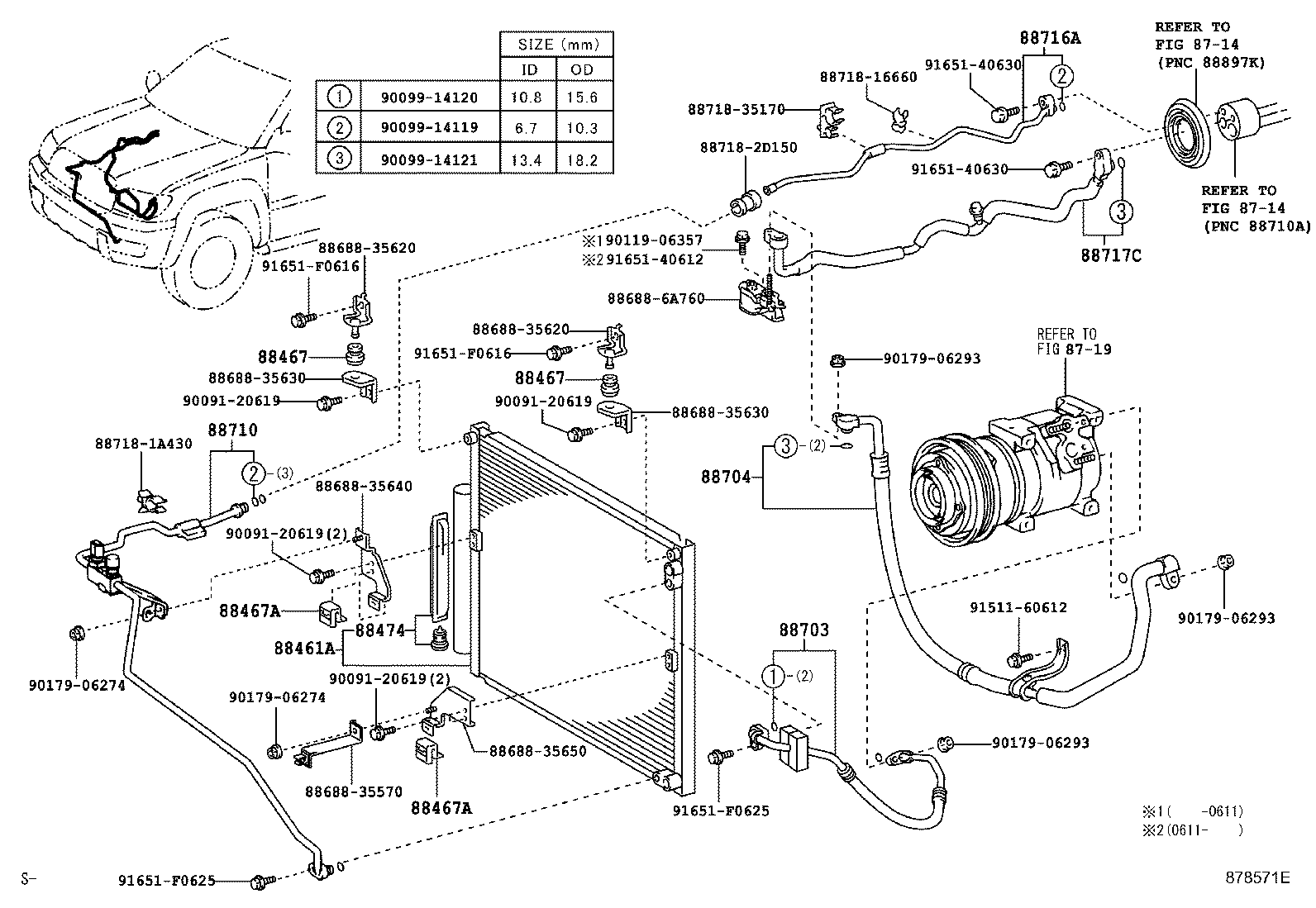

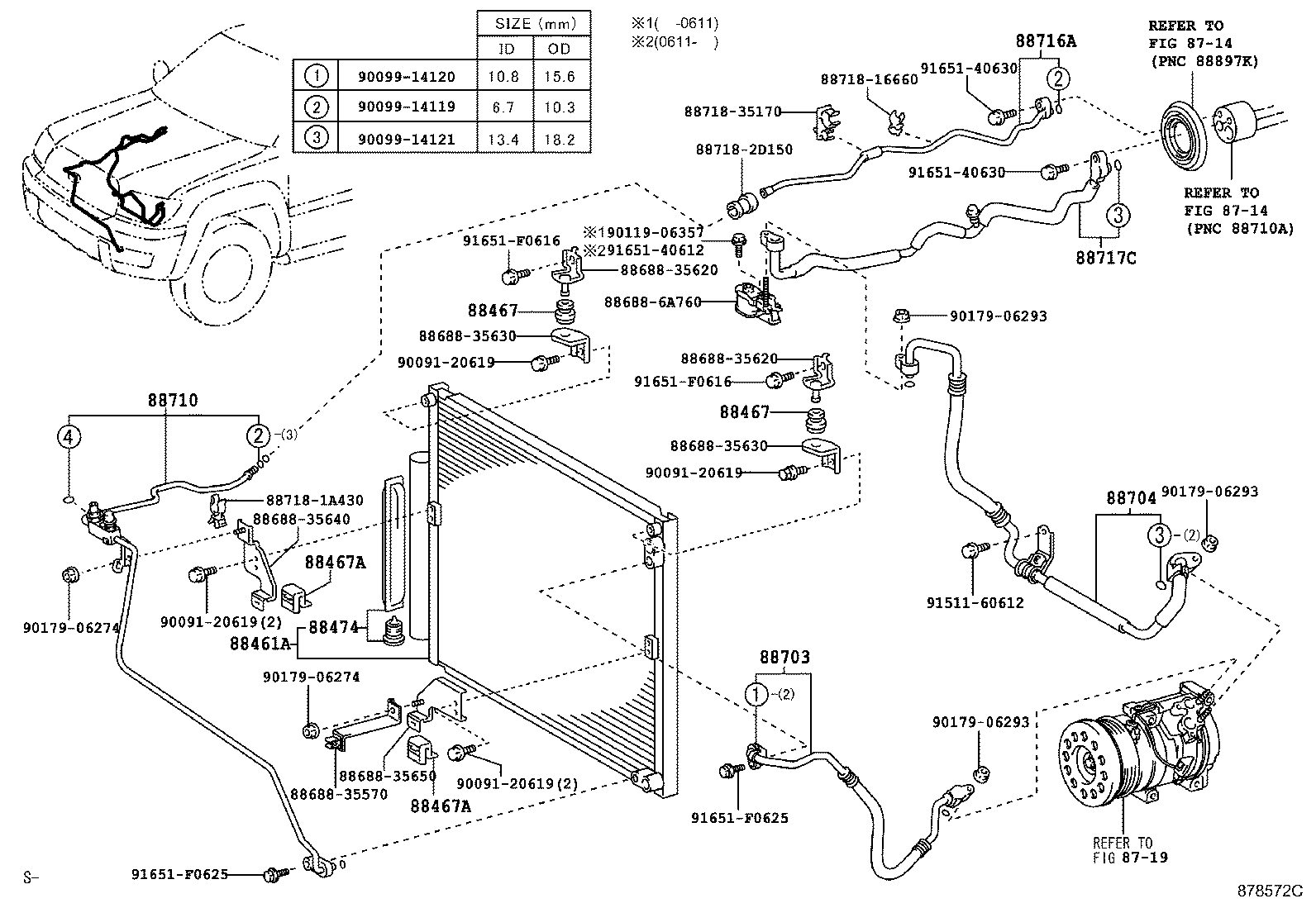

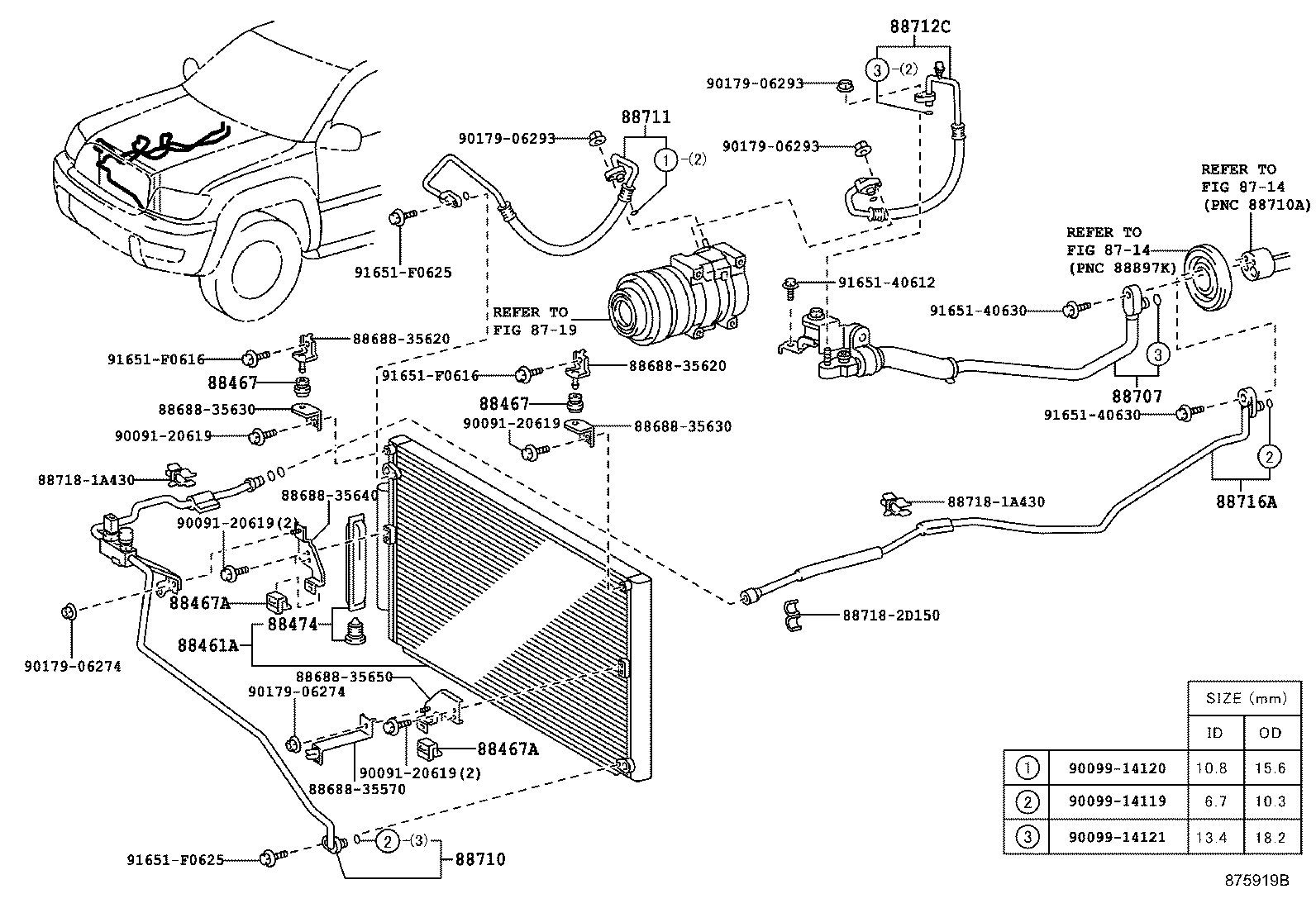

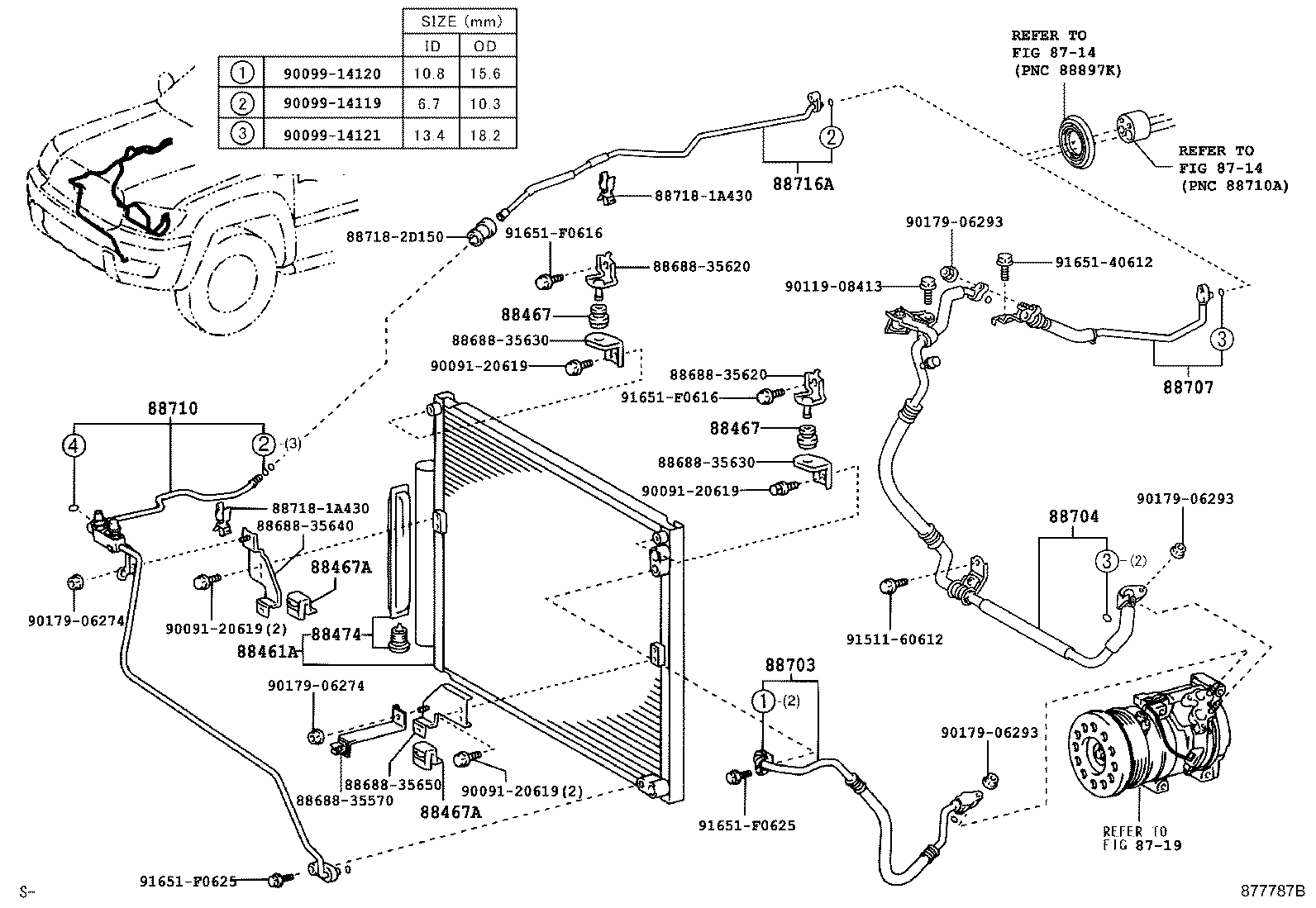

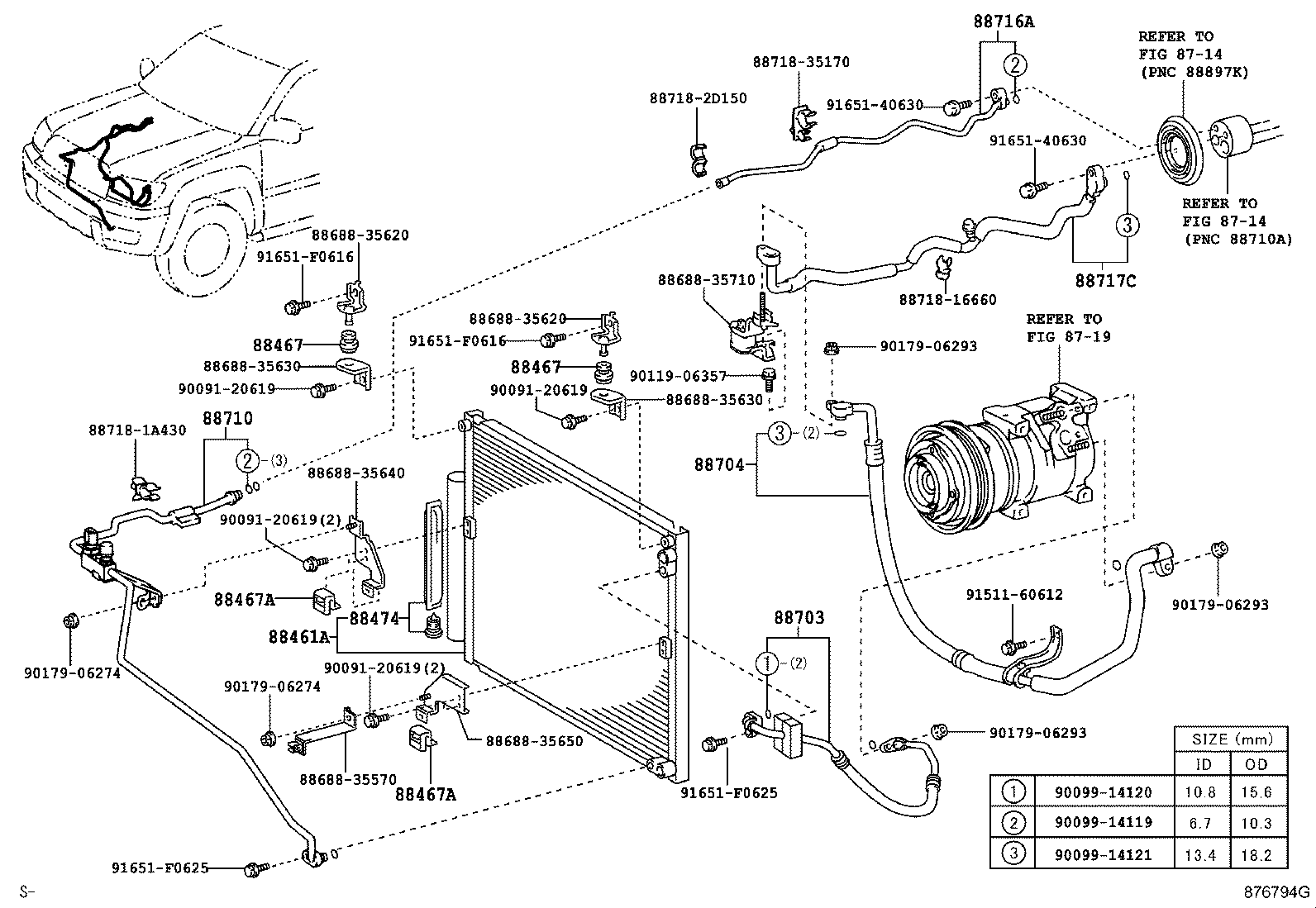

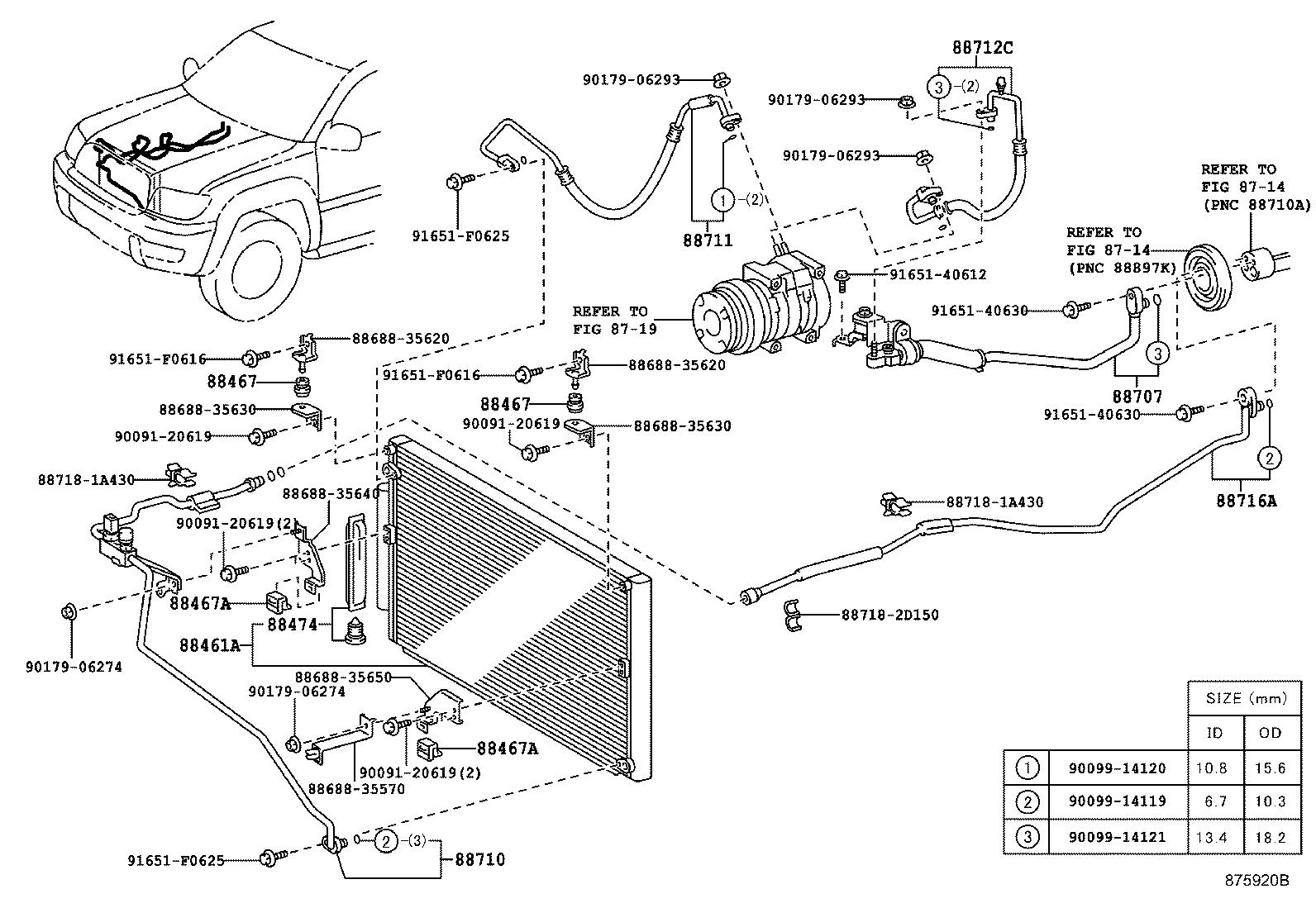

Figure 875918B 875918B 2002-11 → — Figure 875919B 875919B 2002-11 → — Figure 875920B 875920B 2002-11 → — Figure 876794G 876794G 2004-08 → 2006-01 Figure 877787B 877787B 2005-08 → 2006-01 Figure 878571E 878571E 2006-01 → — Figure 878572C 878572C 2006-01 → —

Part groups

PNCDescription
88461A Core, Cooler Condenser
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88717C Pipe, Cooler Refrigerant Suction, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
