Toyota Hilux Surf
2002-11 → 2009-08 · chassis GRN215,KDN215,RZN21#,TRN21#,VZN21# · catalogue 671170 · Japan
Supported model
Data version 2010-01

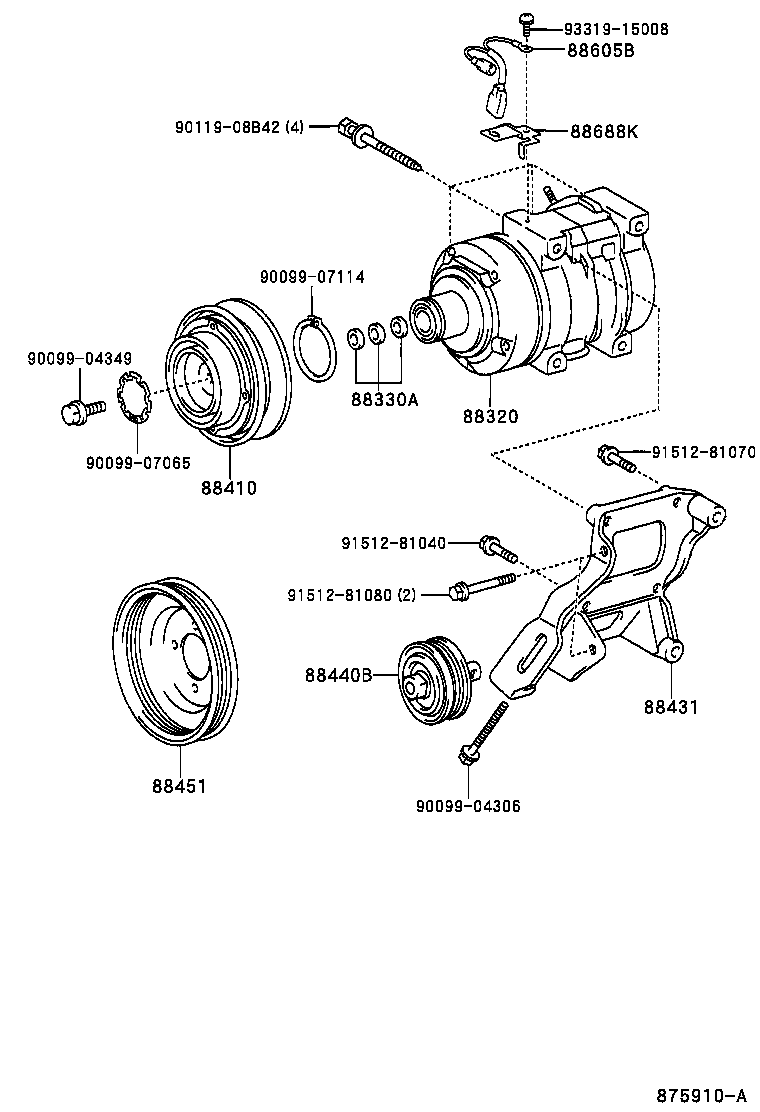

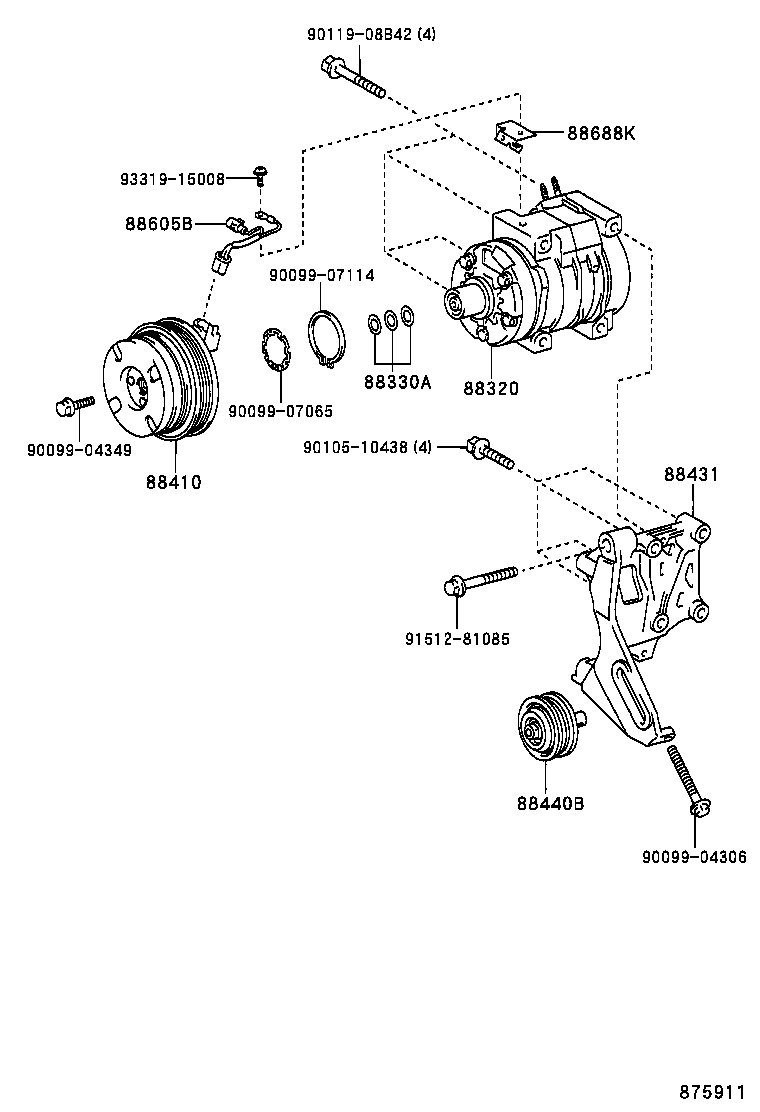

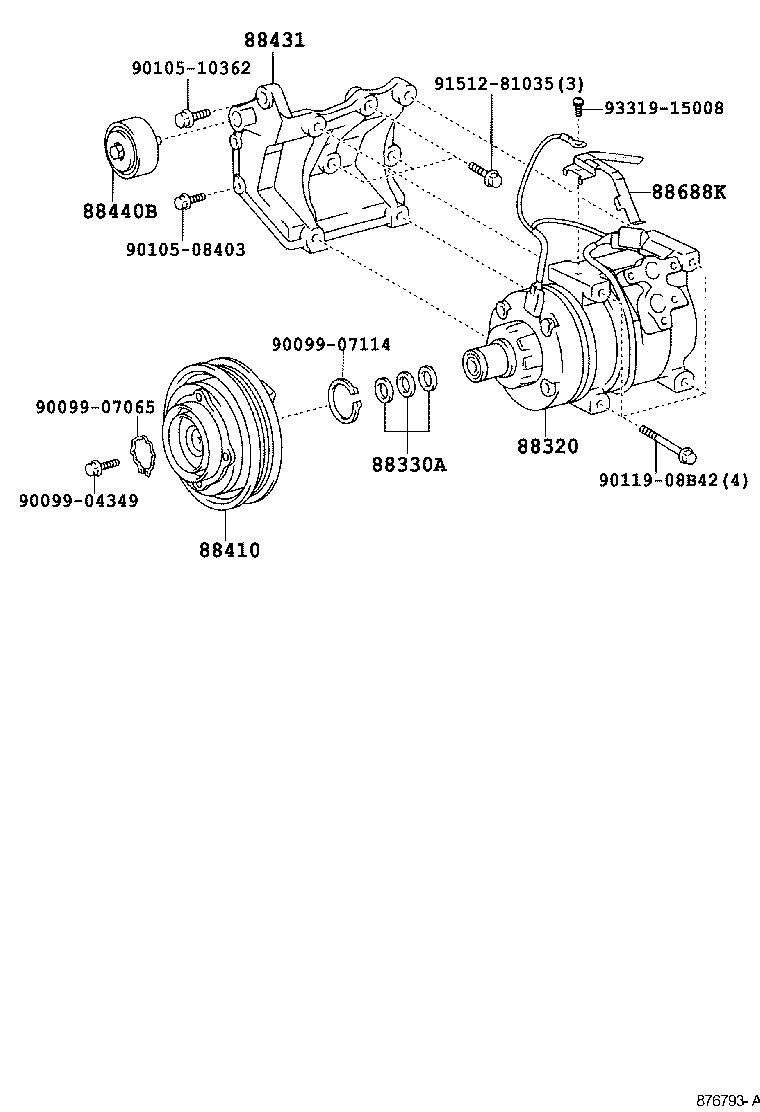

Heating & Air Conditioning - Compressor
8 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
| 88451 | Pulley, Crankshaft |
| 88605B | Harness Sub-assy, Air Conditioner Wiring |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
