Toyota Hilux

1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

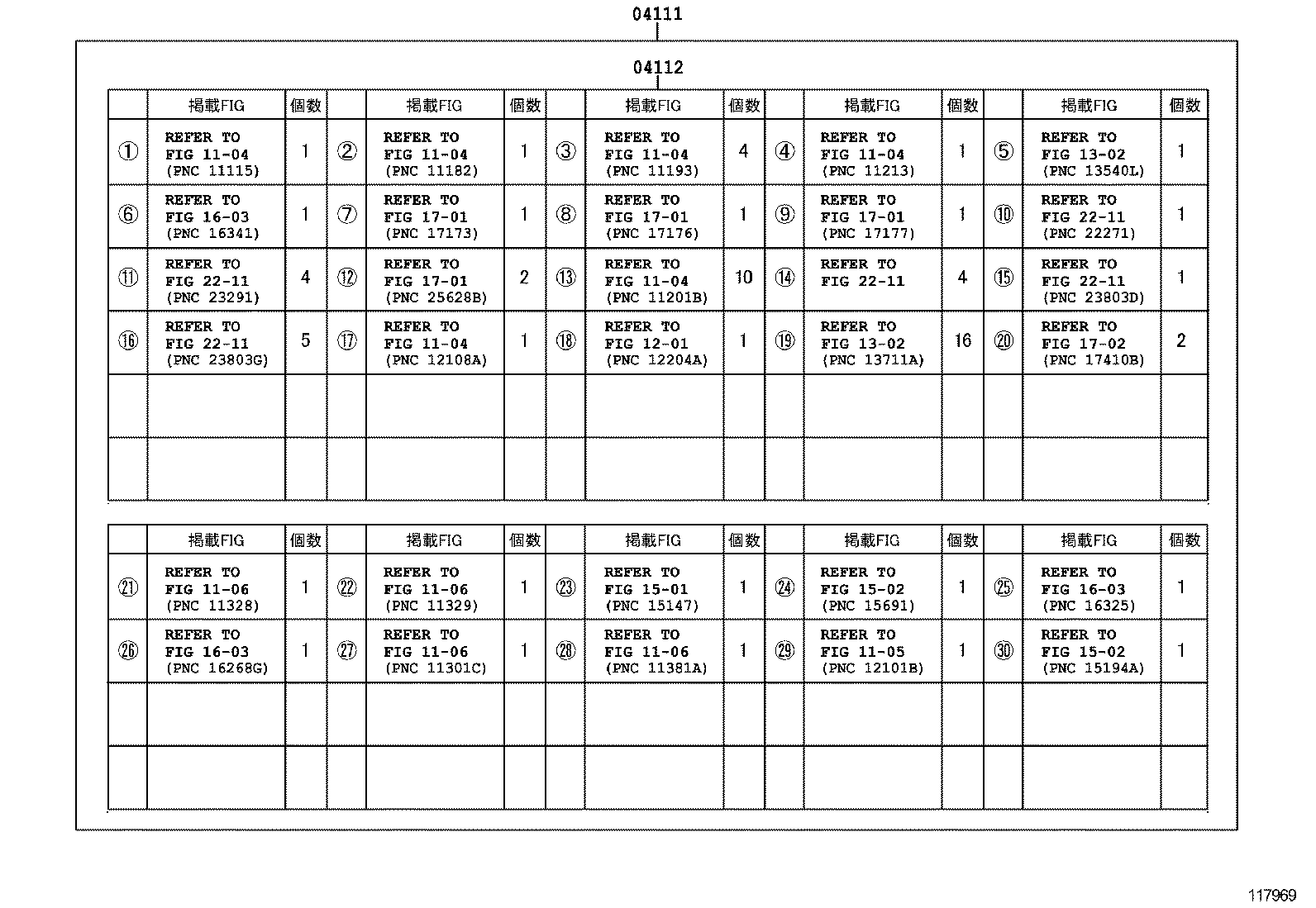

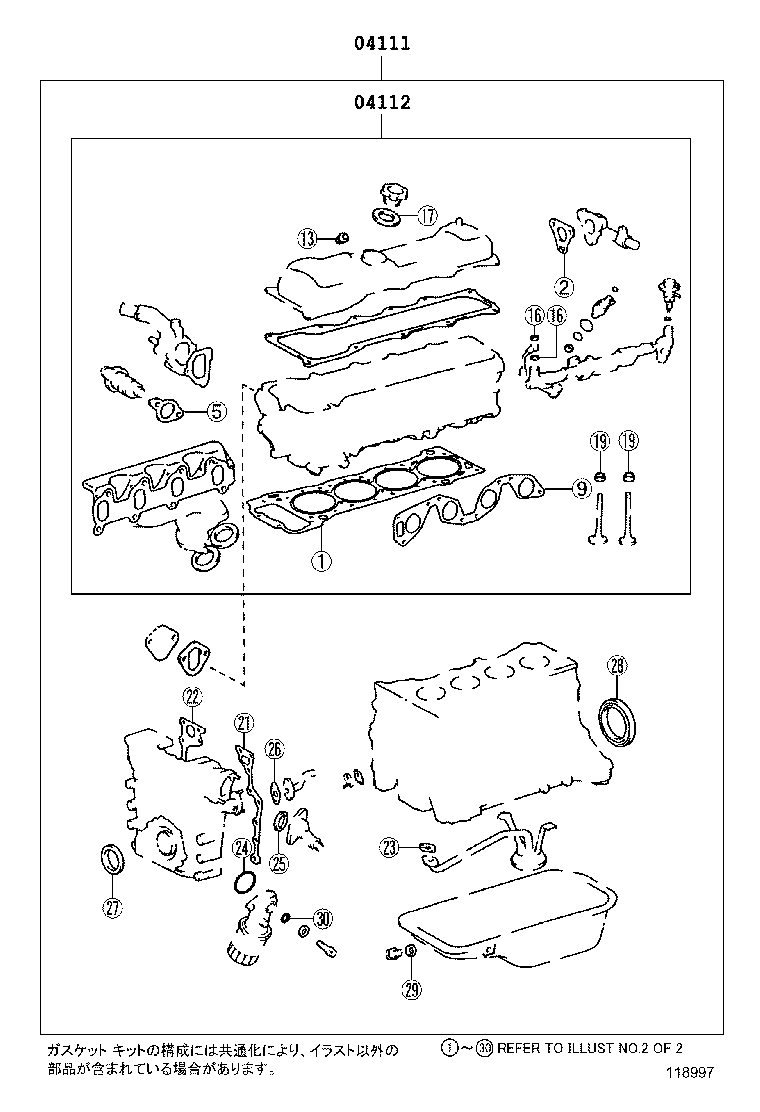

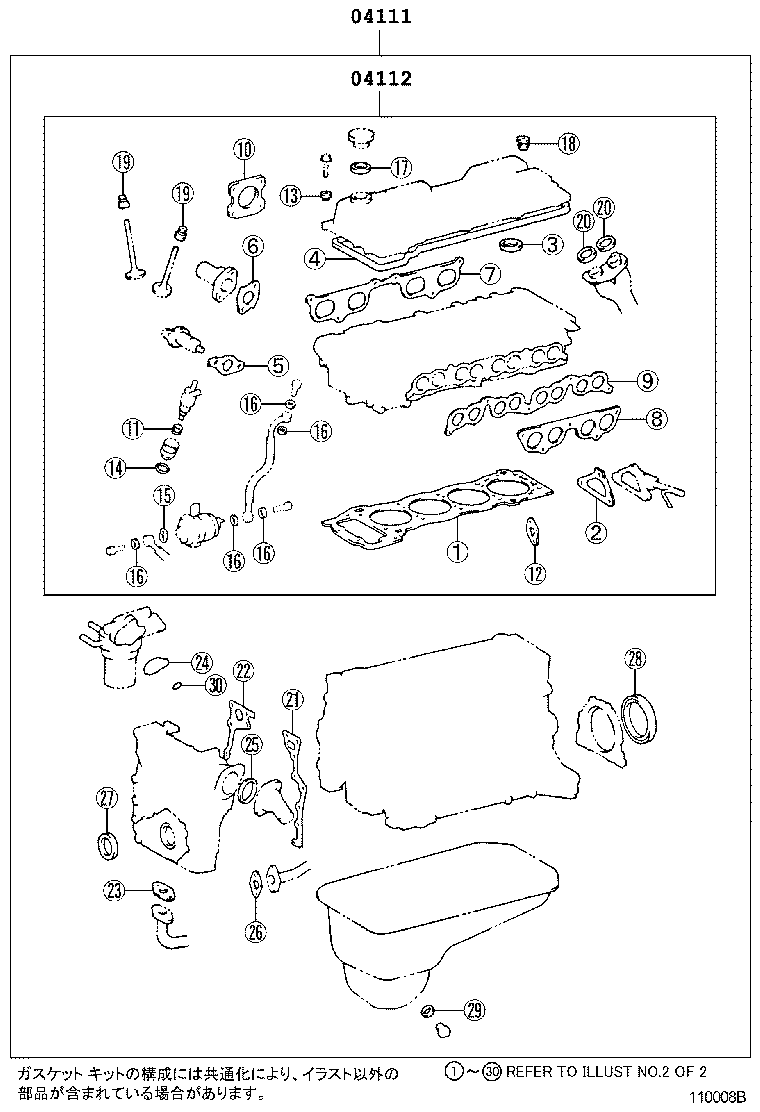

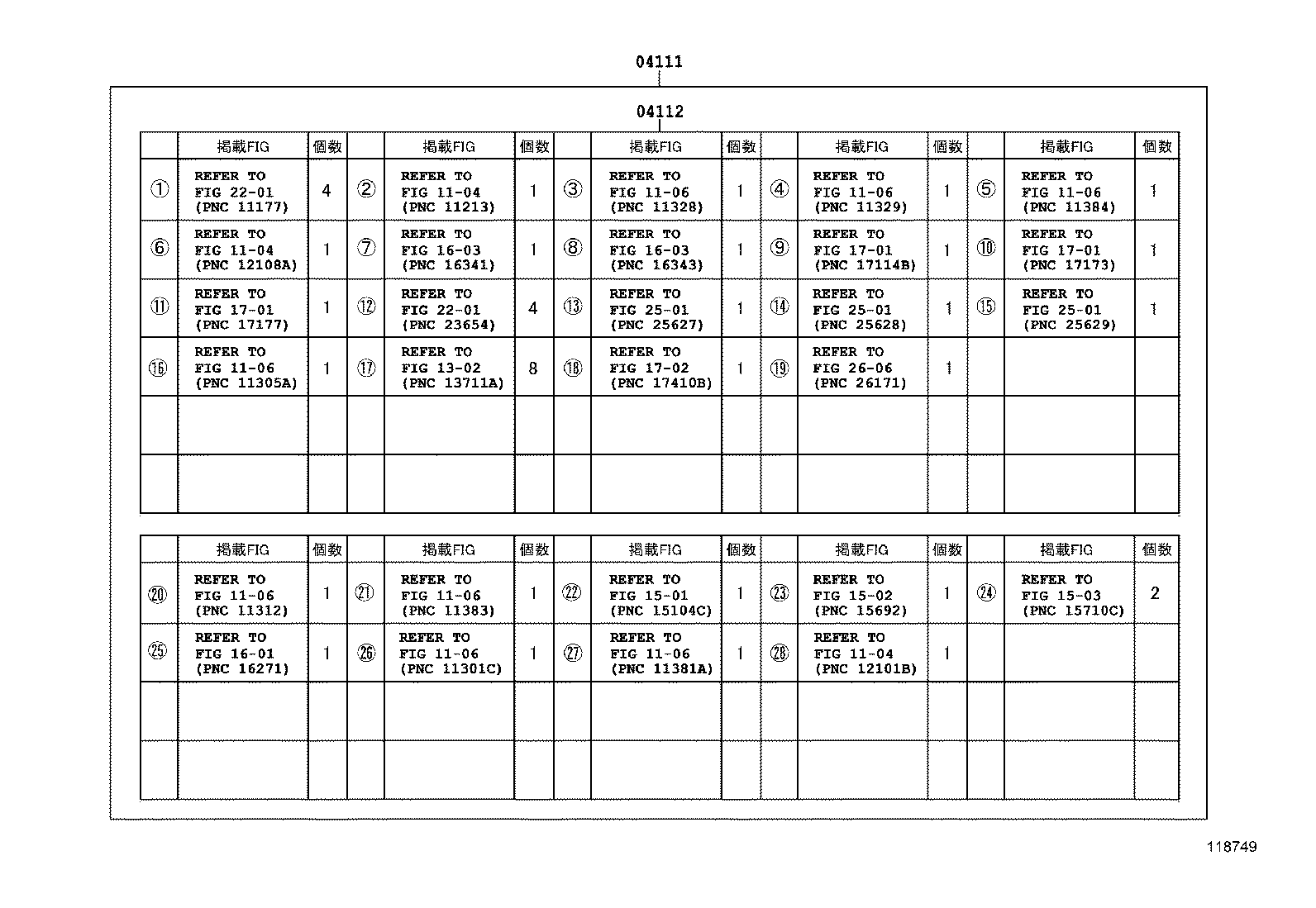

Figure 118748 118748 1997-08 → 2004-07 Figure 118749 118749 1997-08 → 2004-07 Figure 118977 118977 1997-08 → 2003-08 Figure 110008B 110008B 1999-08 → 2003-08 Figure 117969 117969 1997-06 → 2003-08 Figure 117969 117969 1999-08 → 2003-08

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
