Toyota Hilux

1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan

Discontinued model Data version 2005-04

Camshaft & Valve

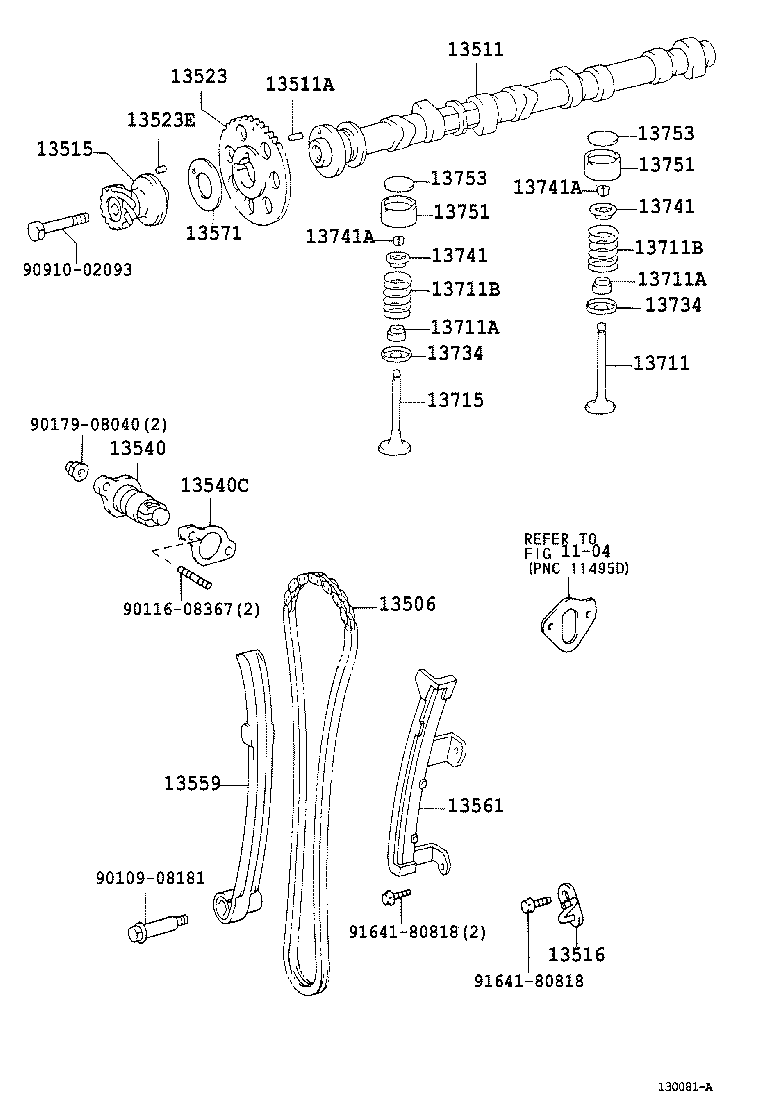

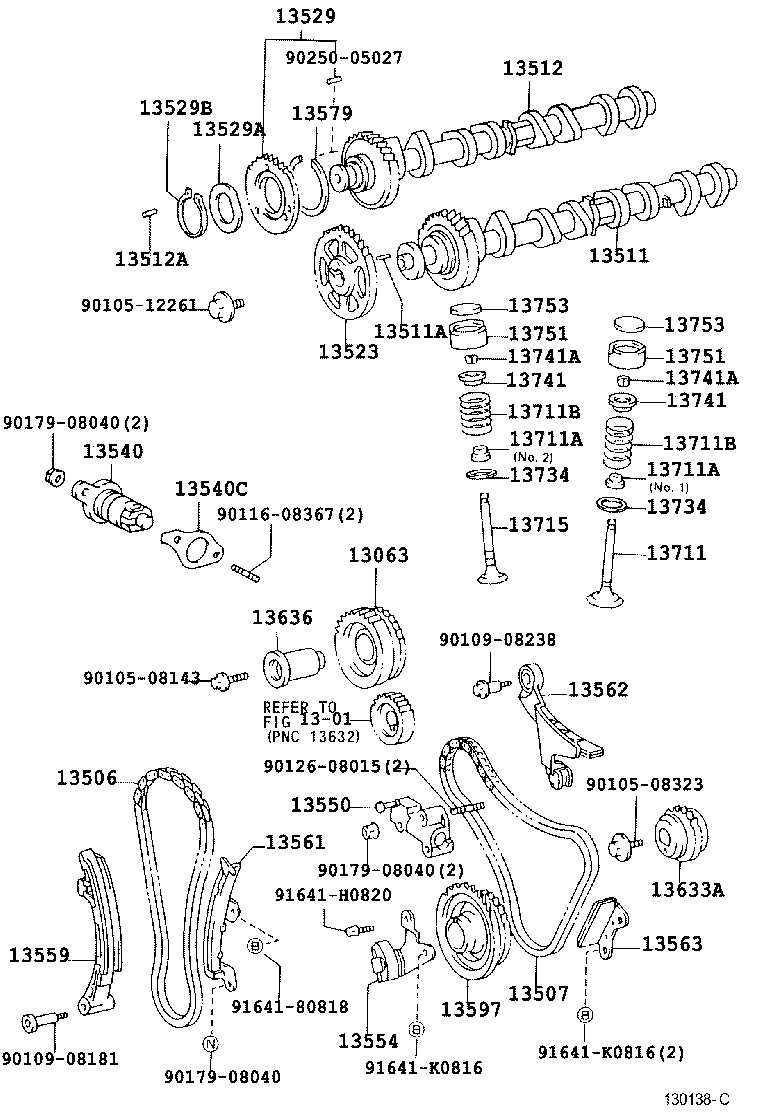

46 part groups · 3 illustrations

PNC	Description
11802	Bearing Set, Camshaft
13063	Gear Sub-assy, Balanceshaft Drive
13502	Idler Sub-assy, Timing Belt, NO.2
13505	Idler Sub-assy, Timing Belt, NO.1
13505A	Spring, Tension(FOR IDLER)
13506	Chain Sub-assy
13507	Chain Sub-assy, NO.2
13511	Camshaft
13511A	Pin, Straight(FOR CAMSHAFT KNOCK)
13512	Camshaft, NO.2
13512A	Pin, Straight NO.2(FOR CAMSHAFT KNOCK)
13515	Gear, Distributor Drive
13516	Jet, Oil
13523	Gear OR Sprocket, Camshaft Timing
13523A	Key, Woodruff(FOR TIMING GEAR)
13523E	Pin, Straight(FOR TIMING GEAR)
13523P	Pulley, Camshaft Timing
13529	Gear, Camshaft Sub
13529A	Washer, Wave(FOR CAMSHAFT SUB GEAR)
13529B	Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR)
13540	Tensioner Assy, Chain, NO.1
13540C	Gasket(FOR CHAIN TENSIONER)
13550	Tensioner Assy, Chain, NO.2
13554	Damper, Chain Vibration, NO.4
13558	Bracket, Spring(FOR IDLER)
13559	Slipper, Chain Tensioner
13561	Damper, Chain Vibration, NO.1
13562	Damper, Chain Vibration, NO.2
13563	Damper, Chain Vibration, NO.3
13568	Belt, Timing
13571	Plate, Camshaft Thrust
13579	Washer, Camshaft Timing Gear Bolt
13597	Sprocket, Crankshaft Timing, NO.2
13613P	Pulley, Injection Pump Drive
13633A	Gear, Balanceshaft Driven, NO.2
13636	Shaft, Balanceshaft Drive Gear
13711	Valve, Intake
13711A	Seal OR Ring, O(FOR VALVE STEM OIL)
13711B	Spring, Compression(FOR INNER)
13711D	Washer, Plate(FOR VALVE SPRING SEAT)
13715	Valve, Exhaust
13734	Seat, Valve Spring
13741	Retainer, Valve Spring
13741A	Lock, Valve Spring Retainer
13751	Lifter, Valve
13753	Shim, Valve Adjusting

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
