Toyota Hilux

1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

13 part groups · 5 illustrations

Illustrations

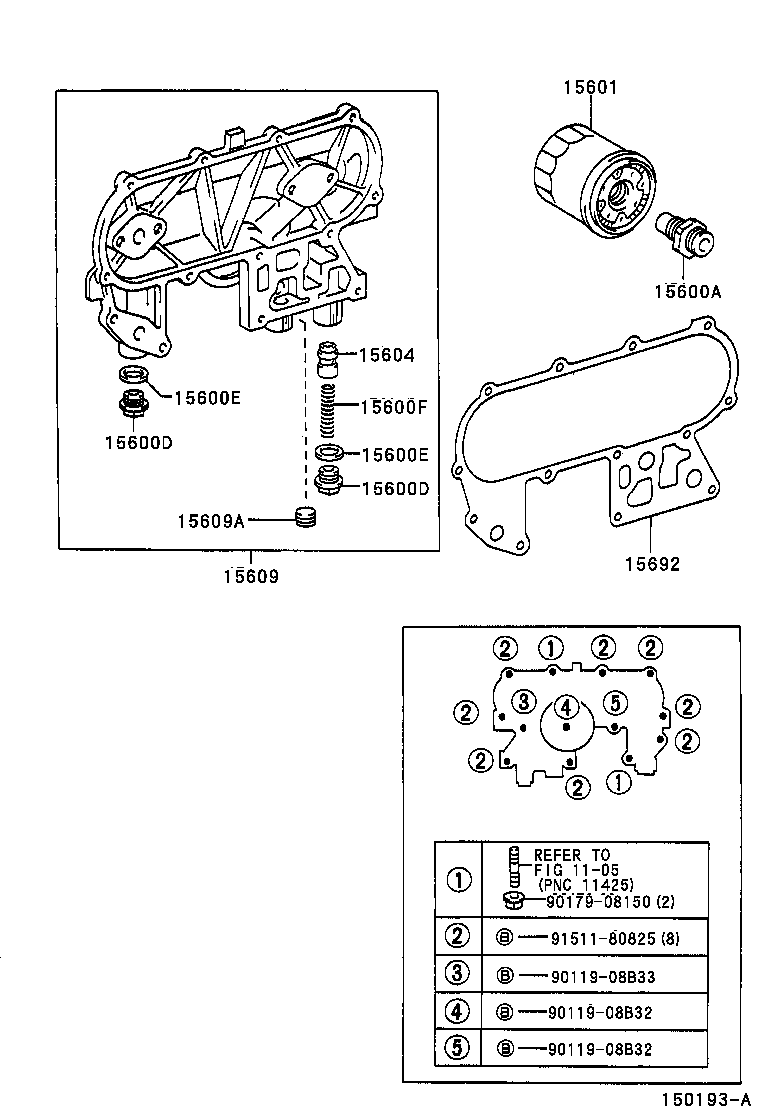

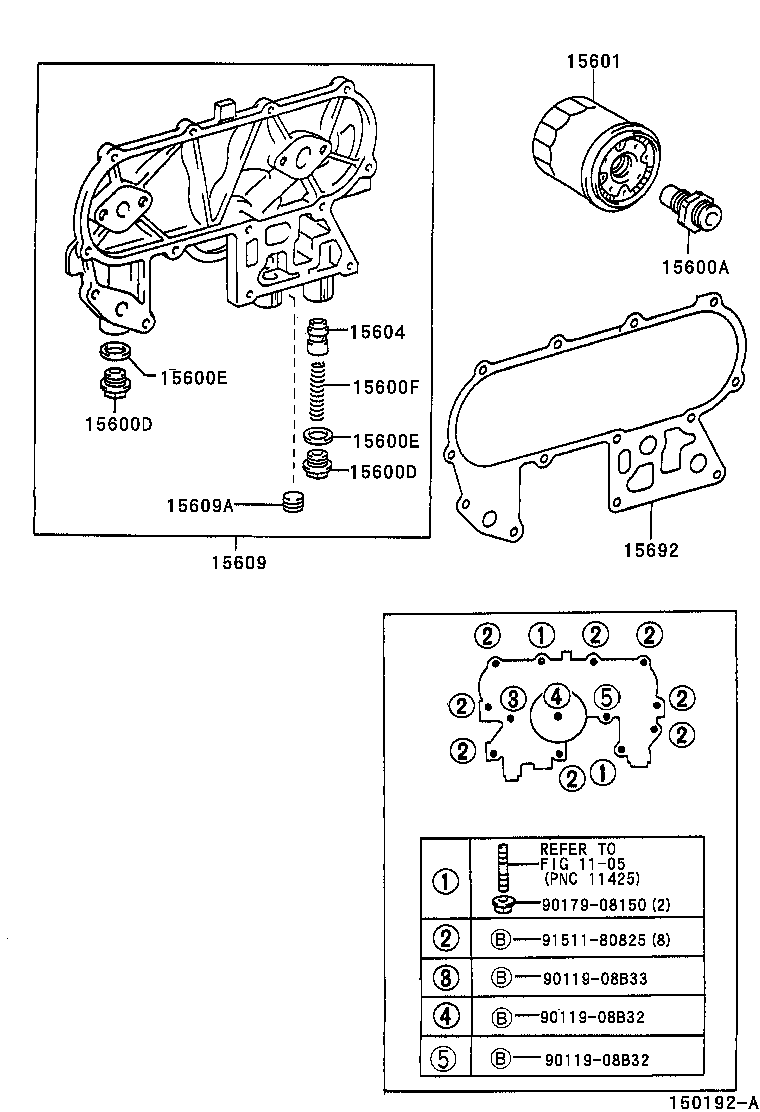

Figure 150191A 150191A 1997-08 → — Figure 150192A 150192A 1997-08 → — Figure 150193A 150193A 1997-08 → 1999-08 Figure 150083E 150083E 1997-08 → — Figure 150081 150081 1999-08 → —

Part groups

PNCDescription
15194A Ring, O
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609A Plug, Taper Screw(FOR OIL FILTER BRACKET)
15609C Gasket(FOR OIL FILTER BRACKET UNION)
15609G Bolt, Union(FOR OIL FILTER BRACKET)
15691 Gasket, Oil Filter
15692 Gasket, Oil Filter Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
