Toyota Hilux
1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan
Discontinued model
Data version 2005-04
Exhaust Pipe

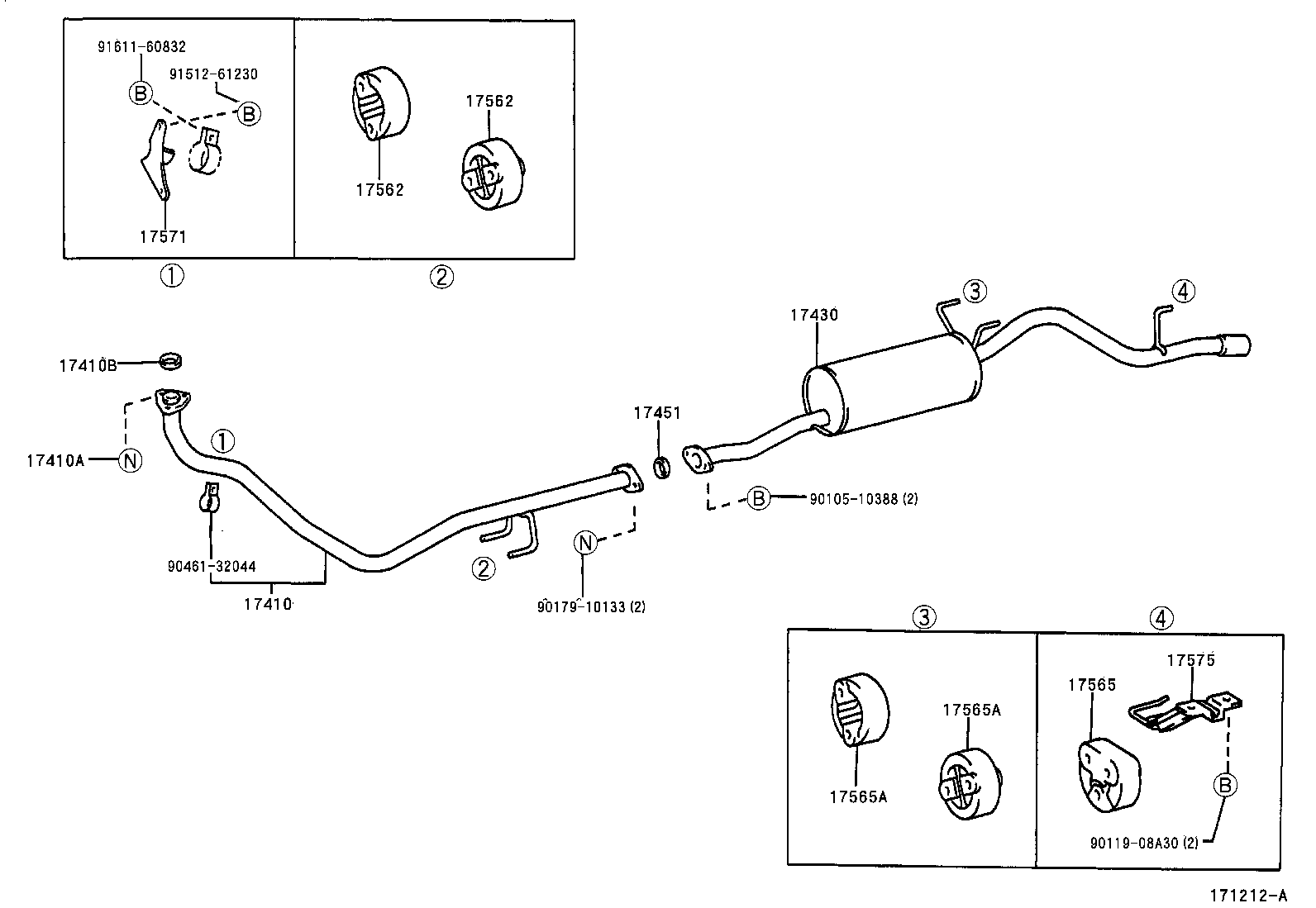

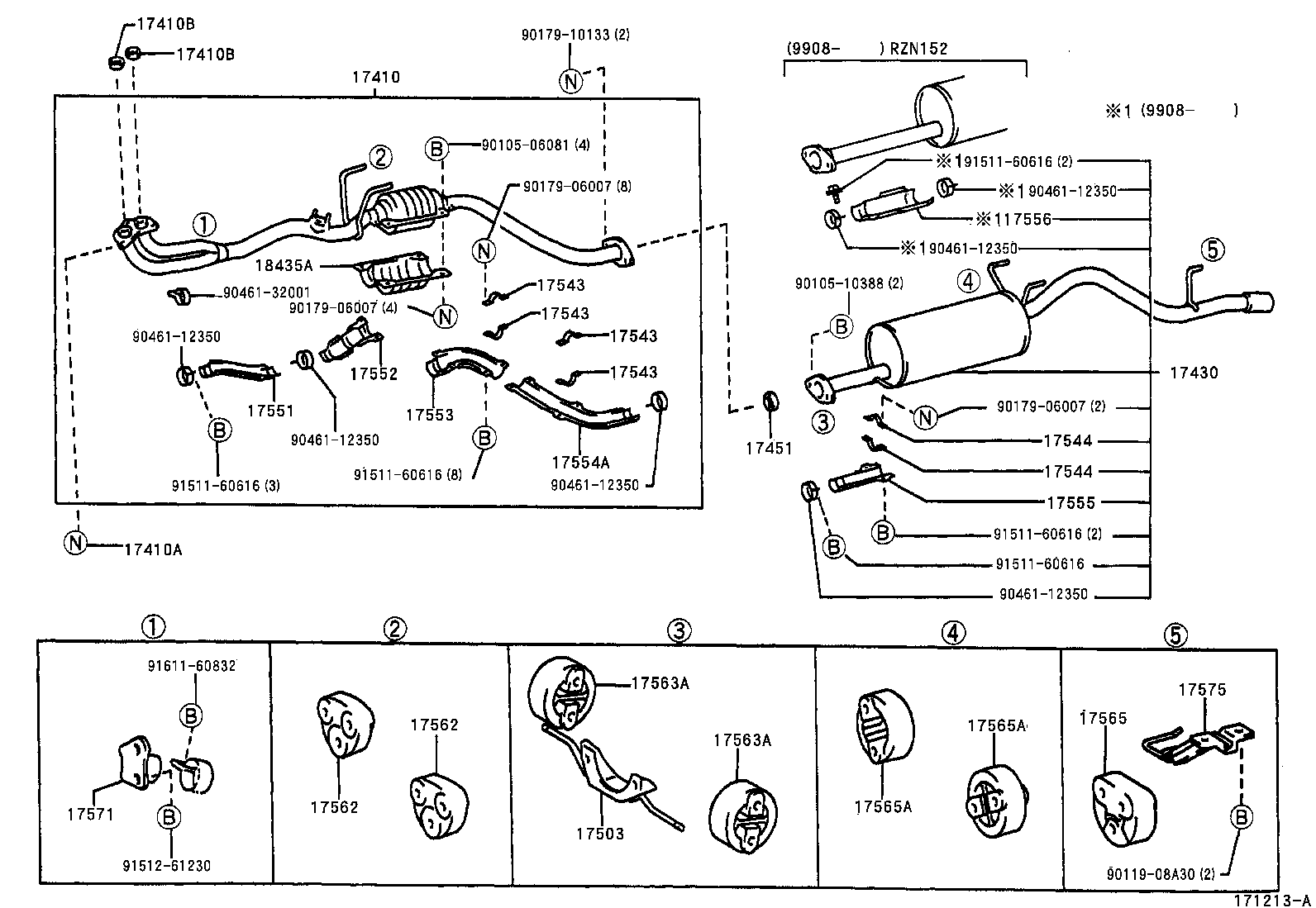

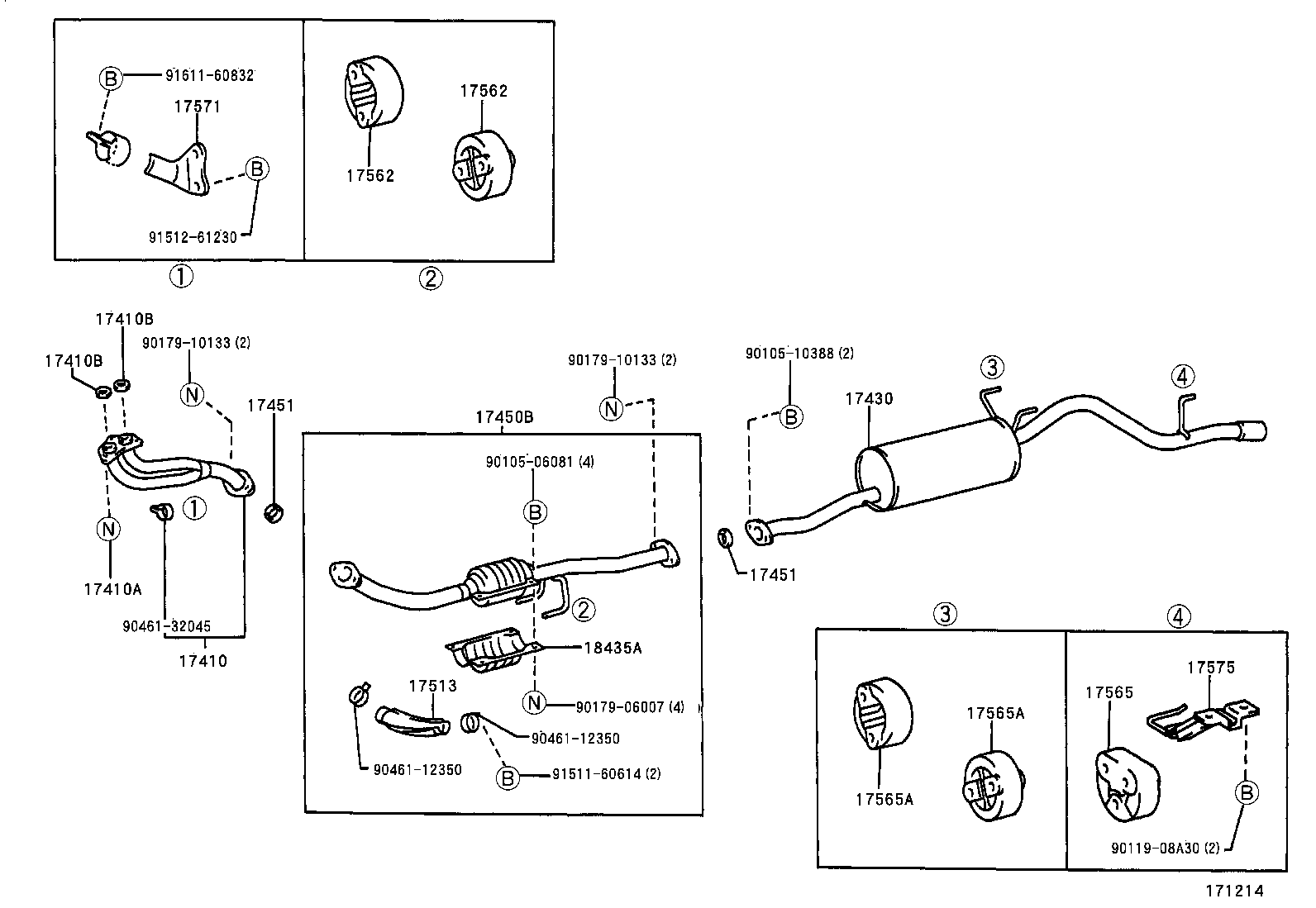

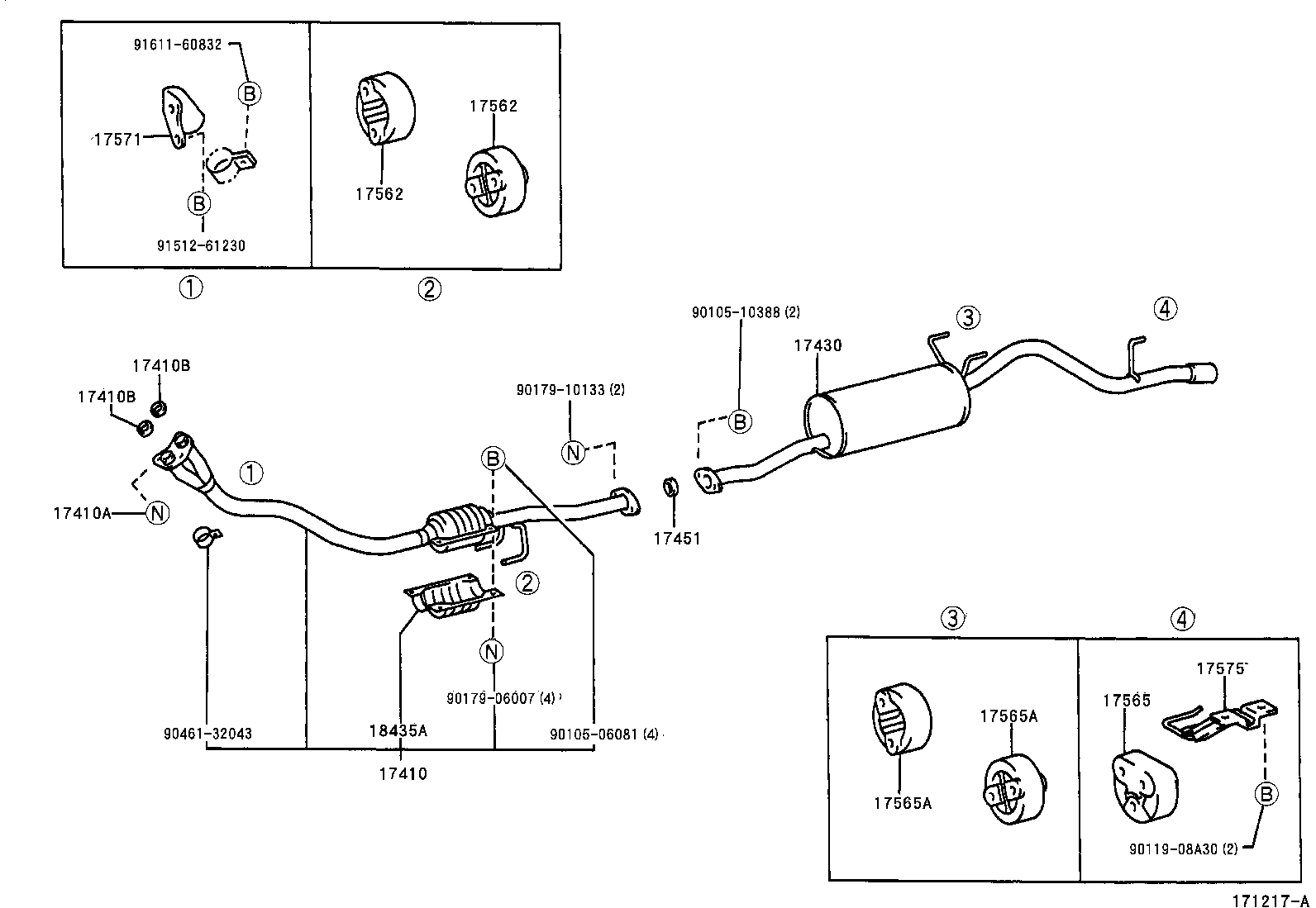

23 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17450B | Pipe Assy, Exhaust, Front NO.2 |
| 17451 | Gasket, Exhaust Pipe |
| 17503 | Bracket Sub-assy, Catalytic Converter, Rear |
| 17513 | Insulator, Exhaust Pipe, Lower NO.1 |
| 17543 | Stay, Exhaust Pipe Protector, NO.3 |
| 17544 | Stay, Exhaust Pipe Protector, NO.4 |
| 17551 | Insulator, Exhaust Pipe Heat, NO.1 |
| 17552 | Insulator, Exhaust Pipe Heat, NO.2 |
| 17553 | Insulator, Exhaust Pipe Heat, NO.3 |
| 17554A | Insulator, Exhaust Pipe Heat, NO.4 |
| 17555 | Insulator, Exhaust Pipe Heat, NO.5 |
| 17556 | Insulator, Exhaust Pipe Heat, NO.6 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
| 18435A | Protector, Monolithic Converter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
