Toyota Hilux

1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 6 illustrations

Illustrations

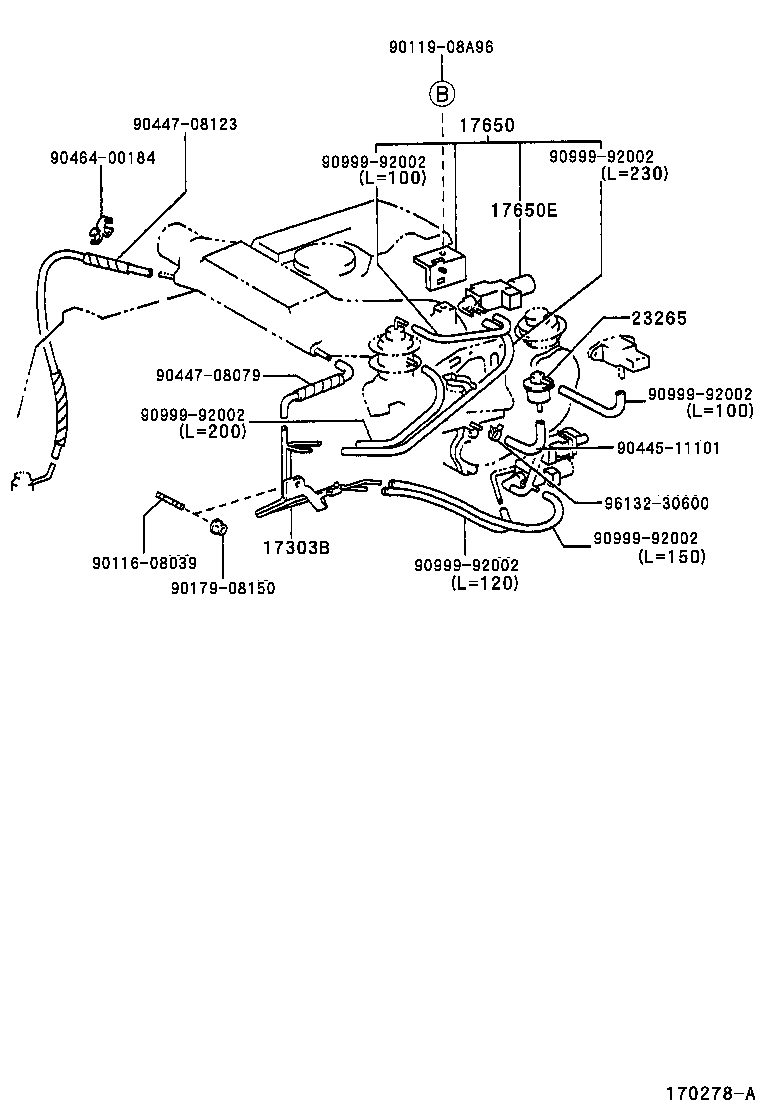

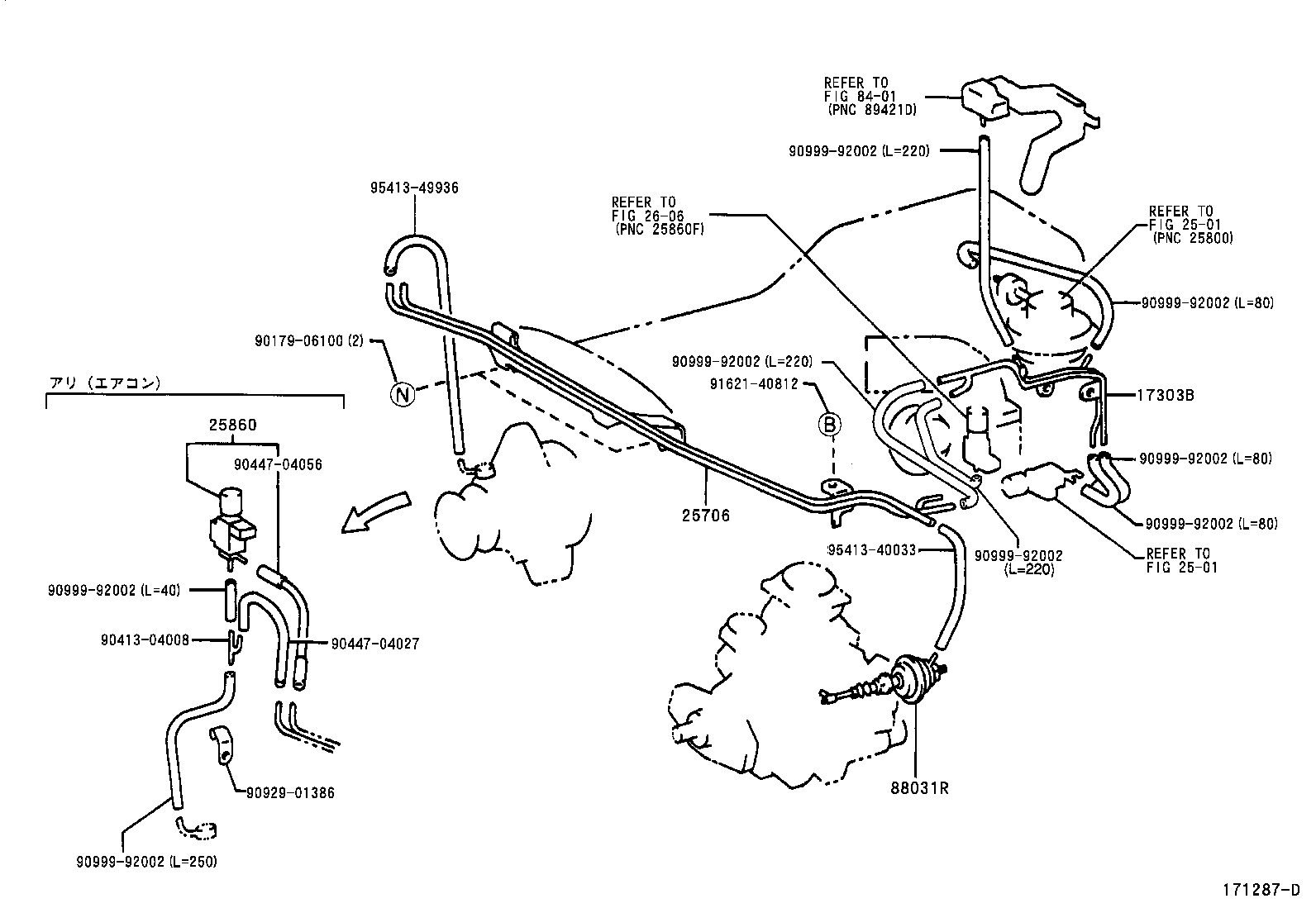

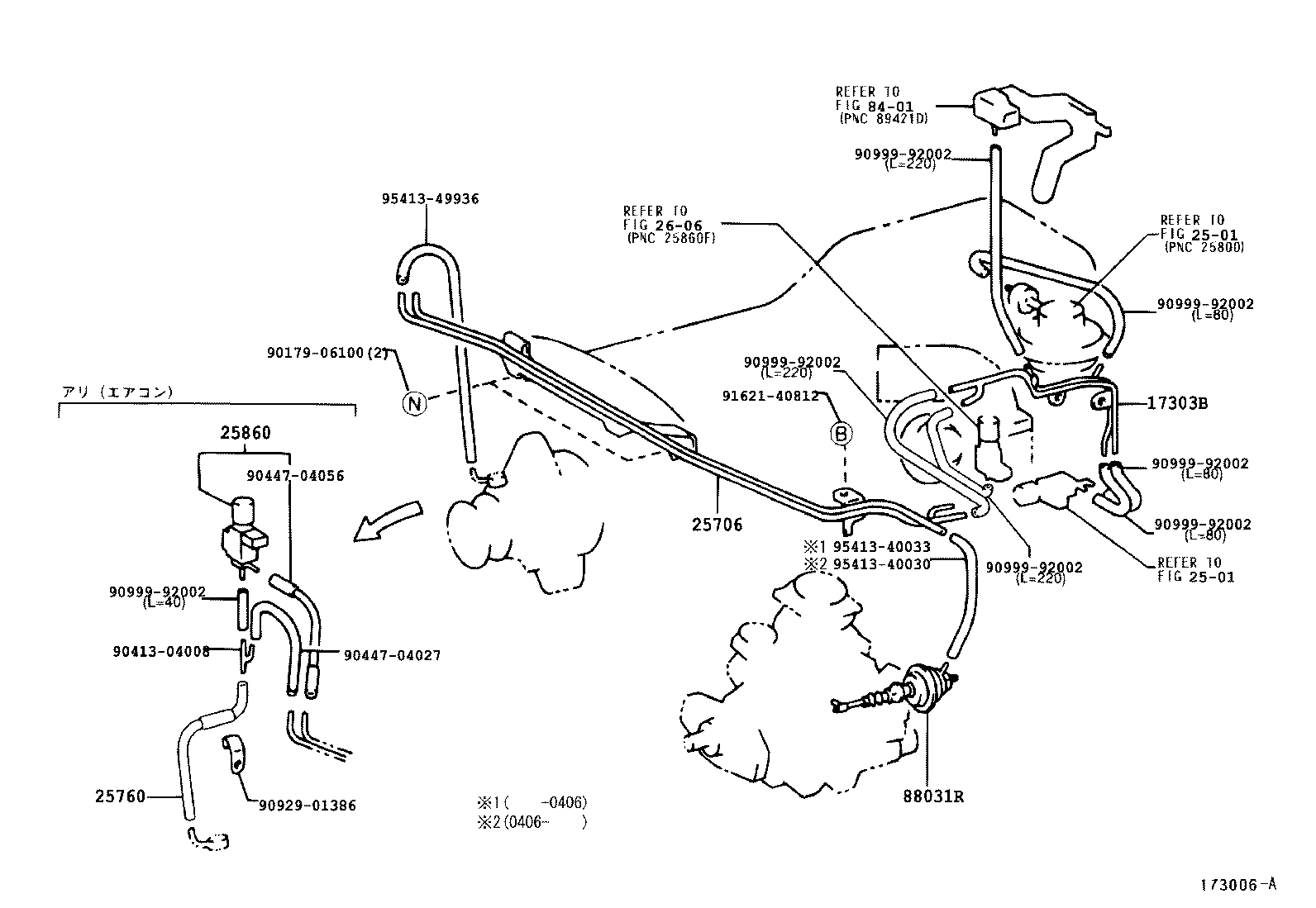

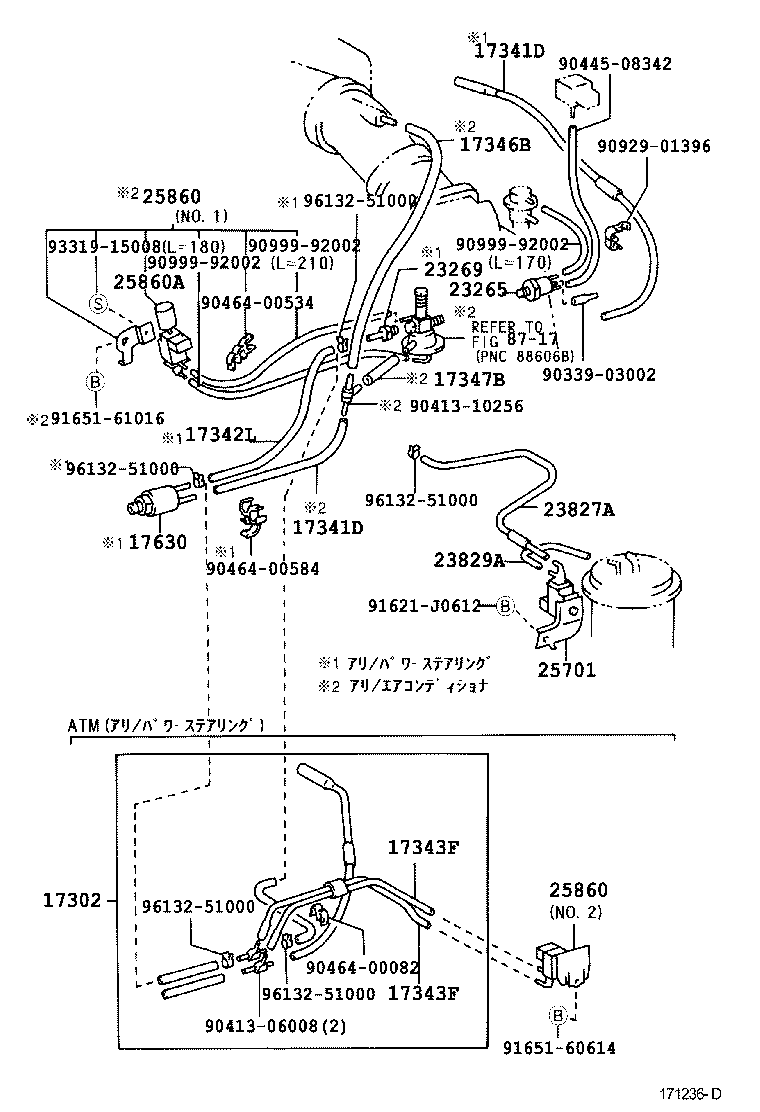

Figure 170020 170020 1997-08 → — Figure 170278A 170278A 1997-08 → 1999-08 Figure 171287D 171287D 1997-08 → 2001-08 Figure 173006A 173006A 2001-08 → — Figure 171236D 171236D 1997-08 → 2003-08 Figure 171265B 171265B 1999-08 → 2003-08

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17342L Hose, Air, NO.2
17343F Hose, Air, NO.3
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17347B Hose, Air, NO.7
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
25701 Valve Set, Emission Control
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
88031R Actuator Set, Idle-up
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
