Toyota Hilux

1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

12 part groups · 2 illustrations

Illustrations

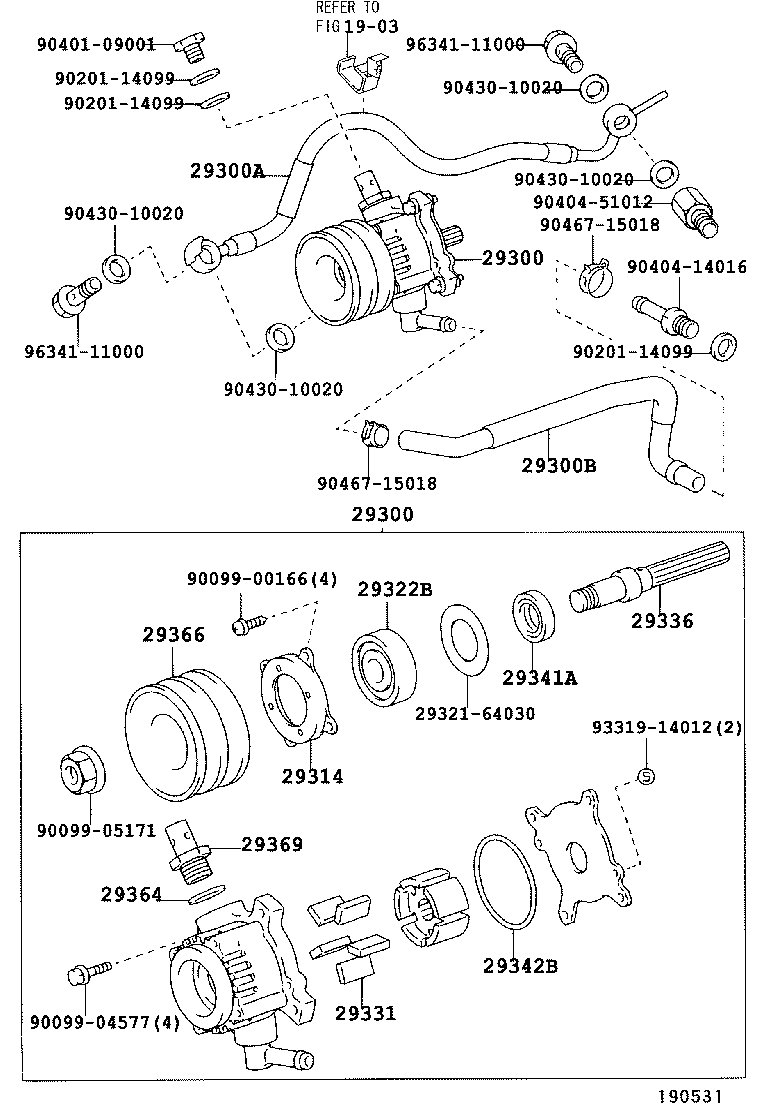

Figure 190530A 190530A 1997-08 → — Figure 190531C 190531C 1997-08 → —

Part groups

PNCDescription
29300 Pump Assy, Vacuum
29300A Hose, Vacuum Pump Oil Inlet
29300B Hose, Vacuum Pump Oil Outlet
29314 Ring, Stop
29322B Bearing, Vacuum Pump
29331 Blade, Vacuum Pump, A
29336 Shaft, Vacuum Pump
29341A Seal, Oil
29342B Ring, O
29364 Washer, Vacuum Pump
29366 Pulley, Vacuum Pump
29369 Valve Sub-assy, Check
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
