Toyota Hilux

1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

13 part groups · 2 illustrations

Illustrations

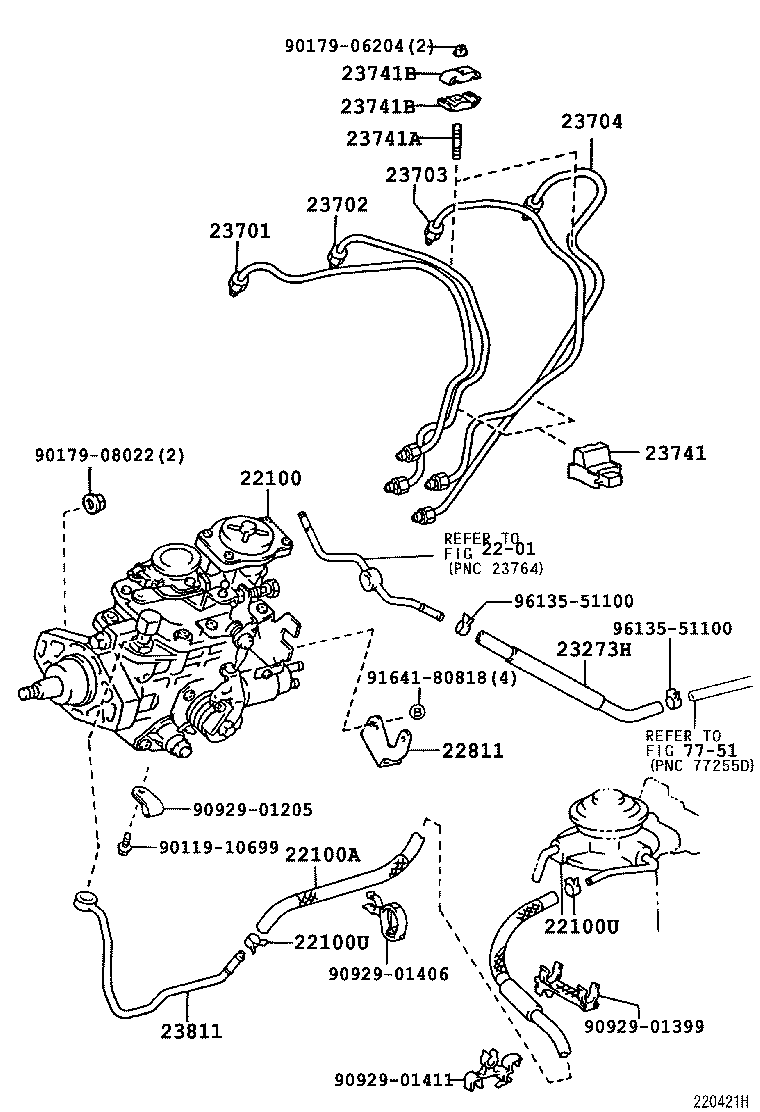

Figure 220422E 220422E 1997-08 → 1999-08 Figure 220421H 220421H 1997-08 → 2004-07

Part groups

PNCDescription
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100U Clip, Hose Fuel(FOR INJECTION PUMP)
22811 Stay, Injection Pump, NO.1
23273H Hose, Fuel, NO.2
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741A Bolt, Stud(FOR INJECTION PIPE CLAMP)
23741B Clamp, Injection Pipe
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
