Toyota Hilux
1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan
Discontinued model
Data version 2005-04
Fuel Injection System

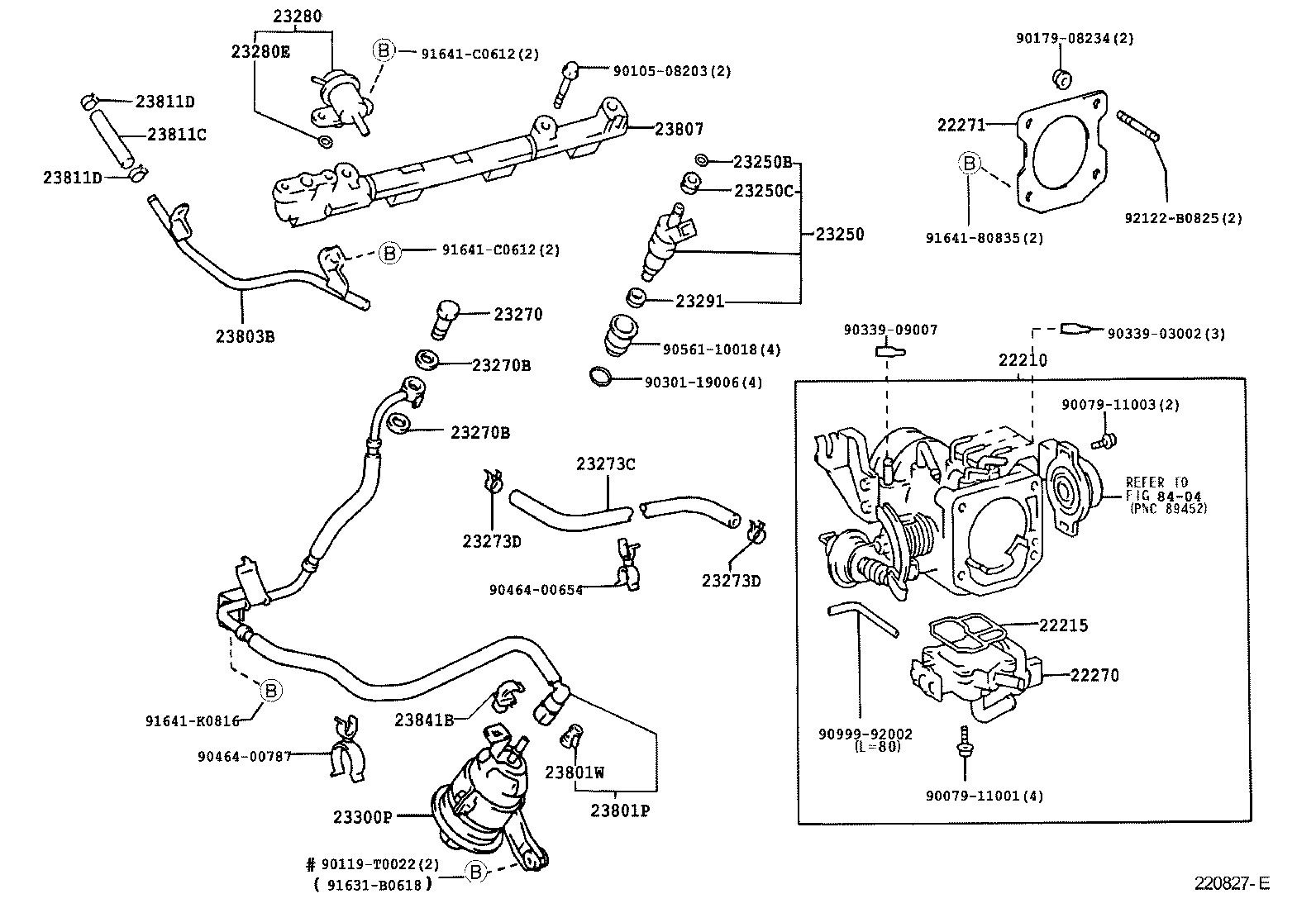

31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 22203 | Dash Pot Sub-assy(FOR THROTTLE BODY) |
| 22210 | Body Assy, Throttle |
| 22215 | Gasket, Throttle Body Cover |
| 22270 | Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) |
| 22271 | Gasket, Throttle Body |
| 23217A | Filter, Fuel Pump |
| 23220P | Pump Assy, Fuel |
| 23229 | Clip(FOR FUEL PUMP FILTER) |
| 23233 | Hose, Fuel Pump |
| 23233B | Clip(FOR FUEL PUMP HOSE) |
| 23249 | Rubber, Cushion(FOR FUEL PUMP) |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23261 | Cover, Injector |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23270B | Gasket(FOR PULSATION DAMPER HOSE) |
| 23273C | Hose, Fuel, NO.2 |
| 23273D | Clip(FOR FUEL HOSE NO.2) |
| 23280 | Regulator Assy, Fuel Pressure |
| 23280E | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23291 | Insulator, Injector Vibration |
| 23300P | Filter, Fuel(FOR EFI) |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23801W | Clip, Fuel Tube Connector |
| 23803B | Pipe Sub-assy, Fuel, NO.3 |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23811C | Hose, Fuel(FOR FUEL PIPE TO PRESSURE REGULATOR) |
| 23811D | Clip, Hose(FOR FUEL HOSE) |
| 23841B | Clamp, Fuel Pipe, NO.1(FOR EFI) |
| 23845C | Insulator, Fuel Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
