Toyota Hilux
1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan
Discontinued model
Data version 2005-04

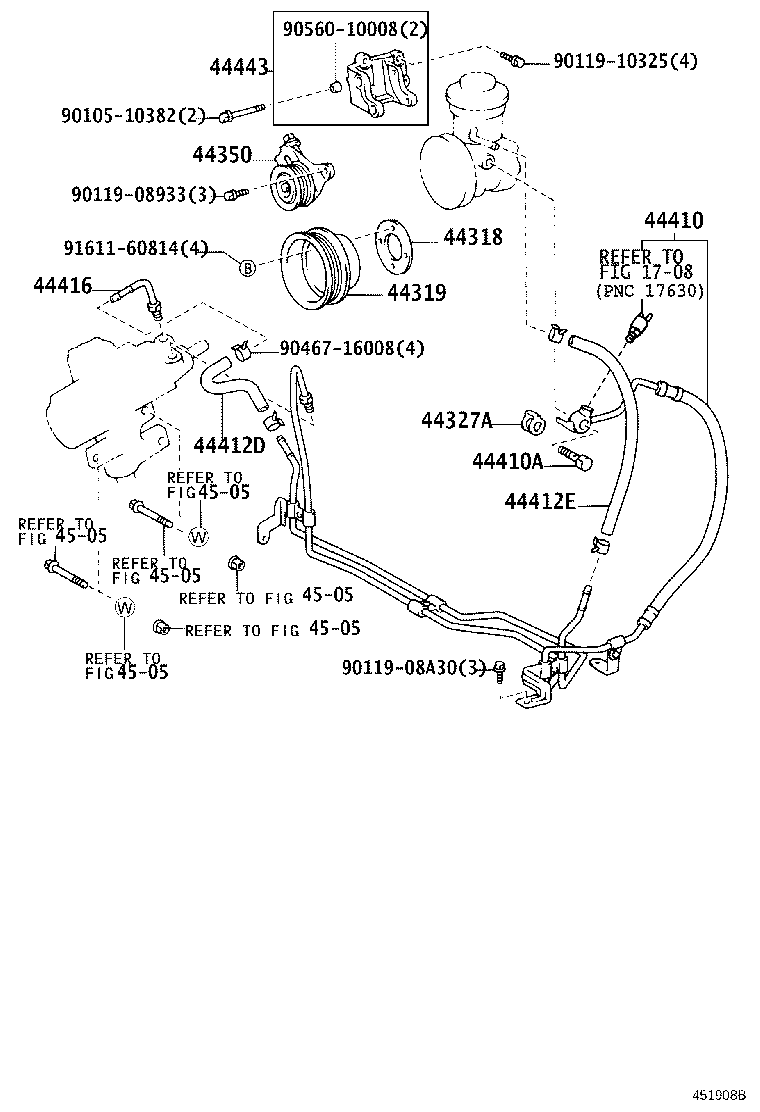

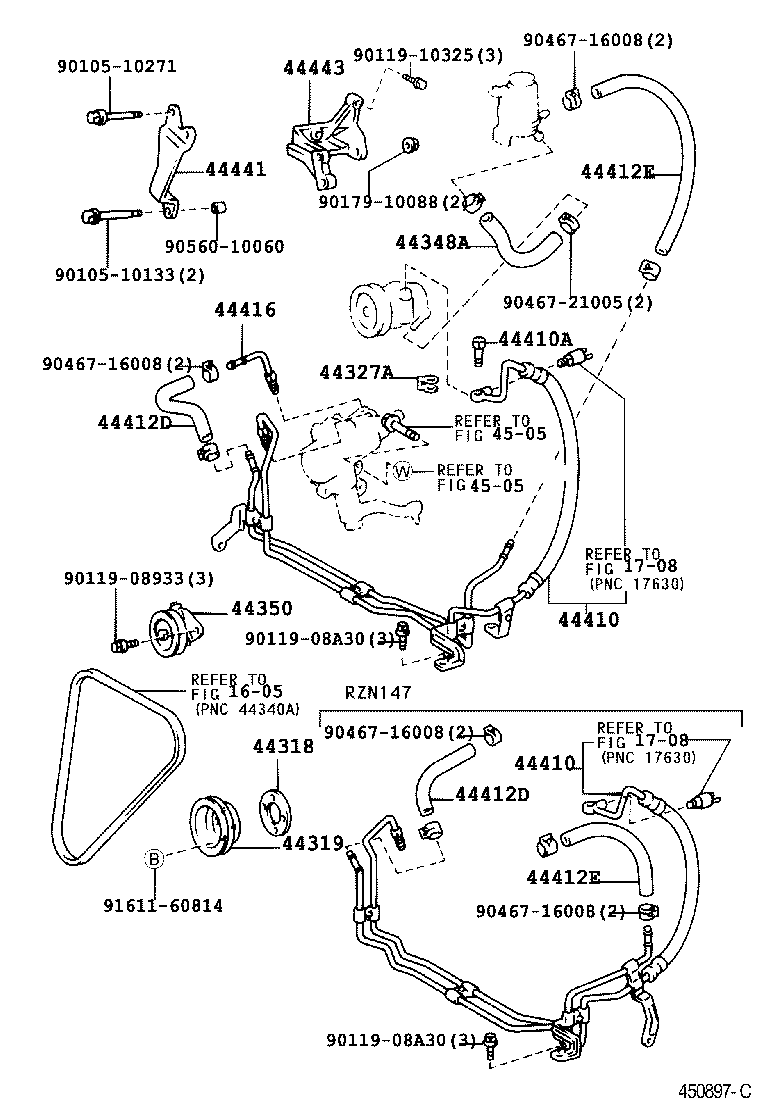

Power Steering Tube
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44318 | Spacer, Vane Pump Drive Pulley |
| 44319 | Pulley, Vane Pump Drive |
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44350 | Pulley Assy, Power Steering Idle |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44411 | Hose, Pressure Feed |
| 44412D | Hose, Return, NO.1 |
| 44412E | Hose, Return, NO.2 |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44441 | Bracket, Pump, Front |
| 44443 | Bracket, Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
