Toyota Hilux
1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan
Discontinued model
Data version 2005-04

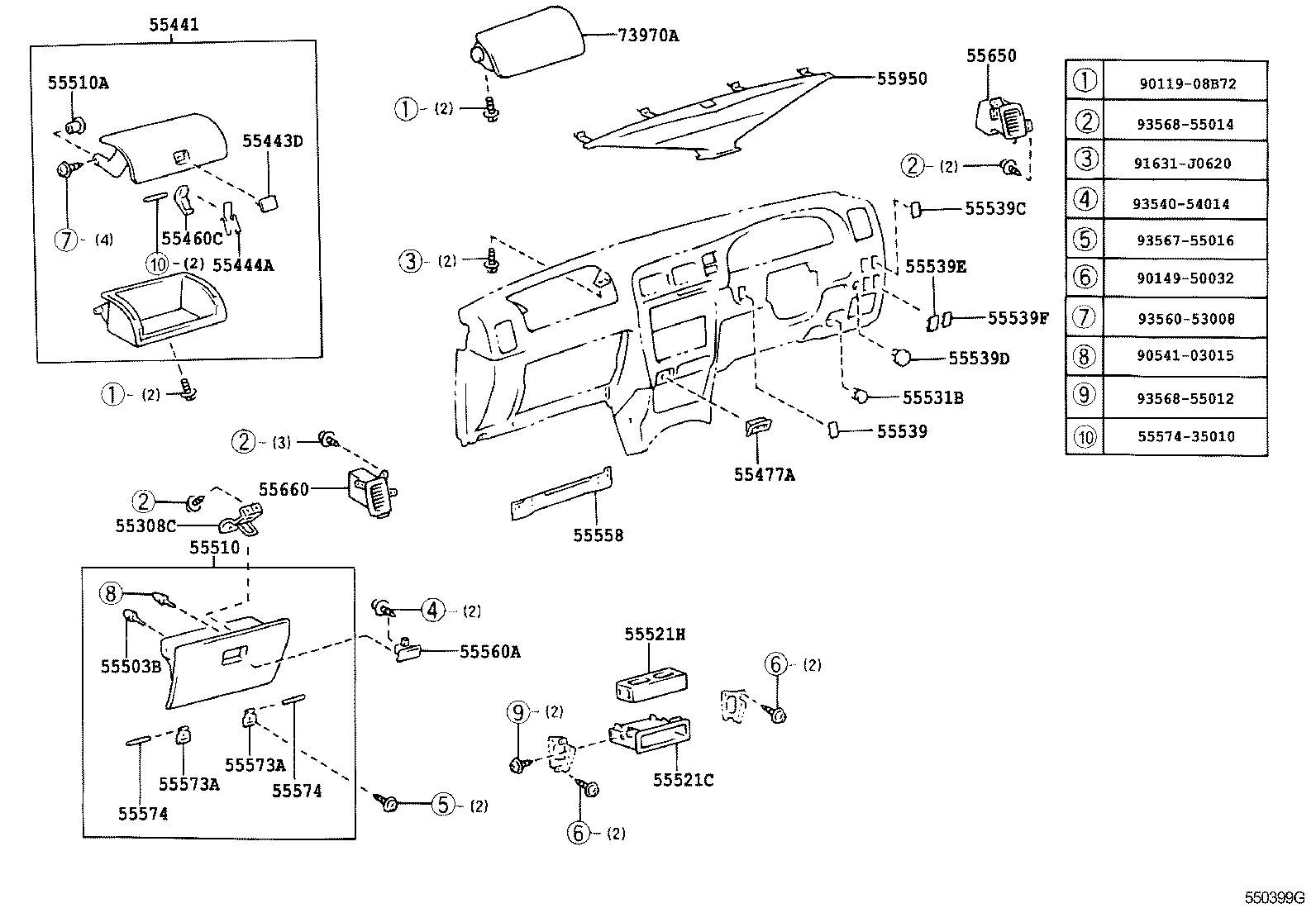

Instrument Panel & Glove Compartment
40 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55331 | Reinforcement, Instrument Panel |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55441 | Box, Instrument Panel |
| 55443D | Knob, Instrument Panel Box Door |
| 55444A | Spring, Instrument Panel Box |
| 55460C | Lock Assy, Instrument Panel Box |
| 55461B | Box, Instrument Panel, Center |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55479B | Cover, Instrument, Lower Center |
| 55479C | Clip(FOR INSTRUMENT LOWER COVER) |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55521C | Cover, Stereo Opening |
| 55521H | Cover Assy, Stereo Opening |
| 55531B | Cover, Choke Knob Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55558 | Reinforcement, Glove Compartment Door |
| 55560A | Lock Assy, Glove Compartment Door |
| 55573A | Hinge, Glove Compartment Door |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55950 | Nozzle Assy, Defroster |
| 61181 | Bracket, Instrument Panel Side |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
