Toyota Hilux
1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan
Discontinued model
Data version 2005-04

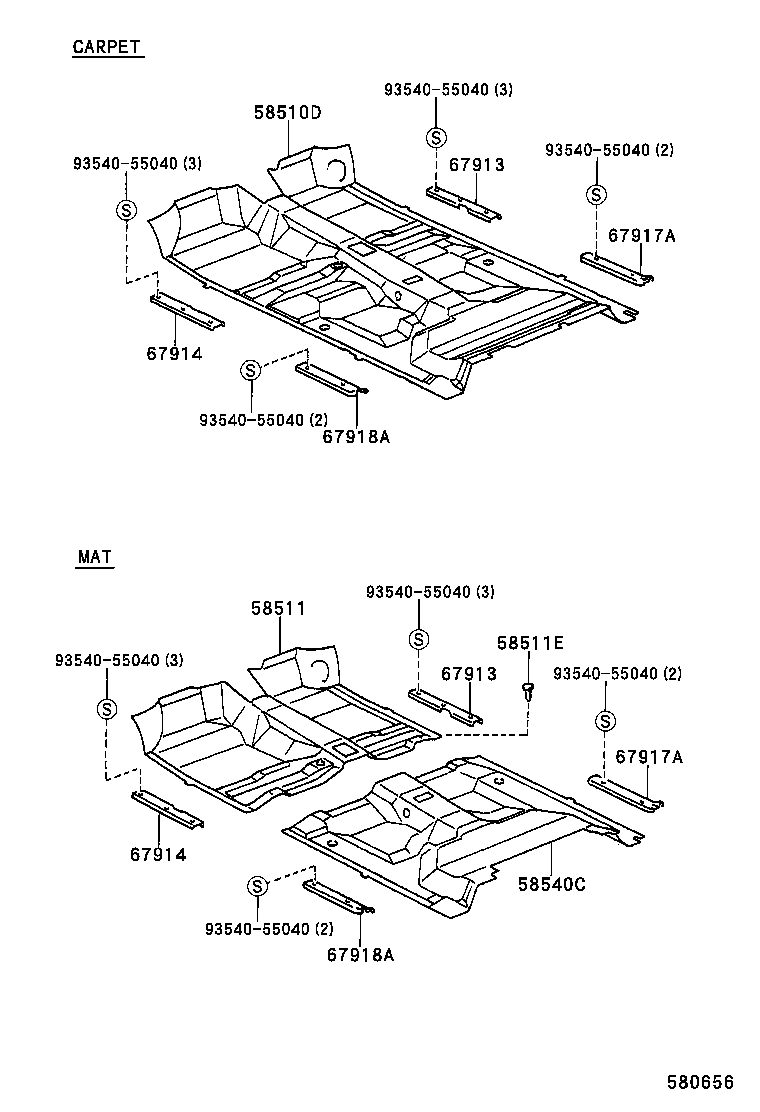

Floor Mat & Silencer Pad
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510D | Carpet Assy, Floor, Front |
| 58511 | Mat, Floor, Front |
| 58511E | Clip(FOR FRONT FLOOR MAT) |
| 58540C | Mat Assy, Floor, Rear |
| 58540E | Mat Assy, Floor, Rear RH |
| 58550B | Mat Assy, Floor, Rear LH |
| 58560B | Clip(FOR FLOOR CARPET, REAR) |
| 58570C | Carpet Assy, Rear Floor |
| 58577D | Plate, Rear Floor Mat Support Side, RH |
| 58578A | Plate, Rear Floor Mat Support Side, LH |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
