Toyota Hilux
1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan
Discontinued model
Data version 2005-04
Roof Panel & Back Panel
50 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

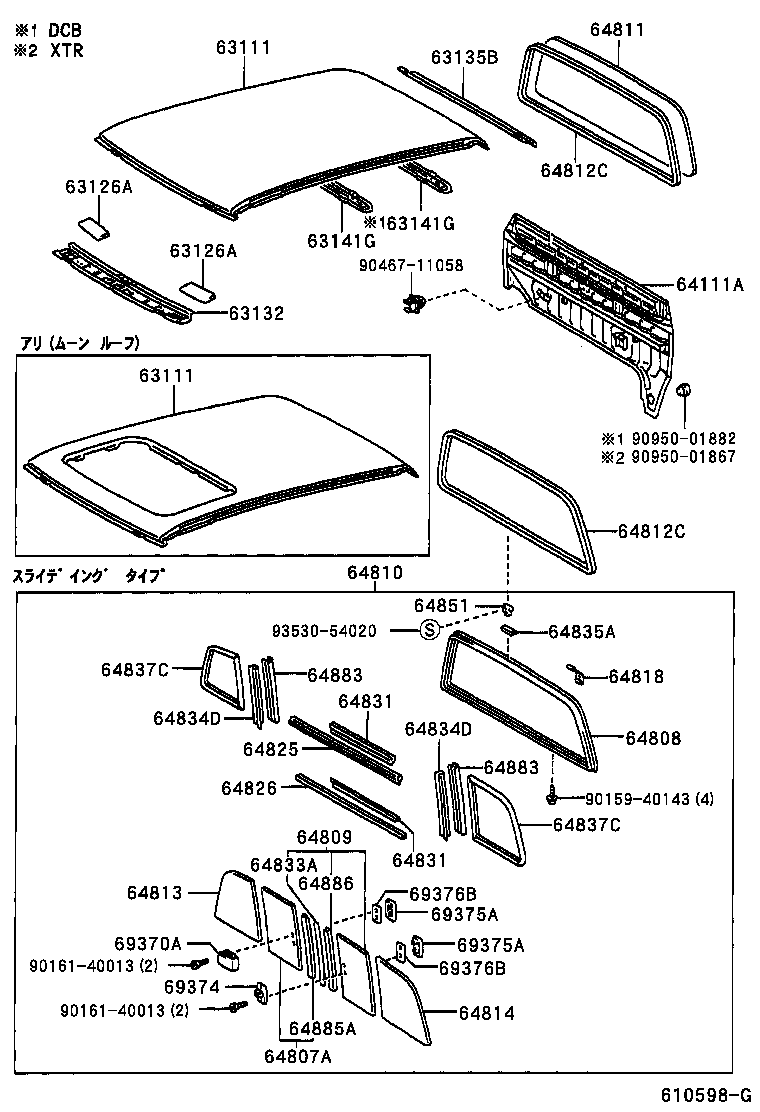

| 63111 | Panel, Roof |
| 63126A | Damper, Windshield Header Panel |
| 63132 | Panel, Windshield Header, Inner |
| 63135B | Panel, Back Window, Upper Inner |
| 63141G | Reinforcement, Roof Panel, NO.1 |

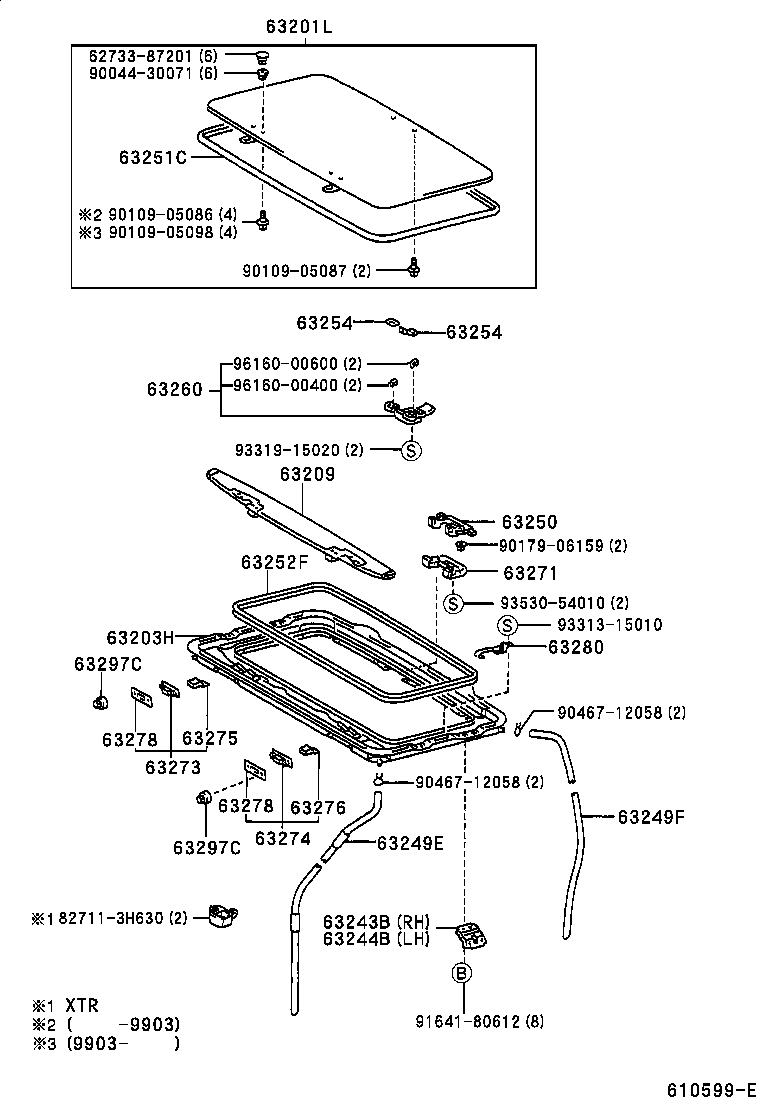

| 63201L | Glass Sub-assy, Removable Roof |
| 63203H | Housing Sub-assy, Removable Roof |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63243B | Bracket, Removable Roof Housing Side Mounting, RH |
| 63244B | Bracket, Removable Roof Housing Side Mounting, LH |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63250 | Base Assy, Removable Roof Lock |
| 63251C | Weatherstrip, Removable Roof |
| 63252F | Weatherstrip, Removable Roof, Inner |
| 63254 | Holder, Removable Roof Glass, Inner Rear |
| 63260 | Handle Assy, Removable Roof Lock |
| 63271 | Garnish, Removable Roof Lock |
| 63273 | Case, Removable Roof Hinge, RH |
| 63274 | Case, Removable Roof Hinge, LH |
| 63275 | Holder, Removable Roof Hinge, RH |
| 63276 | Holder, Removable Roof Hinge, LH |
| 63278 | Seal, Removable Roof Hinge Case |
| 63280 | Catch Assy, Removable Roof Auxiliary, LH |
| 63297C | Bolt, Removable Roof Hinge Case |
| 64111A | Panel, Back |
| 64807A | Glass Sub-assy, Back Window Slide, RH |
| 64808 | Channel Sub-assy, Back Window Slide Glass |
| 64809 | Glass Sub-assy, Back Window Slide, LH |
| 64810 | Window Assy, Back |
| 64811 | Glass, Back Window |
| 64812C | Weatherstrip, Back Window Glass |
| 64813 | Glass, Back Window Corner, RH |
| 64814 | Glass, Back Window Corner, LH |
| 64818 | Spacer, Back Window Glass |
| 64825 | Run, Back Window Channel, Upper |
| 64826 | Run, Back Window Channel, Lower |
| 64831 | Weatherstrip, Back Window Glass |
| 64833A | Weatherstrip, Back Window Center Channel |
| 64834D | Weatherstrip, Back Window Slide Glass |
| 64835A | Weatherstrip, Back Window Glass, Center |
| 64837C | Weatherstrip, Back Window Corner Glass |
| 64851 | Stop, Back Window Slide Glass |
| 64883 | Frame, Back Window |
| 64885A | Channel, Back Window Glass, RH |
| 64886 | Channel, Back Window Glass, LH |
| 69370A | Lock Assy, Back Window |
| 69374 | Catch, Back Window Lock |
| 69375A | Retainer, Back Window Lock |
| 69376B | Packing, Back Window Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
