Toyota Hilux

1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

10 part groups · 2 illustrations

Illustrations

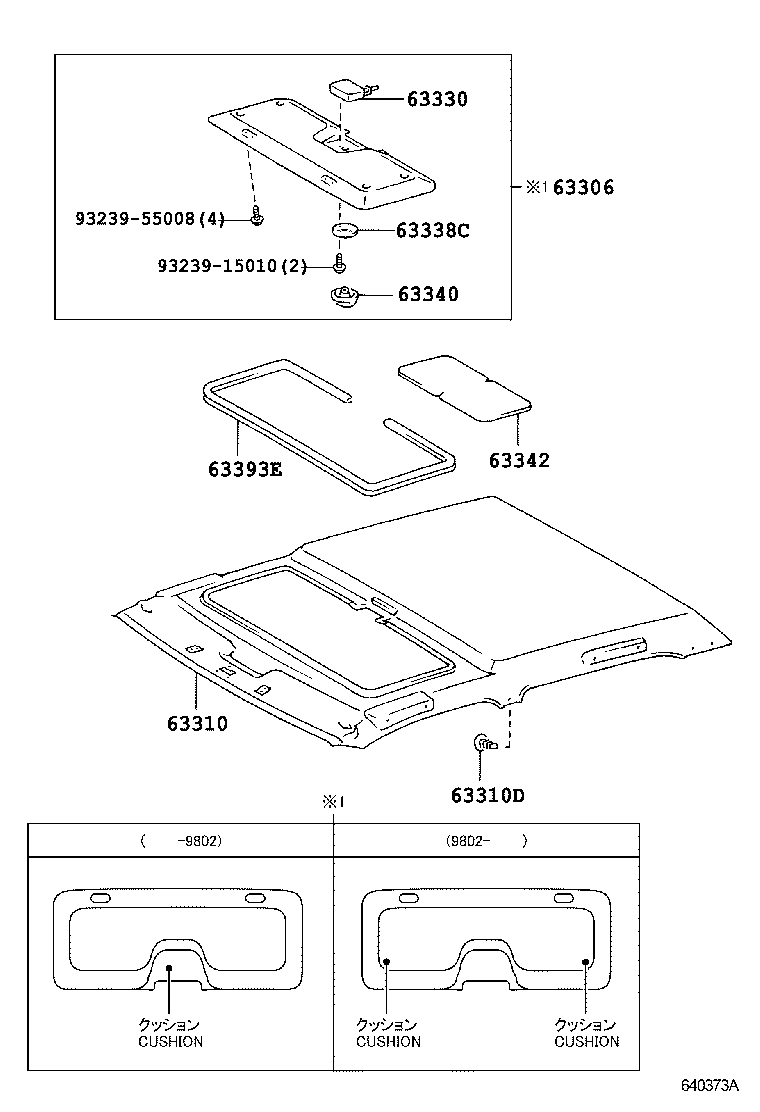

Figure 640372A 640372A 1997-08 → — Figure 640373A 640373A 1997-08 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63330 Lock Assy, Sunshade Trim
63338C Stopper, Sunshade Lock, NO.2
63340 Handle Assy, Sunshade Trim Lock
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63351B Pad, Roof Headlining
63393E Trim, Roof Headlining
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
