Toyota Hilux

1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

22 part groups · 3 illustrations

Illustrations

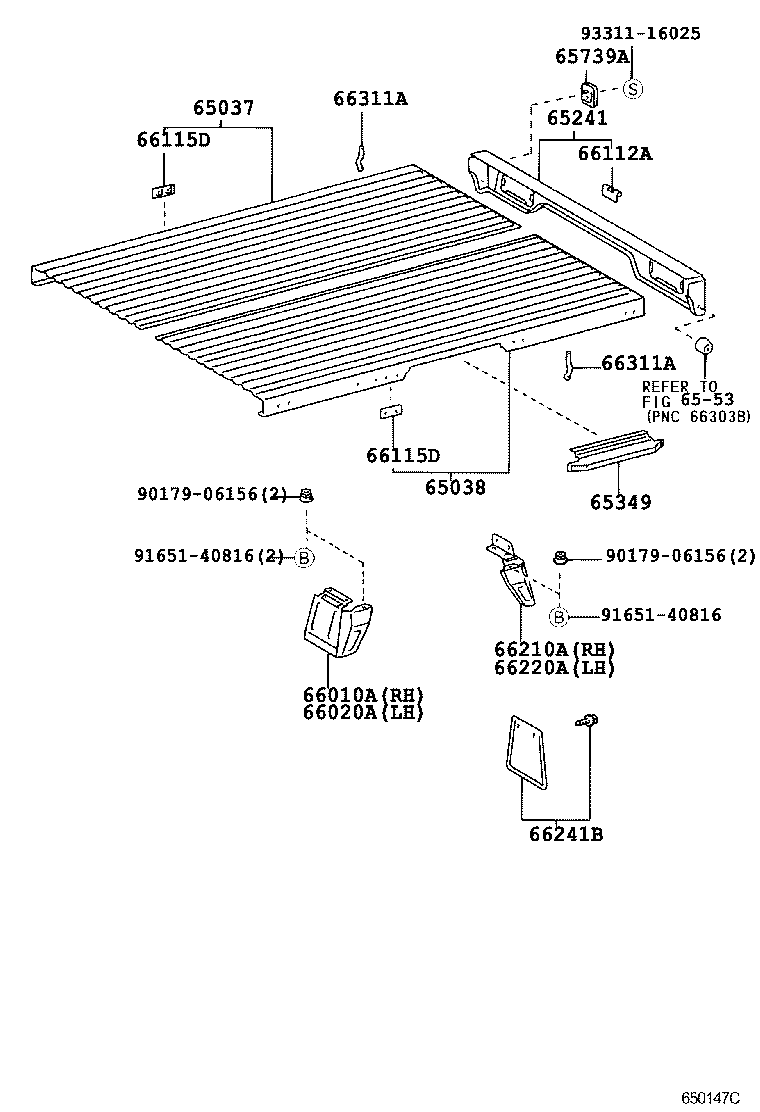

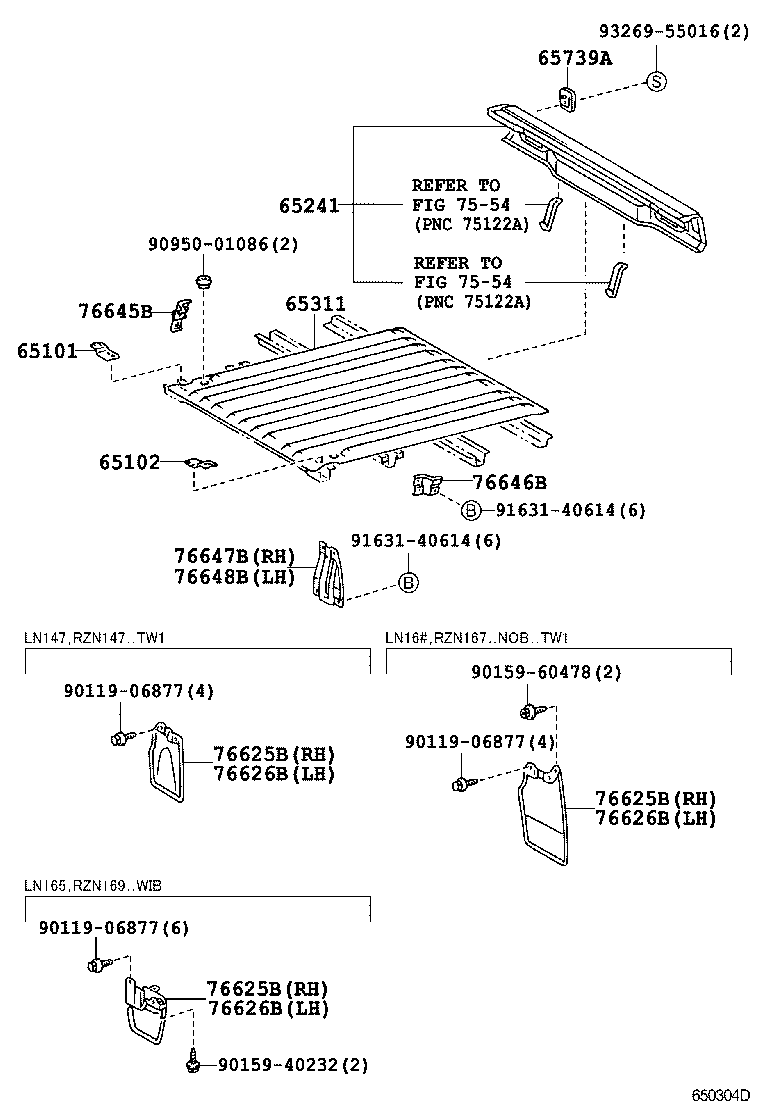

Figure 650146I 650146I 1997-08 → — Figure 650147C 650147C 1997-08 → — Figure 650304D 650304D 1997-08 → —

Part groups

PNCDescription
65037 Panel Sub-assy, Floor Side, RH
65038 Panel Sub-assy, Floor Side, LH
65101 Bracket Sub-assy, Main Sill Mounting, NO.1
65102 Bracket Sub-assy, Main Sill Mounting, NO.2
65241 Sill, Rear Cross
65311 Panel, Floor, Center
65349 Fender, Floor Side
65739A Bumper, Tail Gate
66010A Fender Assy, Rear NO.2 RH
66020A Fender Assy, Rear NO.2 LH
66112A Hinge, Gate Female
66115D Retainer, Gate Hinge
66210A Fender Assy, Rear NO.1 RH
66220A Fender Assy, Rear NO.1 LH
66241B Baffle, Rubber
66311A Hook, Rope, NO.1
76625B Mudguard, Rear Body, RH
76626B Mudguard, Rear Body, LH
76645B Bracket, Rear Body Mudguard, RH
76646B Bracket, Rear Body Mudguard, LH
76647B Support, Rear Body Mudguard, RH
76648B Support, Rear Body Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
