Toyota Hilux
1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan
Discontinued model
Data version 2005-04

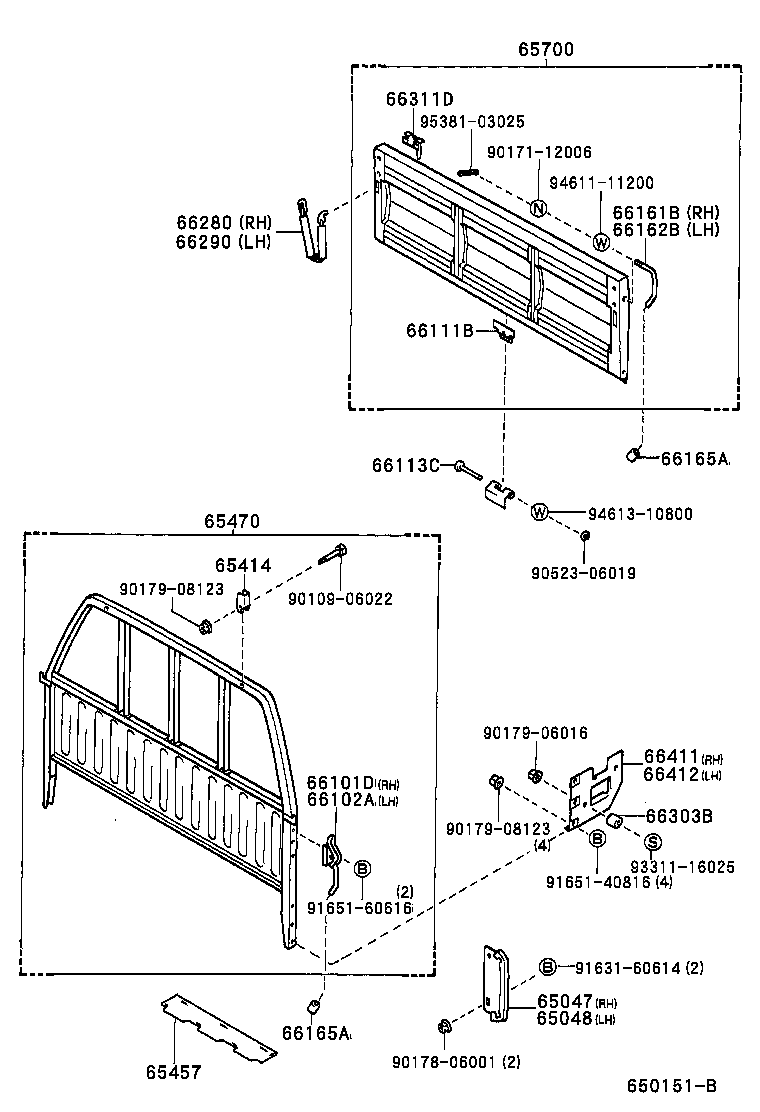

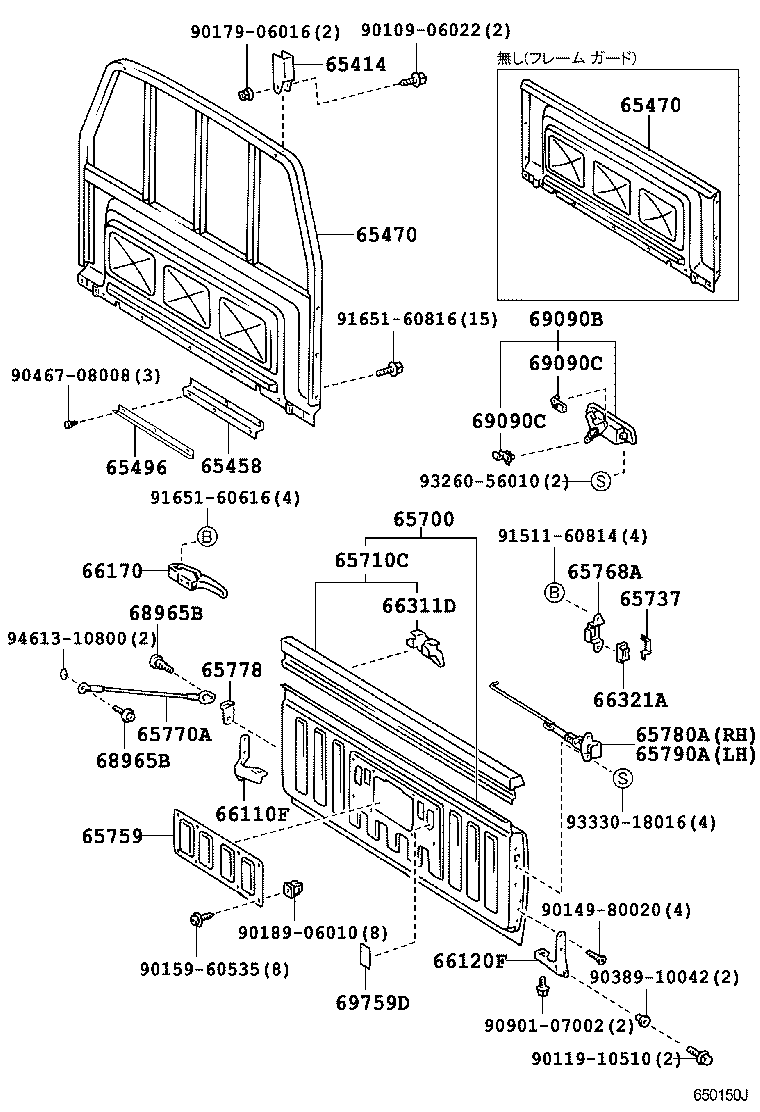

Rear Body Guard Frame & Tail Gate
46 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 65047 | Protector Sub-assy, Guard Frame, RH |
| 65048 | Protector Sub-assy, Guard Frame, LH |
| 65414 | Stopper, Guard Frame |
| 65426A | Plate, Rear Body Guard, RH |
| 65427A | Plate, Rear Body Guard, LH |
| 65457 | Plate, Baffle Dust Rear Body |
| 65458 | Plate, Baffle Duct Rear Body, LH |
| 65470 | Board Assy, Header |
| 65496 | Seal, Rear Body Guard Frame, NO.4 |
| 65700 | Gate Assy, Rear Body Tail |
| 65710C | Rail Assy, Tail Gate Top |
| 65737 | Stop, Tail Gate |
| 65759 | Cover, Tail Gate Service Hole |
| 65768A | Striker, Tail Gate Lock |
| 65770A | Stay Assy, Tail Gate |
| 65778 | Stopper, Tail Gate Stay |
| 65780A | Lock Assy, Tail Gate, RH |
| 65790A | Lock Assy, Tail Gate, LH |
| 66101D | Latch Sub-assy, Gate |
| 66102A | Latch Sub-assy, Gate |
| 66110F | Hinge Assy, Tail Gate, RH |
| 66111B | Hinge, Tail Gate Male |
| 66113C | Pin, Gate Hinge |
| 66120F | Hinge Assy, Tail Gate, LH |
| 66161B | Handle, Tail Gate Latch, RH |
| 66162B | Handle, Tail Gate Latch, LH |
| 66165A | Cap, Gate Latch Handle |
| 66170 | Latch Assy, Rear Body Tail Gate |
| 66280 | Chain Assy, Tail Gate, RH |
| 66290 | Chain Assy, Tail Gate, LH |
| 66303B | Cushion Sub-assy, Rubber |
| 66311D | Hook, Rope |
| 66321A | Bumper, Gate Rubber |
| 66411 | Bracket, Guard Frame, RH |
| 66412 | Bracket, Guard Frame, LH |
| 68965B | Shaft, Tail Gate Stay |
| 69090B | Handle Assy, Tail Gate |
| 69090C | Snap, Tail Gate Handle |
| 69759D | Silencer, Tail Gate Lock Link |
| 76085B | Spoiler Sub-assy, Rear |
| 76791A | Bracket, Rear Spoiler, NO.1 RH |
| 76792A | Bracket, Rear Spoiler, NO.1 LH |
| 76793A | Bracket, Rear Spoiler, NO.2 RH |
| 76794A | Bracket, Rear Spoiler, NO.2 LH |
| 76893C | Cover, Rear Spoiler, RH |
| 76894C | Cover, Rear Spoiler, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
