Toyota Hilux

1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

13 part groups · 3 illustrations

Illustrations

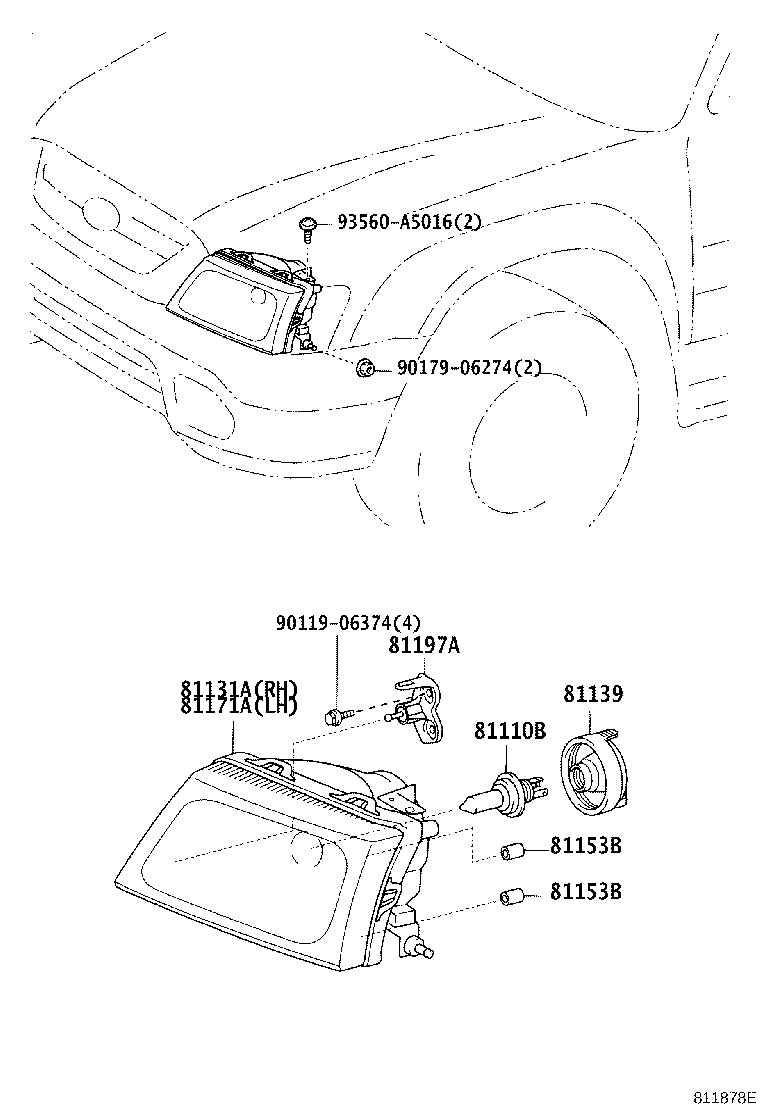

Figure 810666H 810666H 1997-08 → 2001-08 Figure 810666H 810666H 2001-08 → — Figure 811878E 811878E 2001-08 → —

Part groups

PNCDescription
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111A Ring, Sealed Beam Retaining, NO.1 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81131A Unit, Headlamp, RH
81139 Cover, Headlamp Socket
81151A Ring, Sealed Beam Retaining, NO.1 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81153B Bearing, Headlamp
81171A Unit, Headlamp, LH
81195 Screw, Headlamp
81197A Gear, Headlamp Aiming
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
