Toyota Hilux

1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan

Discontinued model Data version 2005-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

10 part groups · 3 illustrations

Illustrations

Figure 871799F

871799F 1997-08 → 2001-08

Figure 871800A

871800A 1997-08 → —

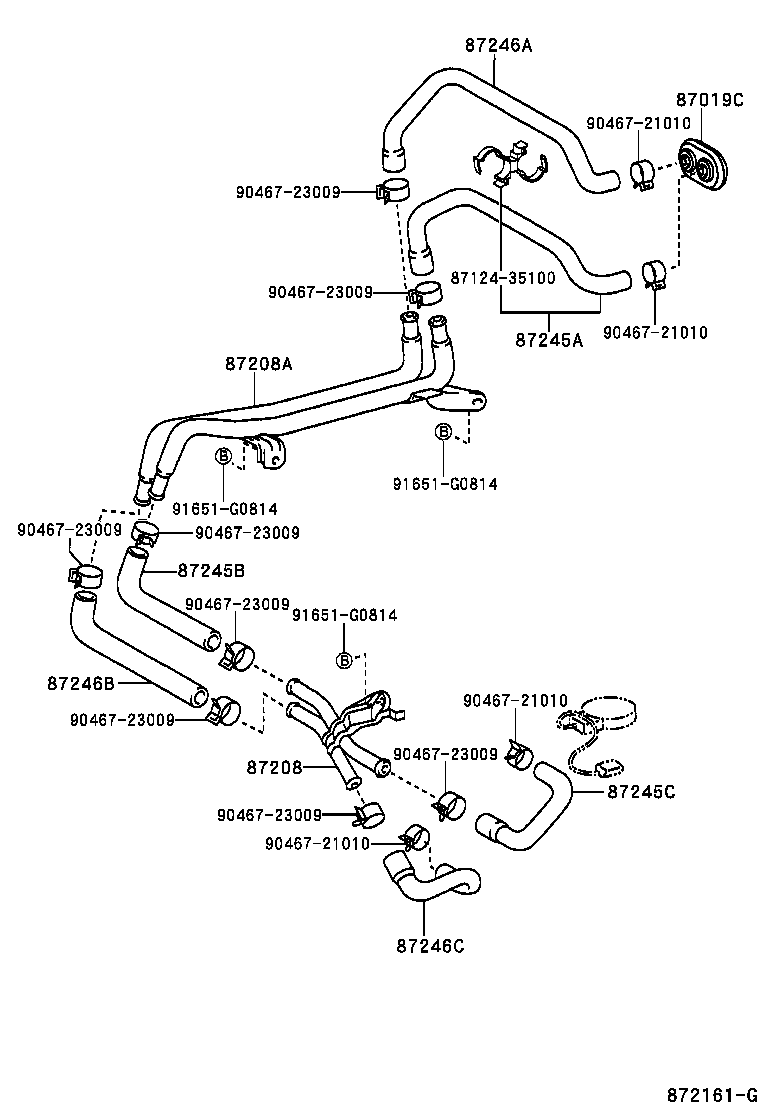

Figure 872161G

872161G 2001-08 → —

Part groups

PNC	Description
87019C	Grommet, Heater Hose
87208	Pipe Sub-assy, Heater Water
87208A	Pipe Sub-assy, Heater Water, A
87209	Hose Sub-assy, Water
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
