Toyota Hilux

1997-08 → 2004-07 · chassis LN147,16#,17#,RZN147,152,16#,174 · catalogue 672160 · Japan

Discontinued model Data version 2005-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

26 part groups · 10 illustrations

Illustrations

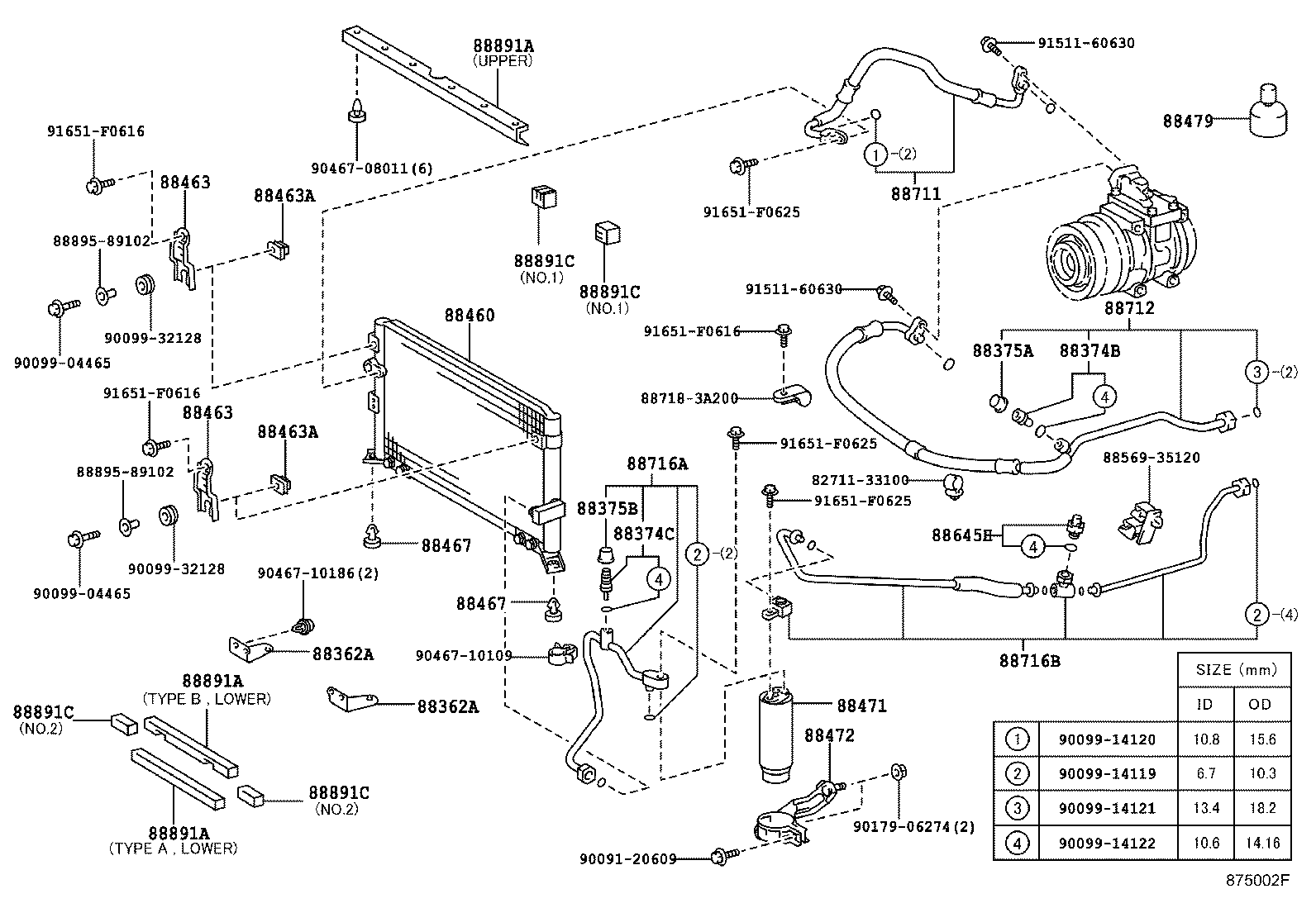

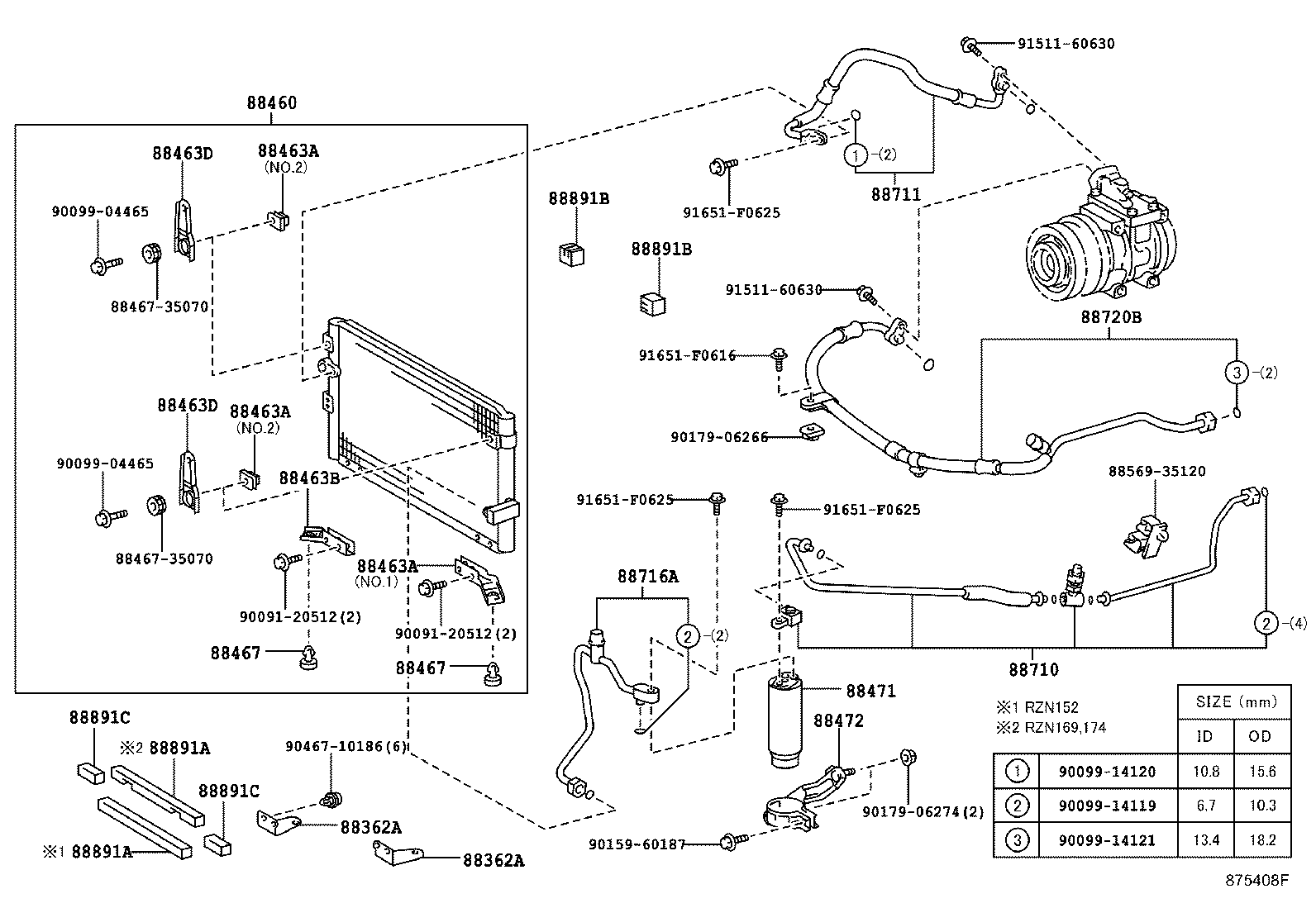

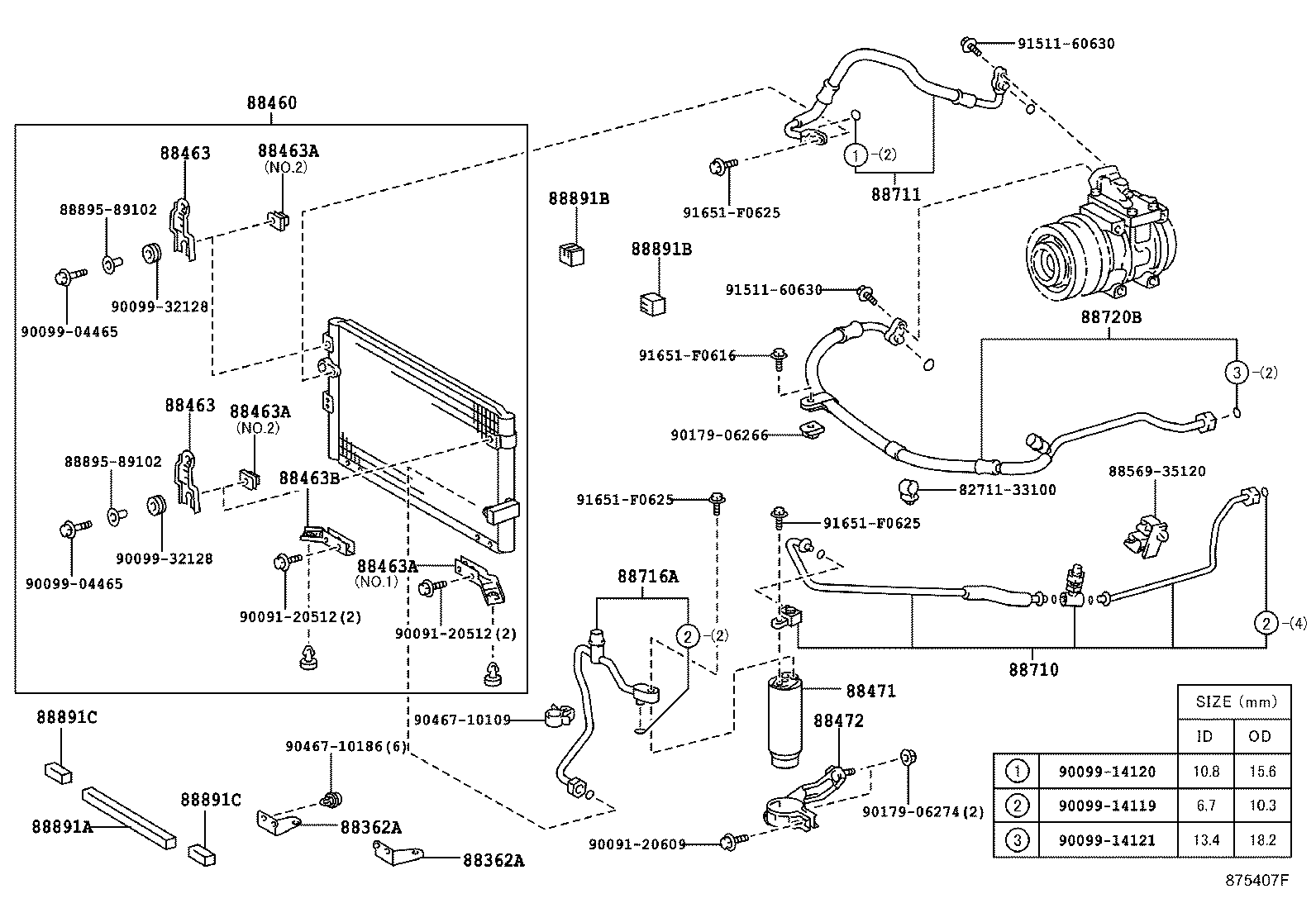

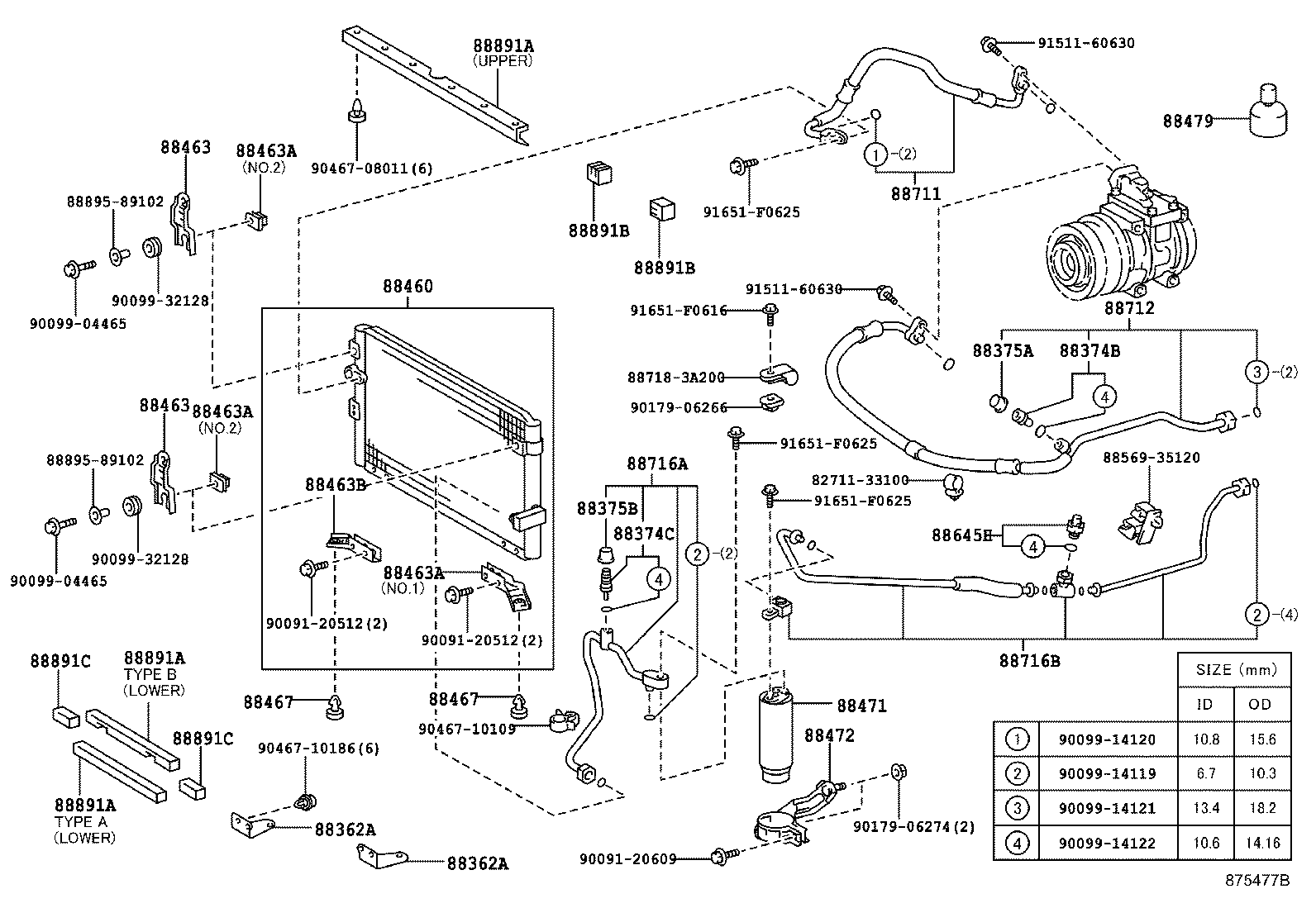

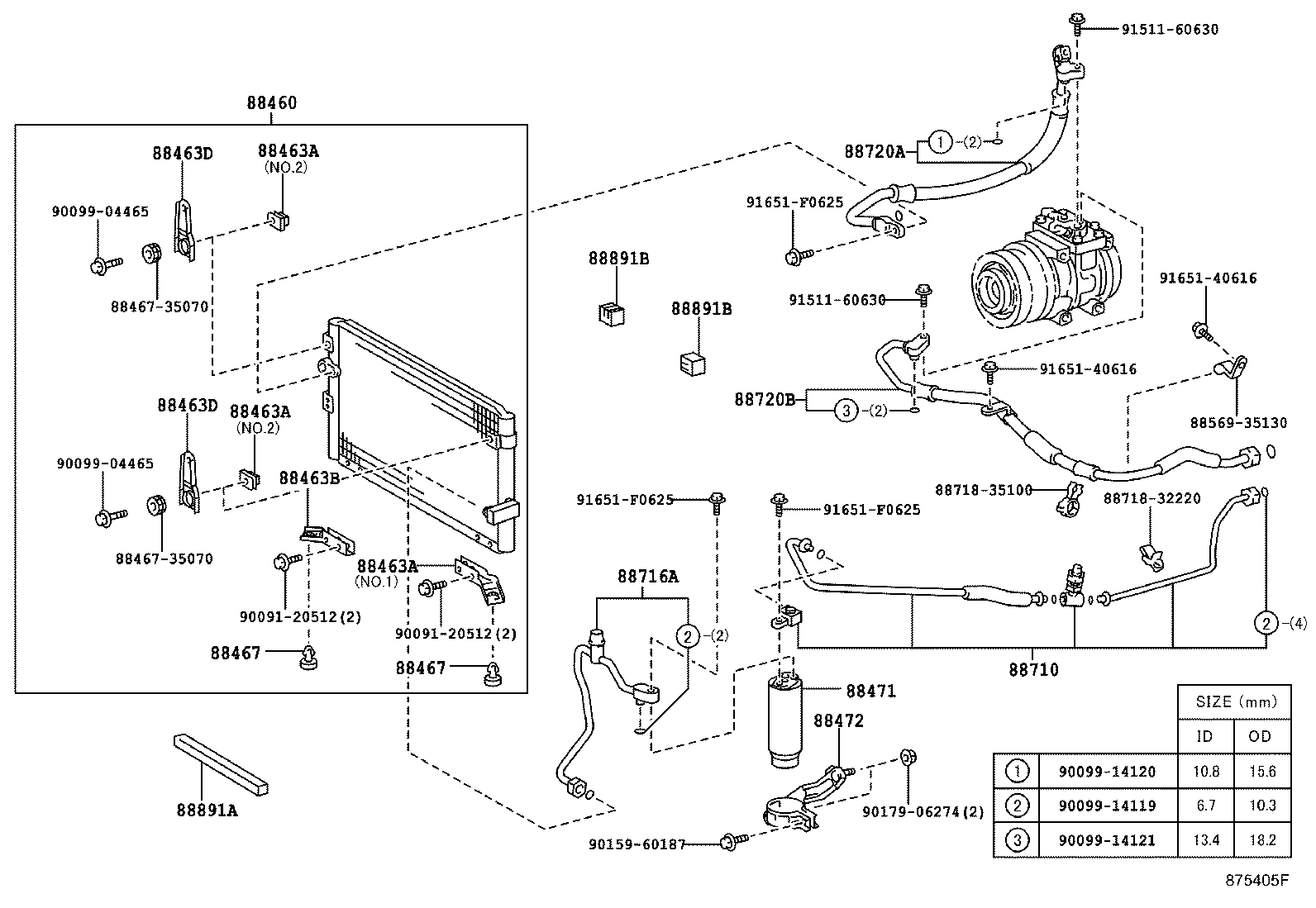

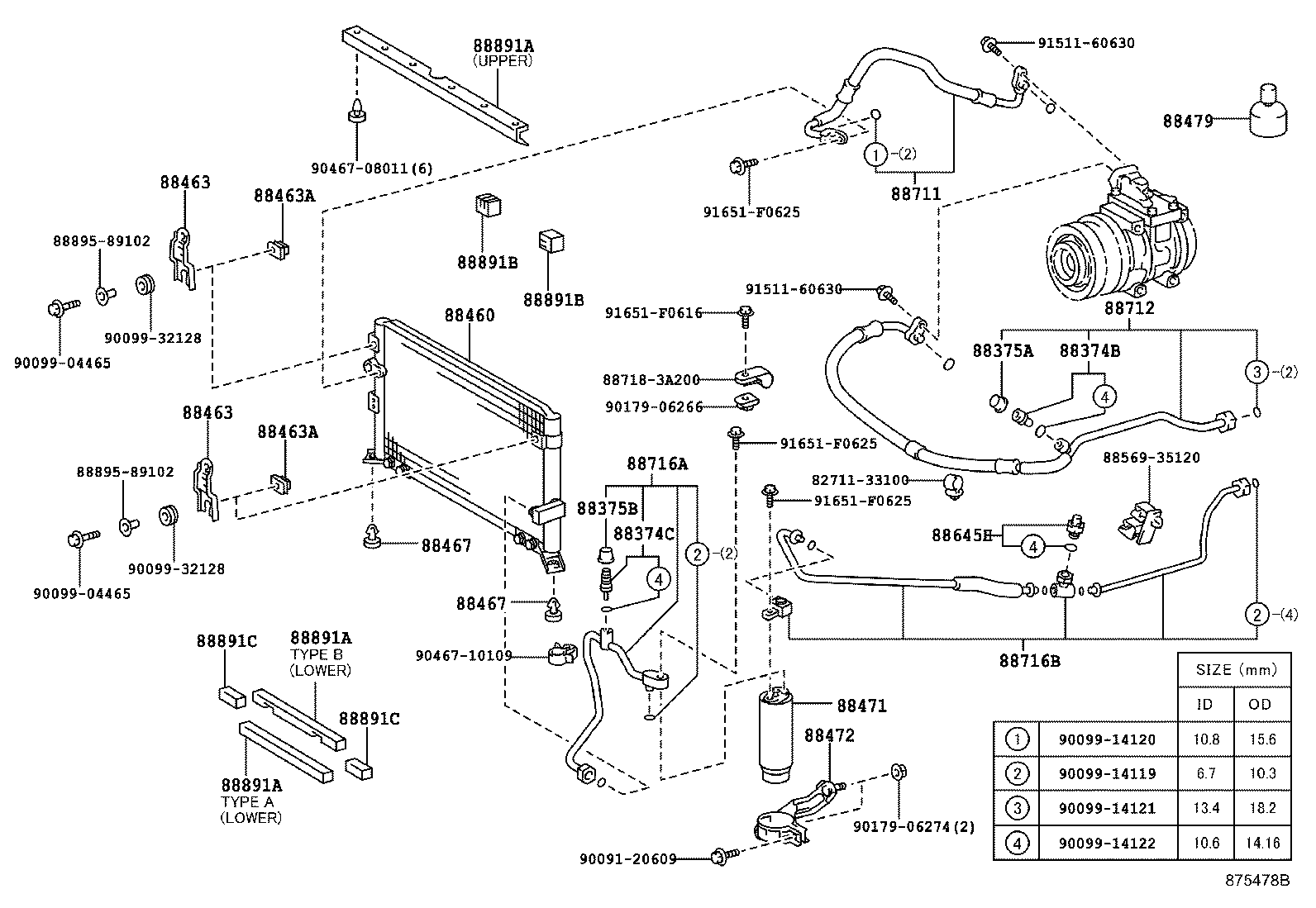

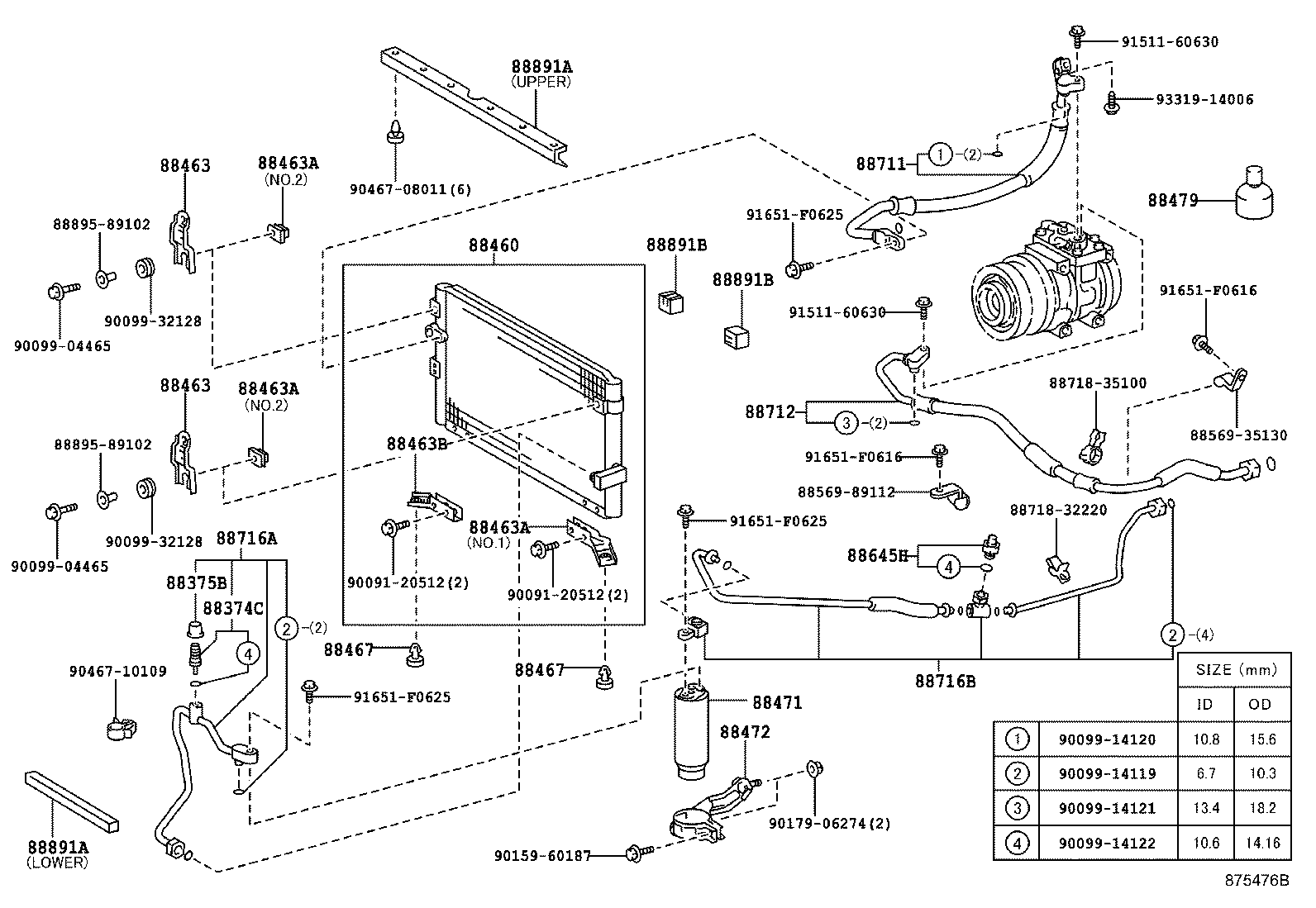

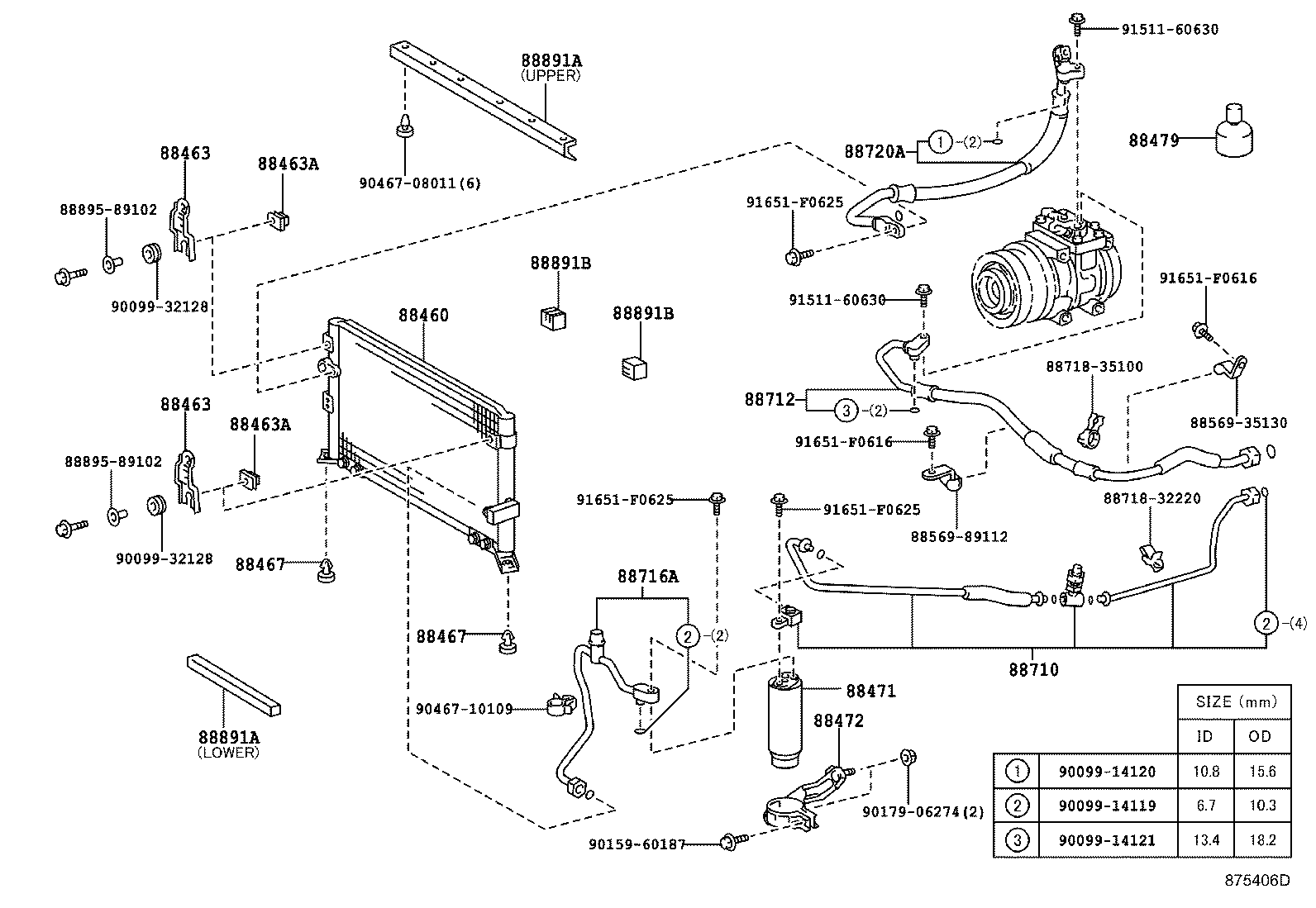

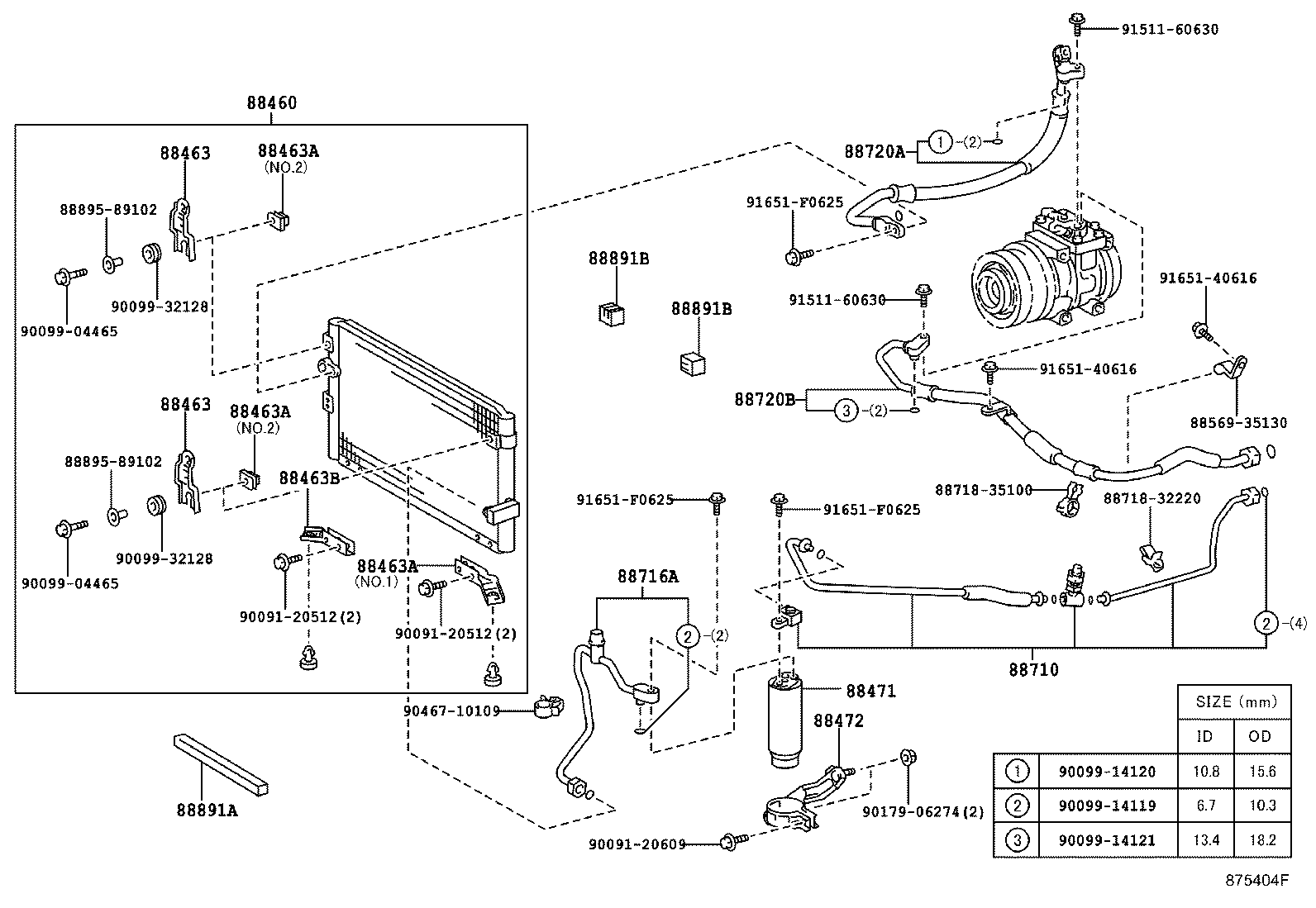

Figure 875001F 875001F 1997-08 → 1999-08 Figure 875002F 875002F 1997-08 → 1999-08 Figure 875476B 875476B 1999-08 → 2001-08 Figure 875477B 875477B 1999-08 → 2001-08 Figure 875478B 875478B 1999-08 → 2001-08 Figure 875404F 875404F 2001-08 → — Figure 875405F 875405F 2001-08 → — Figure 875406D 875406D 2001-08 → — Figure 875407F 875407F 2001-08 → — Figure 875408F 875408F 2001-08 → —

Part groups

PNCDescription
88362A Plate,Seal
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463D Bracket, Cooler Condenser, NO.5
88467 Cushion, Cooler Condenser, NO.1
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88645H Switch, Pressure NO.1
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88720A Hose & Accessory, Air Conditioner
88720B Hose & Accessory, Air Conditioner
88790 Valve Assy, Magnet
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
