Toyota Hilux

2017-08 → 2020-05 · chassis GUN125 · catalogue 672190 · Japan

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

13 part groups · 2 illustrations

Illustrations

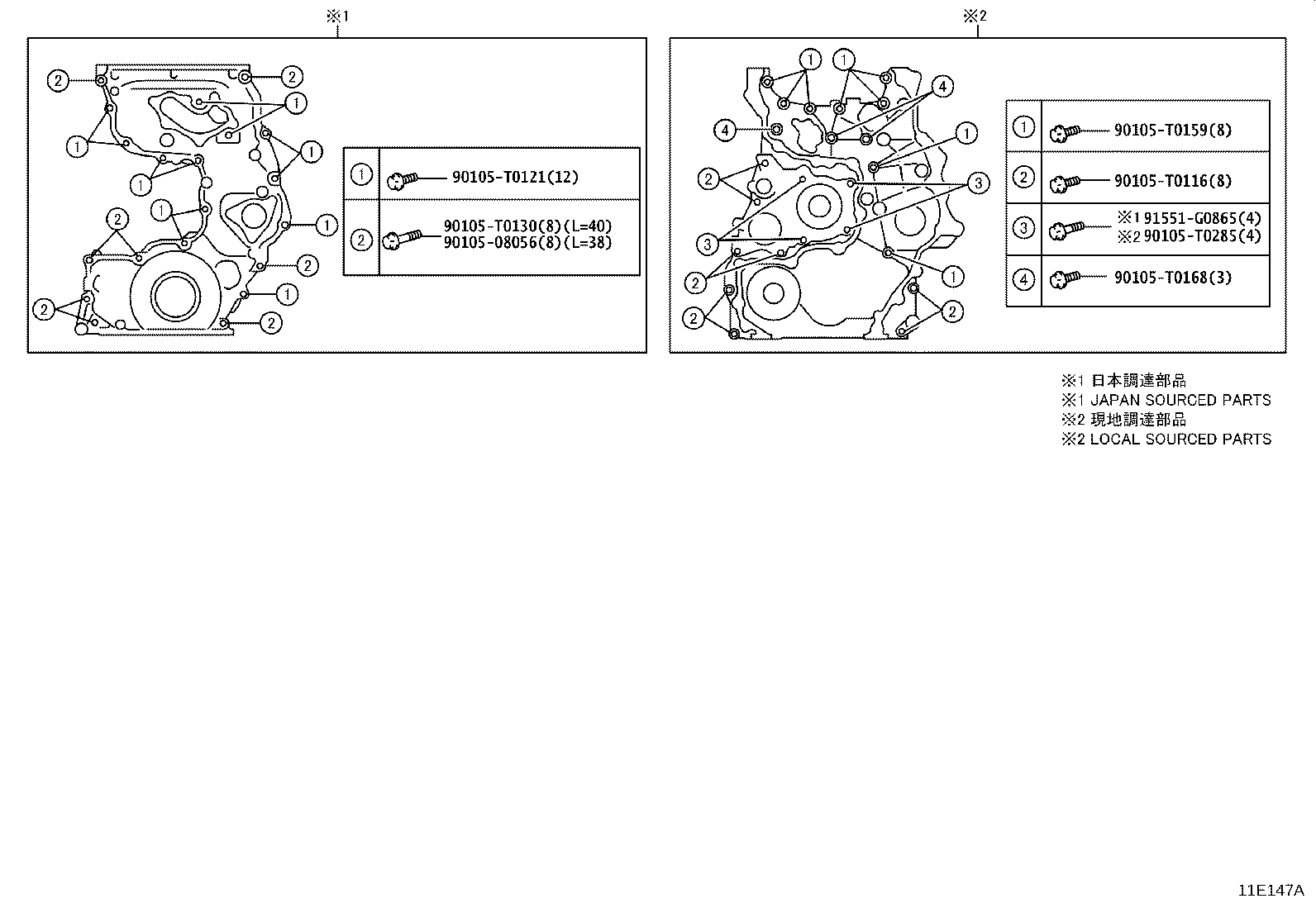

Figure 11E144C 11E144C 2017-08 → — Figure 11E147A 11E147A 2017-08 → —

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11303A Seal, Oil(FOR CRANKSHAFT FRONT)
11310 Cover Assy, Timing Chain
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11328A Gasket, Timing Belt Cover, NO.1
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11356 Plate, Rear End, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
15133B Plug, Oil Pump Relief Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
