Toyota Hilux

2017-08 → 2020-05 · chassis GUN125 · catalogue 672190 · Japan

Supported model Data version 2018-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Venturi

3 part groups · 2 illustrations

Illustrations

Figure 260452B

260452B 2017-08 → —

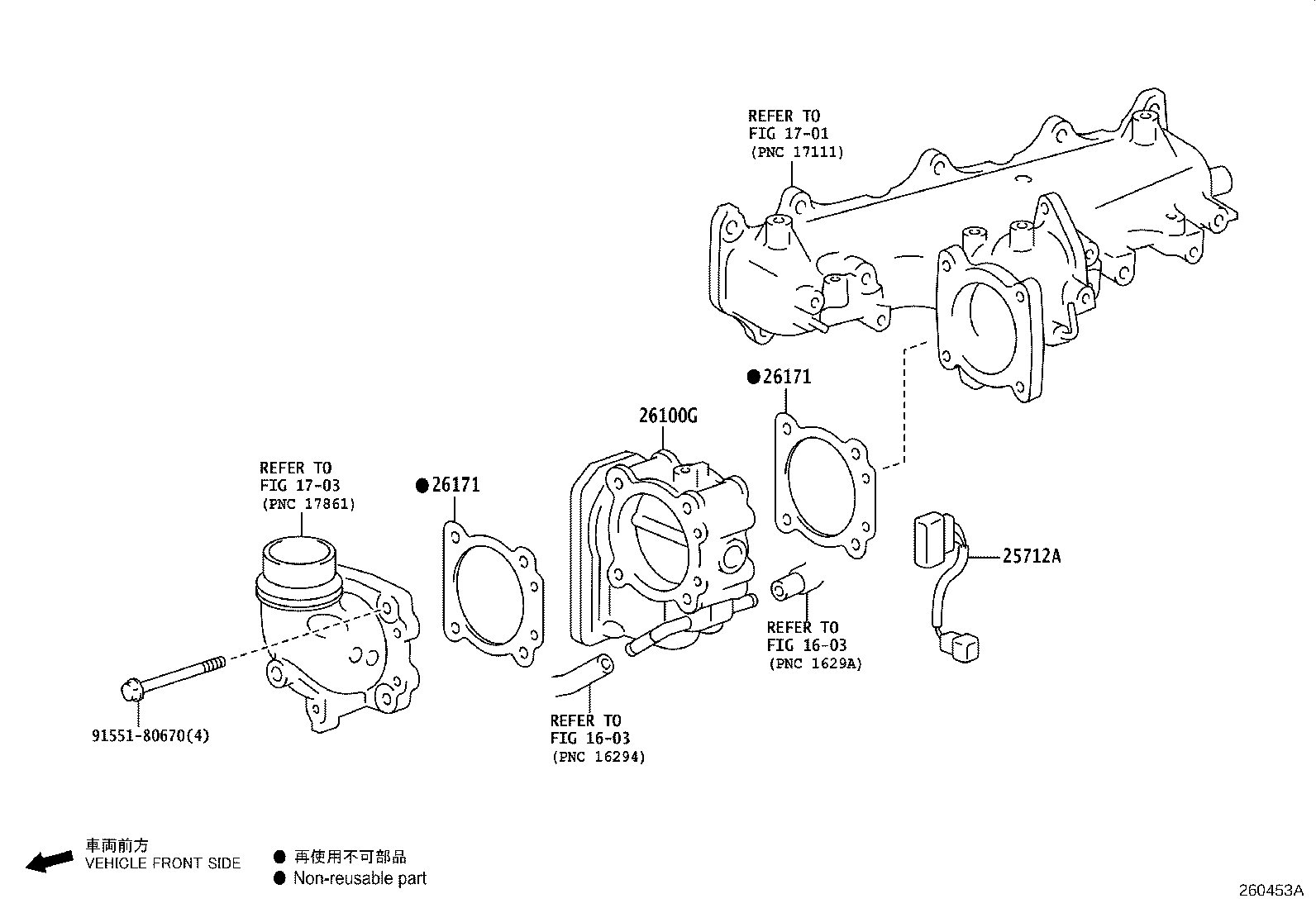

Figure 260453A

260453A 2018-10 → —

Part groups

PNC	Description
25712A	Wire, Emission Control Valve
26100G	Body Assy, Diesel Throttle
26171	Gasket, Venturi

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
