Toyota Hilux

2017-08 → 2020-05 · chassis GUN125 · catalogue 672190 · Japan

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 3 illustrations

Illustrations

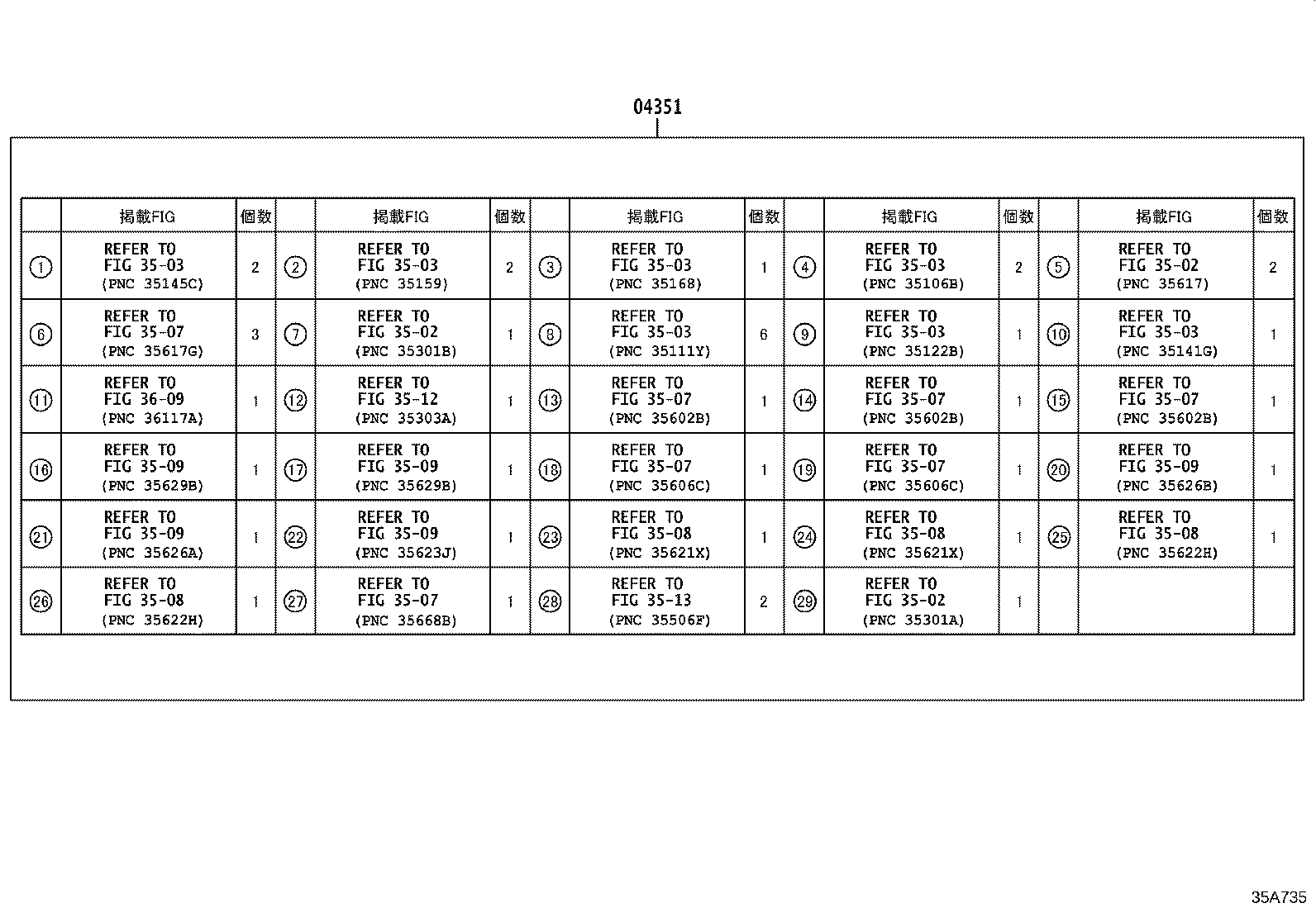

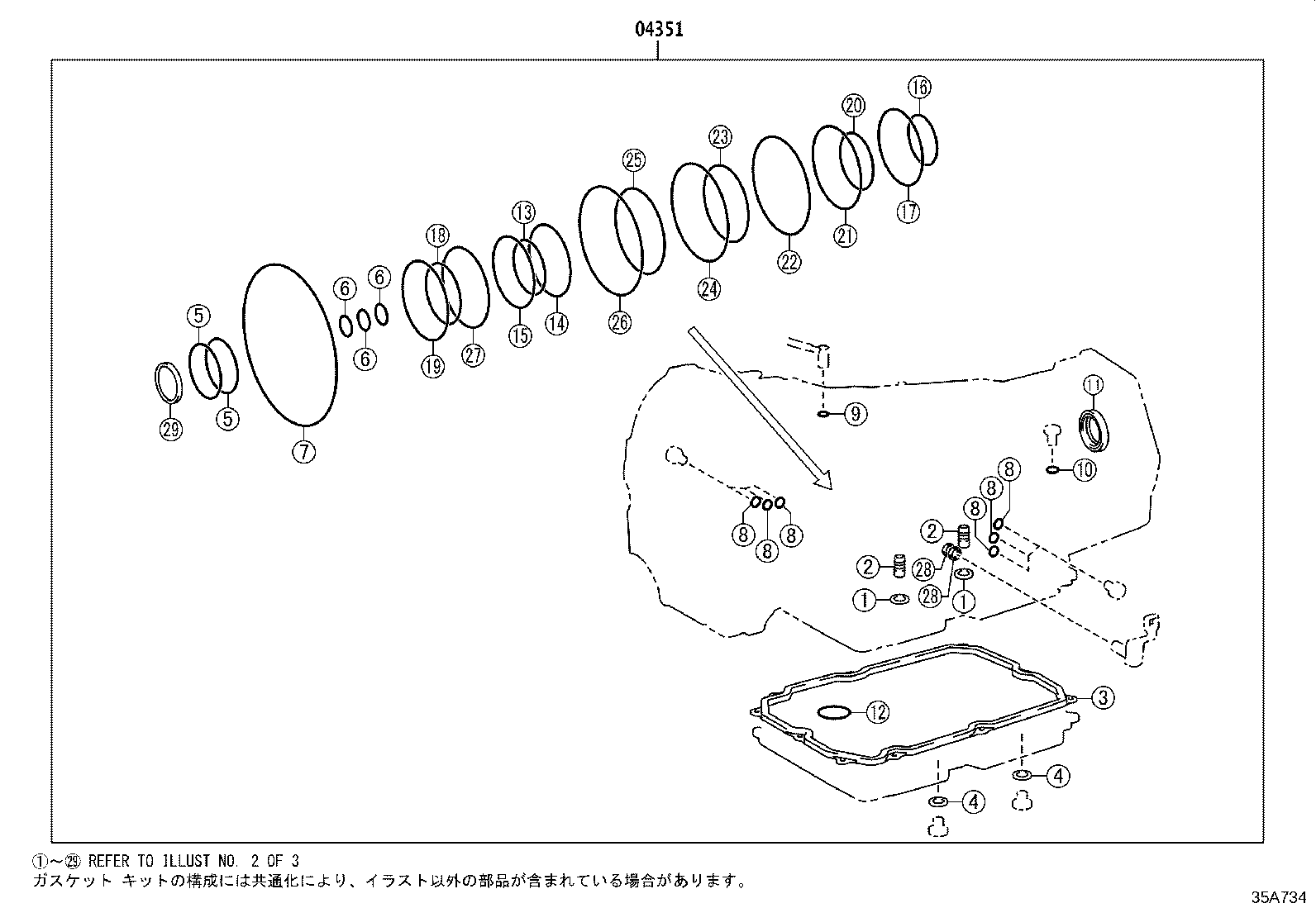

Figure 359930A 359930A 2017-08 → — Figure 35A734 35A734 2017-08 → — Figure 35A735 35A735 2017-08 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
30030 Transmission Assy, Rebuilt
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
