Toyota Hilux
2017-08 → 2020-05 · chassis GUN125 · catalogue 672190 · Japan
Supported model
Data version 2018-06

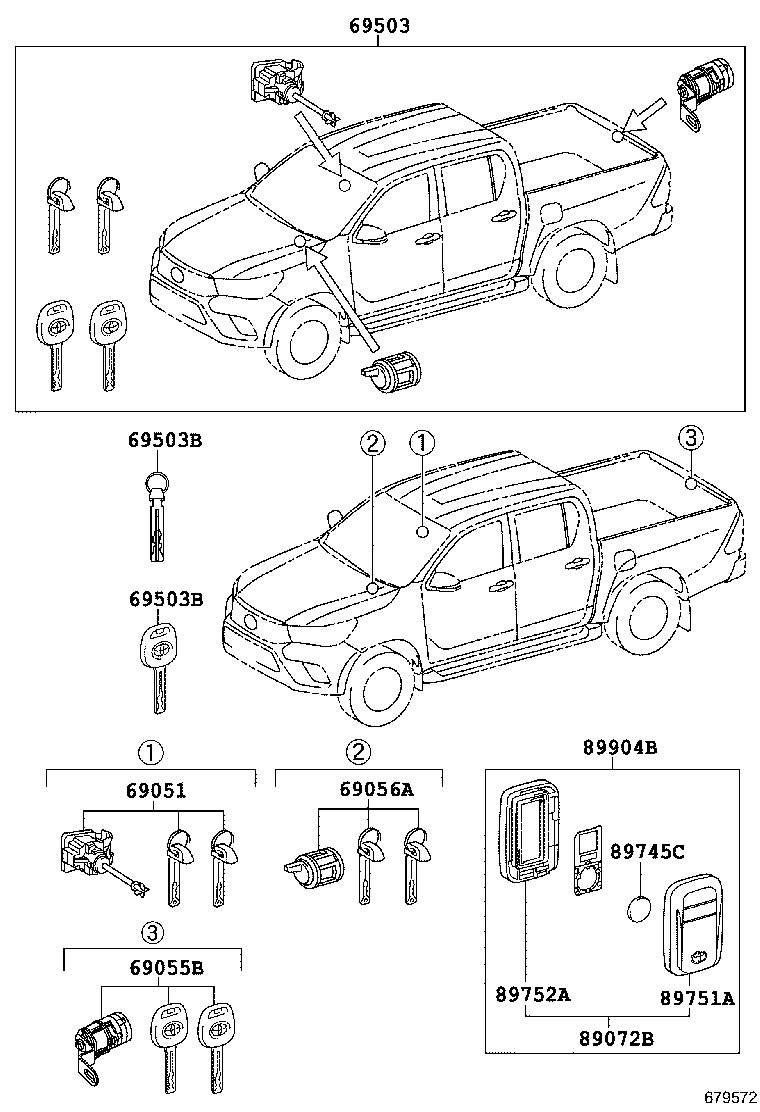

Lock Cylinder Set
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69055B | Cylinder & Key Set, Back Door Lock |
| 69056A | Cylinder & Key Set, Glove Compartment Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | Cylinder Set, Lock |
| 69503B | Key, Cut |
| 89070F | Transmitter Assy, Door Control (CUT KEY) |
| 89072B | Housing Set, Door Control Transmitter (FOR SMART KEY) |
| 89745A | Battery, Transmitter |
| 89745C | Battery, Transmitter |
| 89751A | Cover, Transmitter Housing |
| 89751B | Cover, Transmitter Housing |
| 89752A | Case, Transmitter Housing |
| 89758 | Packing, Door Control Transmitter |
| 89786B | Transmitter, Transponder Key Sub |
| 89904B | Transmitter Sub-assy, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
