Toyota Hilux

2020-06 → 2021-08 · chassis GUN125 · catalogue 6721A0 · Japan

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

37 part groups · 5 illustrations

Illustrations

Figure 17B220B 17B220B 2020-06 → — Figure 17B217A 17B217A 2020-06 → — Figure 17B218A 17B218A 2020-06 → — Figure 17B219A 17B219A 2020-06 → — Figure 17B222A 17B222A 2020-06 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15407F Clamp OR Clip, Oil Hose
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet

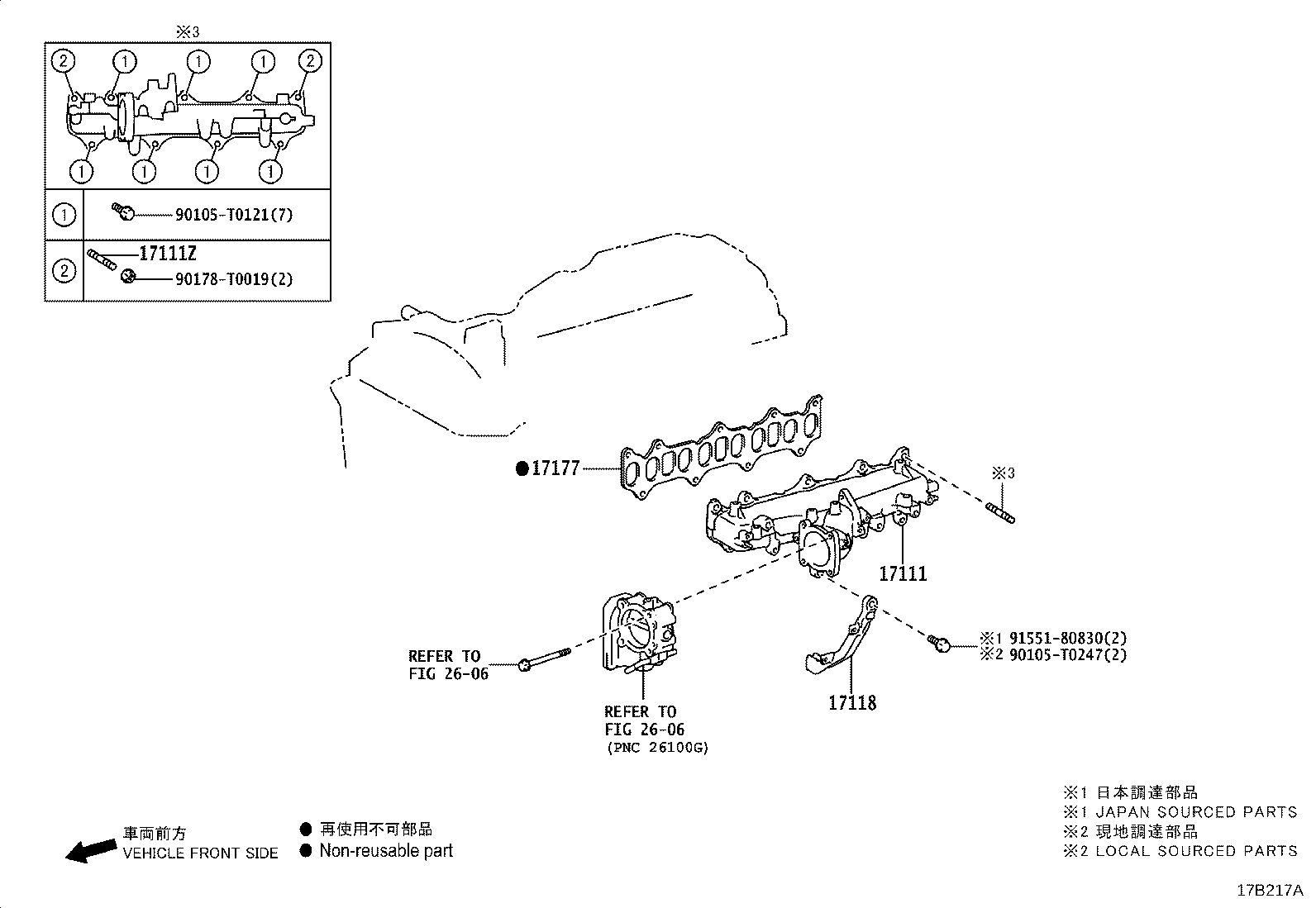

17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold

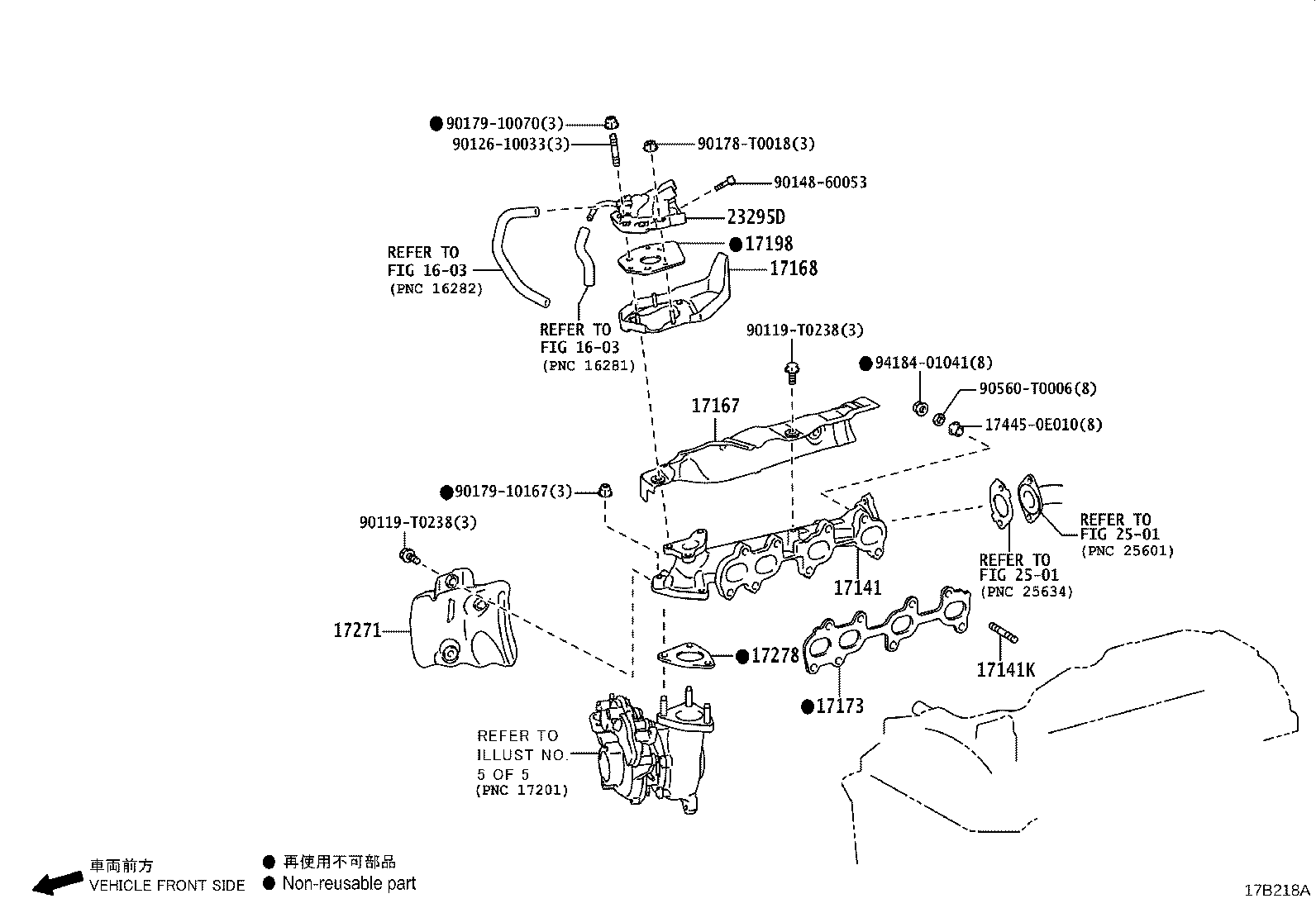

17141 Manifold, Exhaust
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17198 Gasket, Exhaust Manifold, NO.2

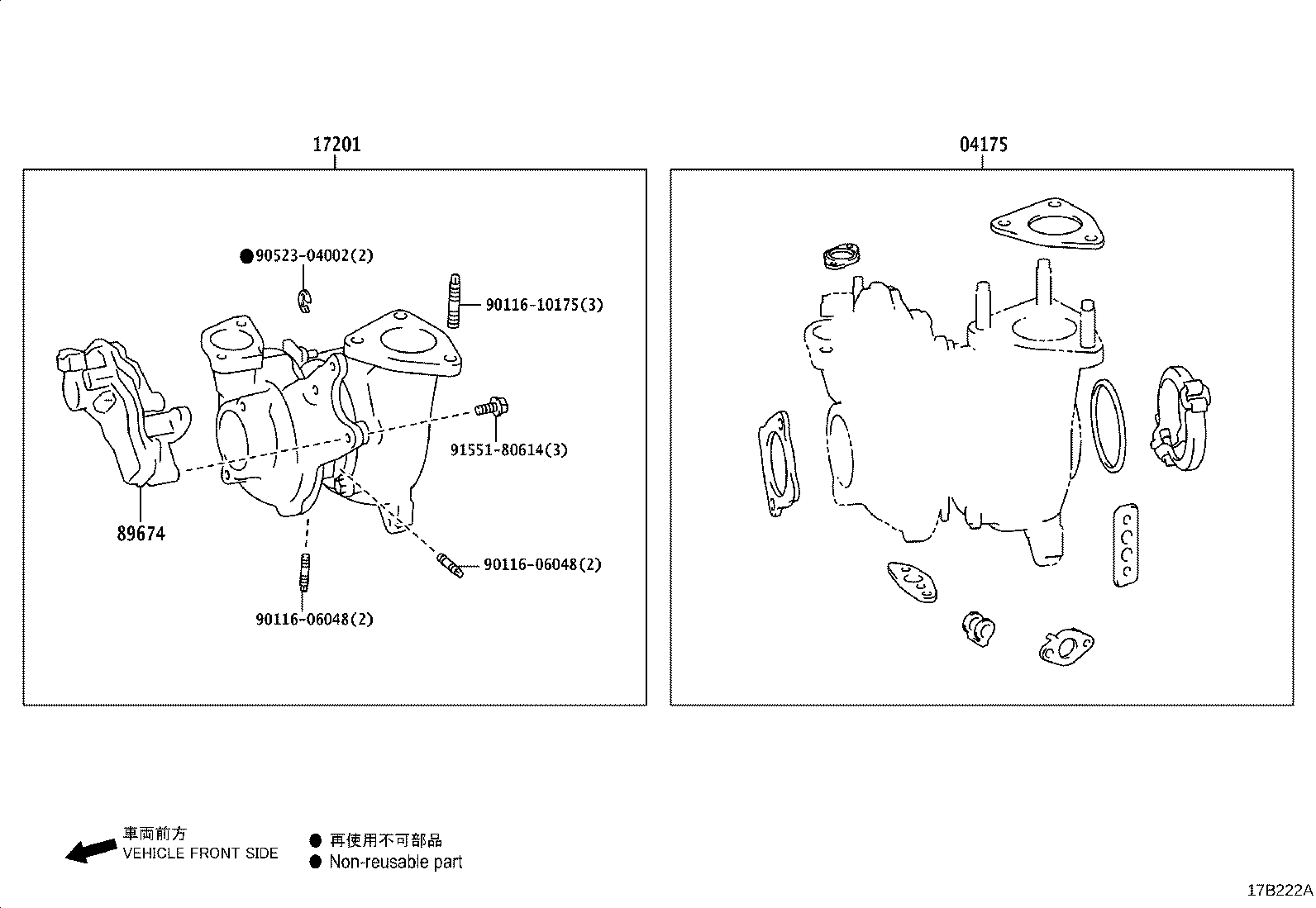

17201 Turbocharger Sub-assy
17203B Elbow Sub-assy, Compressor Inlet
17271 Insulator, Turbo, NO.1
17275 Elbow, Compressor Outlet
17276 Gasket, Compressor Inlet
17277 Gasket, Compressor Outlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17293 Stay, Turbocharger
17293B Bolt(FOR TURBOCHARGER STAY)
17293C Nut(FOR TURBOCHARGER STAY)
17298 Stay, Compressor Elbow
17452B Clamp, Exhaust Pipe
17568A Stay, Exhaust Pipe Support
17569D Stay, Exhaust Pipe Support, NO.2
23295D Holder, Injector, NO.1

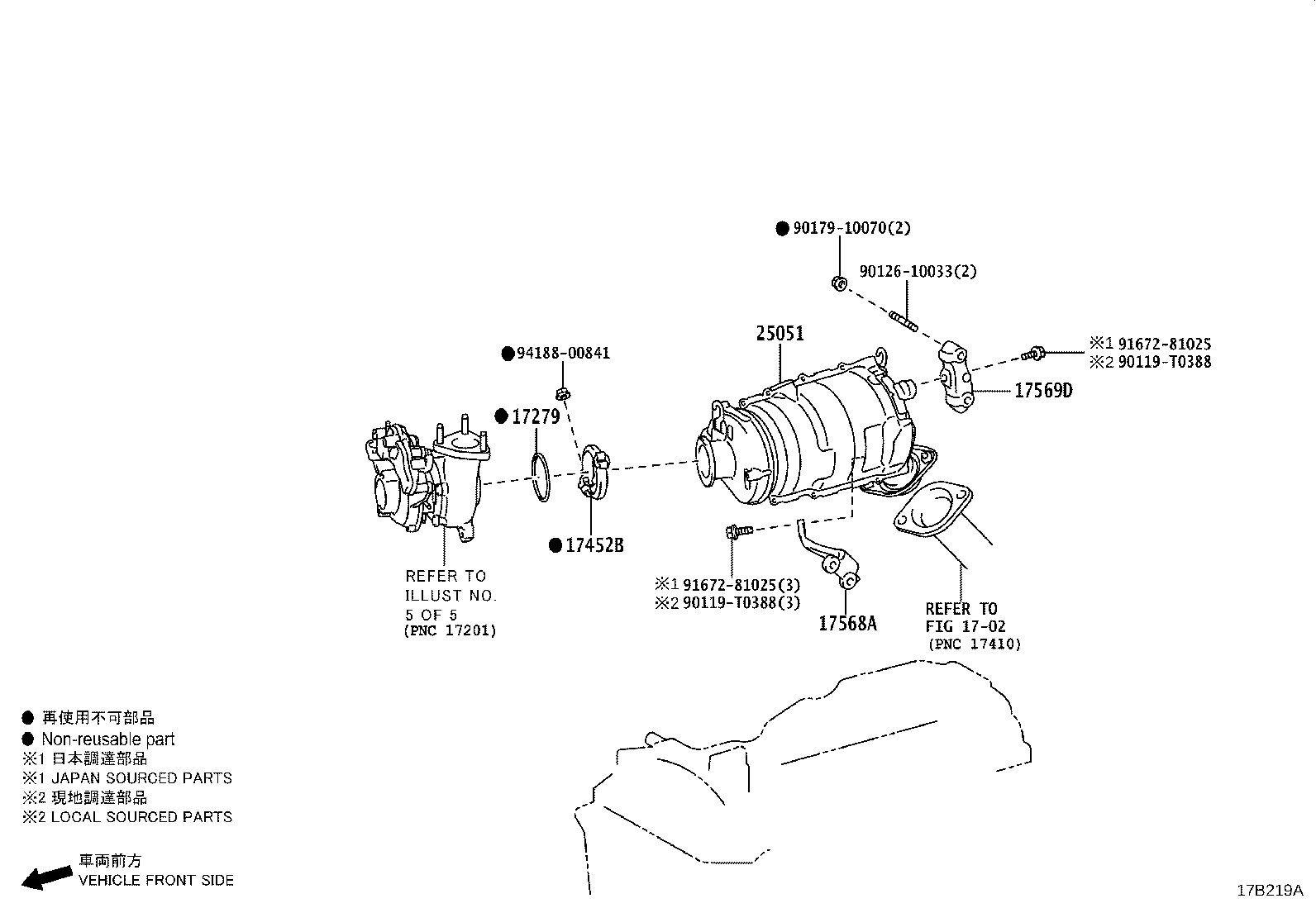

25051 Converter Sub-assy, Exhaust Manifold
89674 Motor, Turbocharger Variable Nozzle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
