Toyota Hilux

2020-06 → 2021-08 · chassis GUN125 · catalogue 6721A0 · Japan

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

16 part groups · 2 illustrations

Illustrations

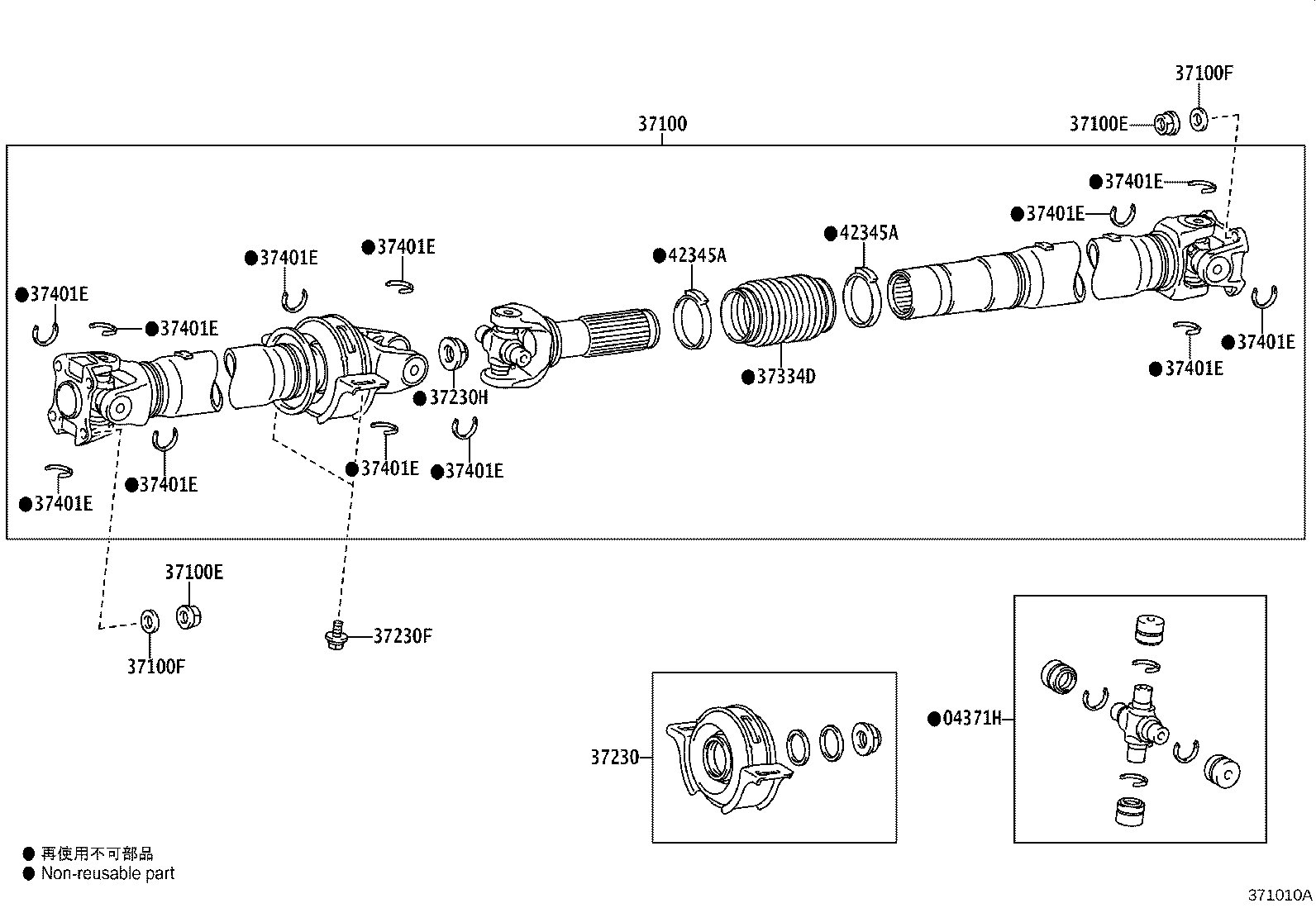

Figure 371001A 371001A 2020-06 → — Figure 371010A 371010A 2020-06 → —

Part groups

PNCDescription
04371G Spider Kit, Front Propeller Shaft Universal Joint
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37100 Shaft Assy, Propeller W/Center Bearing
37100E Nut, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100F Washer, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37140 Shaft Assy, Propeller, Front
37140A Bolt (F0R FRONT PROPELLER SHAFT)
37140B Nut (F0R FRONT PROPELLER SHAFT)
37140C Washer (F0R FRONT PROPELLER SHAFT)
37230 Bearing Assy, Center Support, NO.1
37230F Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
37230H Nut, NO.1 (FOR CENTER SUPPORT BEARING)
37334D Boot, Rear Propeller Shaft
37401D Ring, Snap (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
42345A Clamp, Rear Propeller Shaft Boot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
