Toyota Hilux

2020-06 → 2021-08 · chassis GUN125 · catalogue 6721A0 · Japan

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 2 illustrations

Illustrations

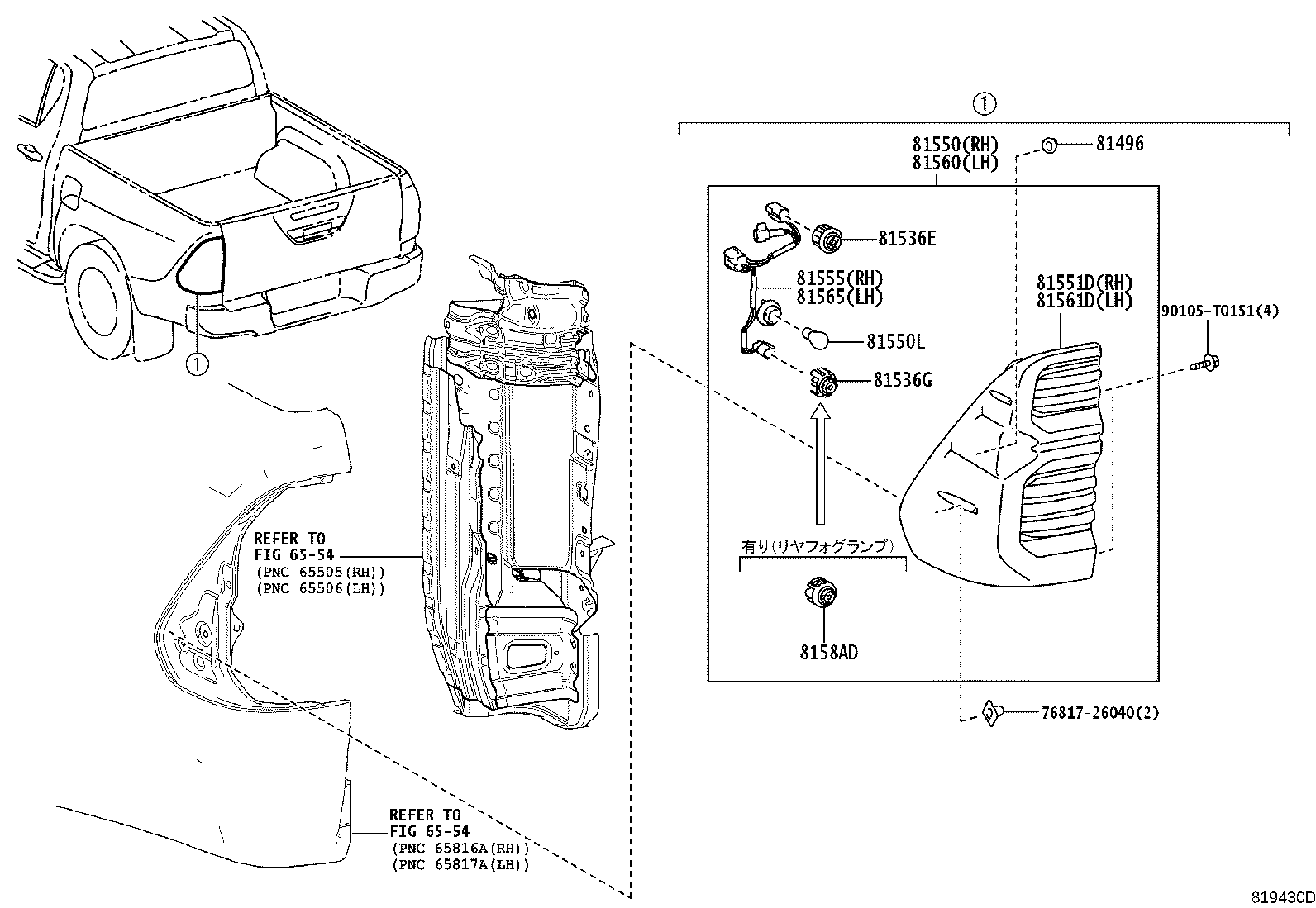

Figure 819429D 819429D 2020-06 → — Figure 819430D 819430D 2020-06 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81536E Led, Stop Lamp
81536G Led, Back-up Lamp
81550 Lamp Assy, Rear Combination, RH
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81551D Lens & Body, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
8158AD Led, Rear Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
