Toyota Hilux

2021-08 → 2022-08 · chassis GUN125 · catalogue 6721B0 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 2 illustrations

Illustrations

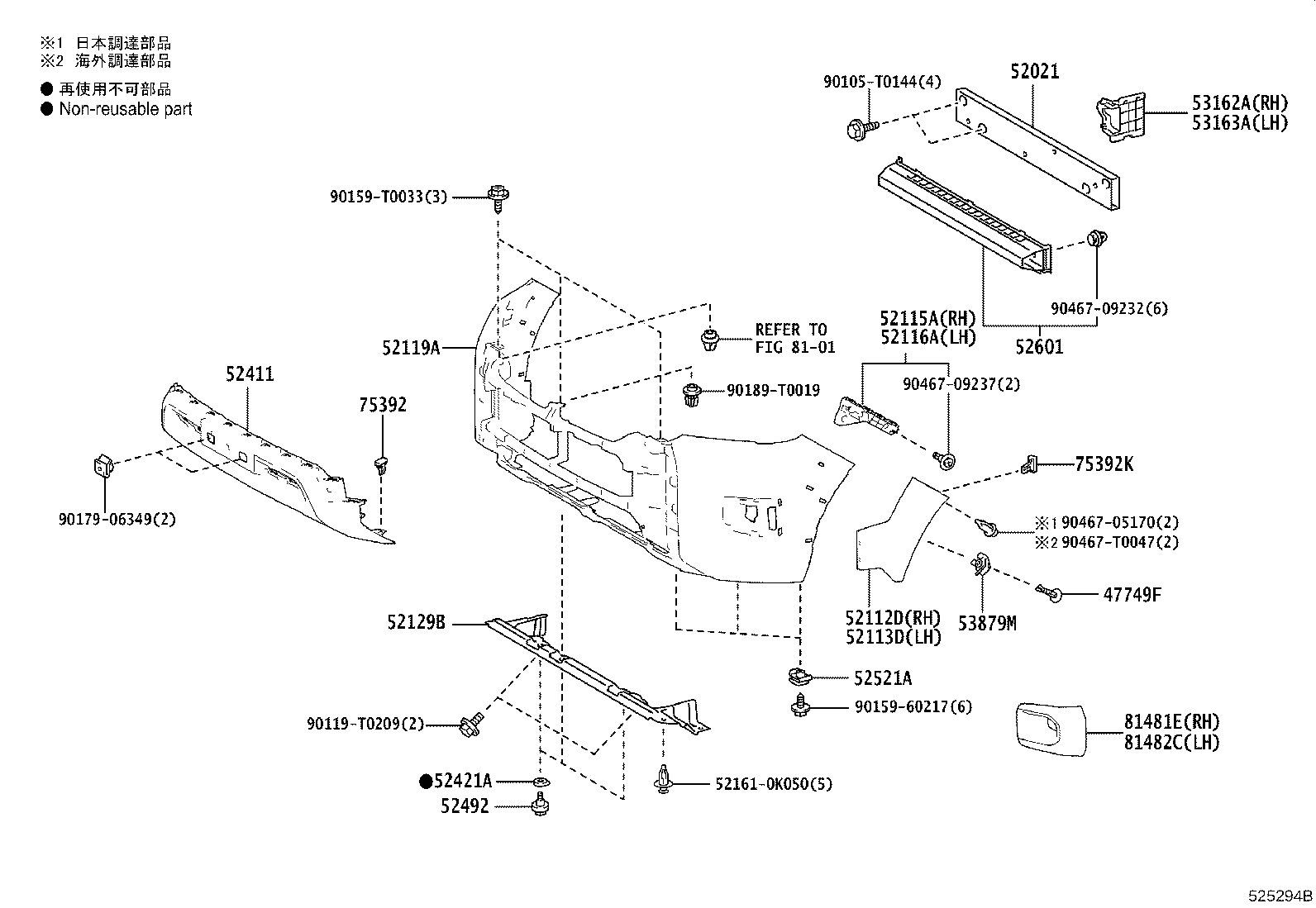

Figure 525232C 525232C 2021-08 → — Figure 525294B 525294B 2021-08 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
52021 Reinforcement Sub-assy, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121B Bracket, Front Licence Plate Mounting
52129B Cover, Front Bumper, Lower
52411 Guard, Front Bumper
52421A Pad, Front Bumper
52492 Bolt, Bumper Pad, NO.2
52521A Clip(FOR FRONT BUMPER RETAINER)
52601 Absorber Sub-assy, Front Bumper Energy
53162A Deflector, Front Bumper Stone, RH
53163A Deflector, Front Bumper Stone, LH
53879M Retainer, Front Fender Liner
75392 Retainer, Outside Moulding
75392K Retainer, Outside Moulding, NO.2
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
