Toyota Hilux
2021-08 → 2022-08 · chassis GUN125 · catalogue 6721B0 · Japan
Supported model
Data version 2023-09

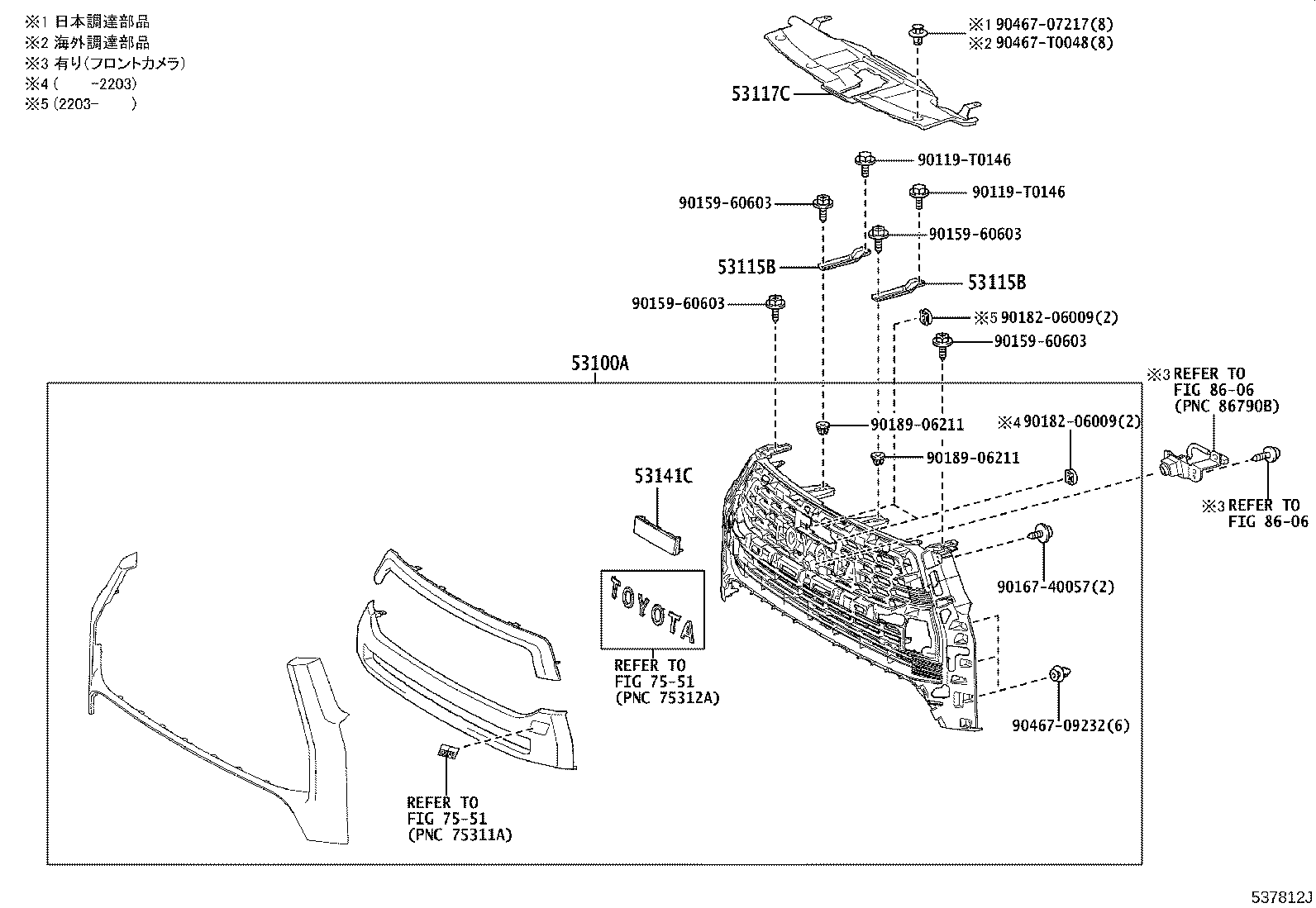

Radiator Grille
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53100A | Grille Assy, Radiator |
| 53111 | Grille, Radiator |
| 53115B | Bracket, Radiator Grille |
| 53117C | Retainer, Radiator Grille, NO.1 |
| 53121A | Moulding, Radiator Grille |
| 53121F | Moulding, Radiator Grille, Upper RH |
| 53125A | Moulding, Radiator Grille, Center RH |
| 53141C | Garnish, Radiator Grille |
| 53223A | Bracket, Radiator Grille Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
