Toyota Hilux

2021-08 → 2022-08 · chassis GUN125 · catalogue 6721B0 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

11 part groups · 2 illustrations

Illustrations

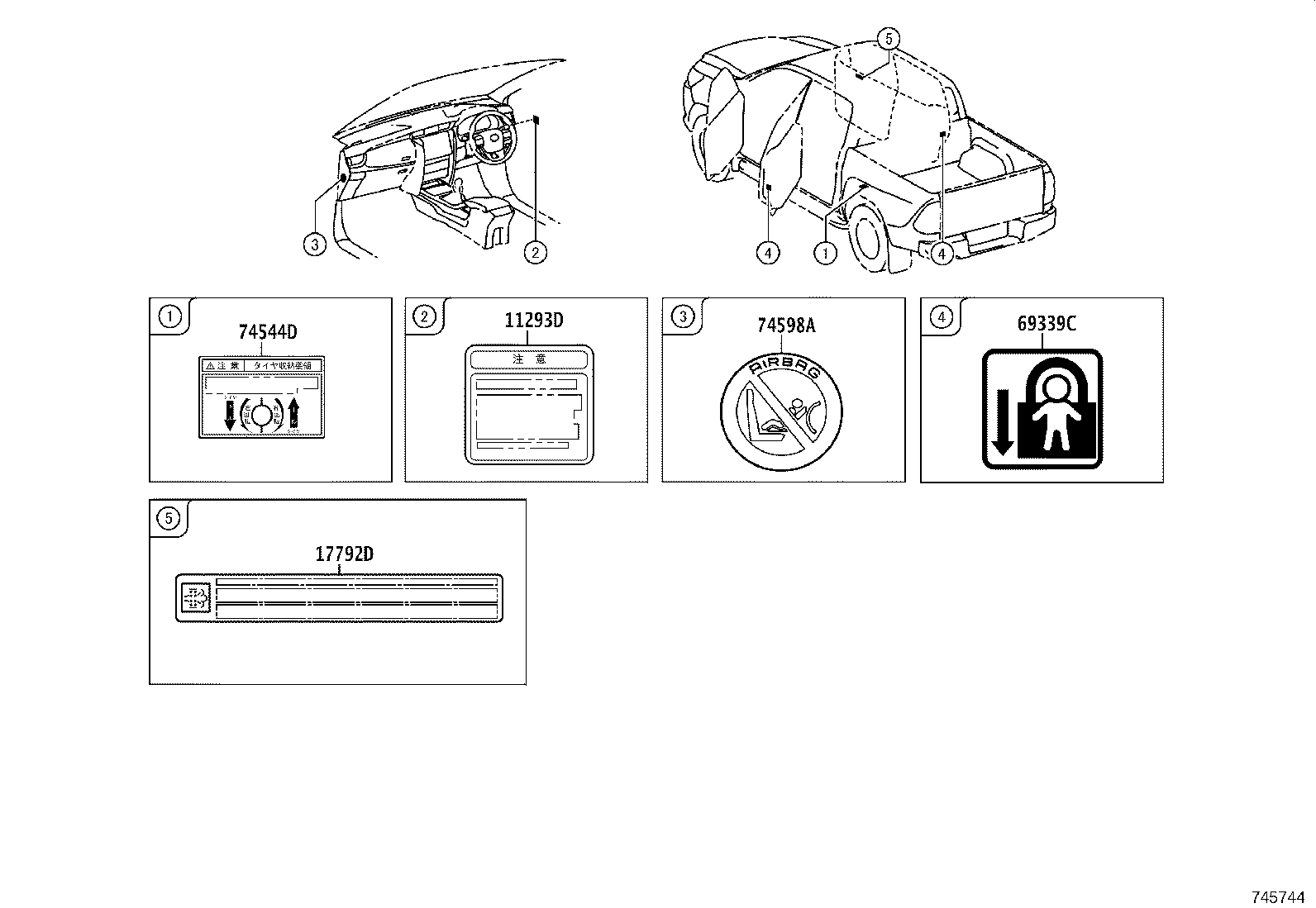

Figure 745743 745743 2021-08 → — Figure 745744 745744 2021-08 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11285F Label, Coolant System Caution
11293D Label, Engine Caution
11296D Label, Engine Service Information
17792D Label, Emission Control Device Information
69339C Label, Child Protector Information
74544D Plate, Tire Carrier Caution
74559B Label, Fuel Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723H Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
