Toyota Hilux

2023-08 → present · chassis GUN125 · catalogue 6721D0 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

13 part groups · 3 illustrations

Illustrations

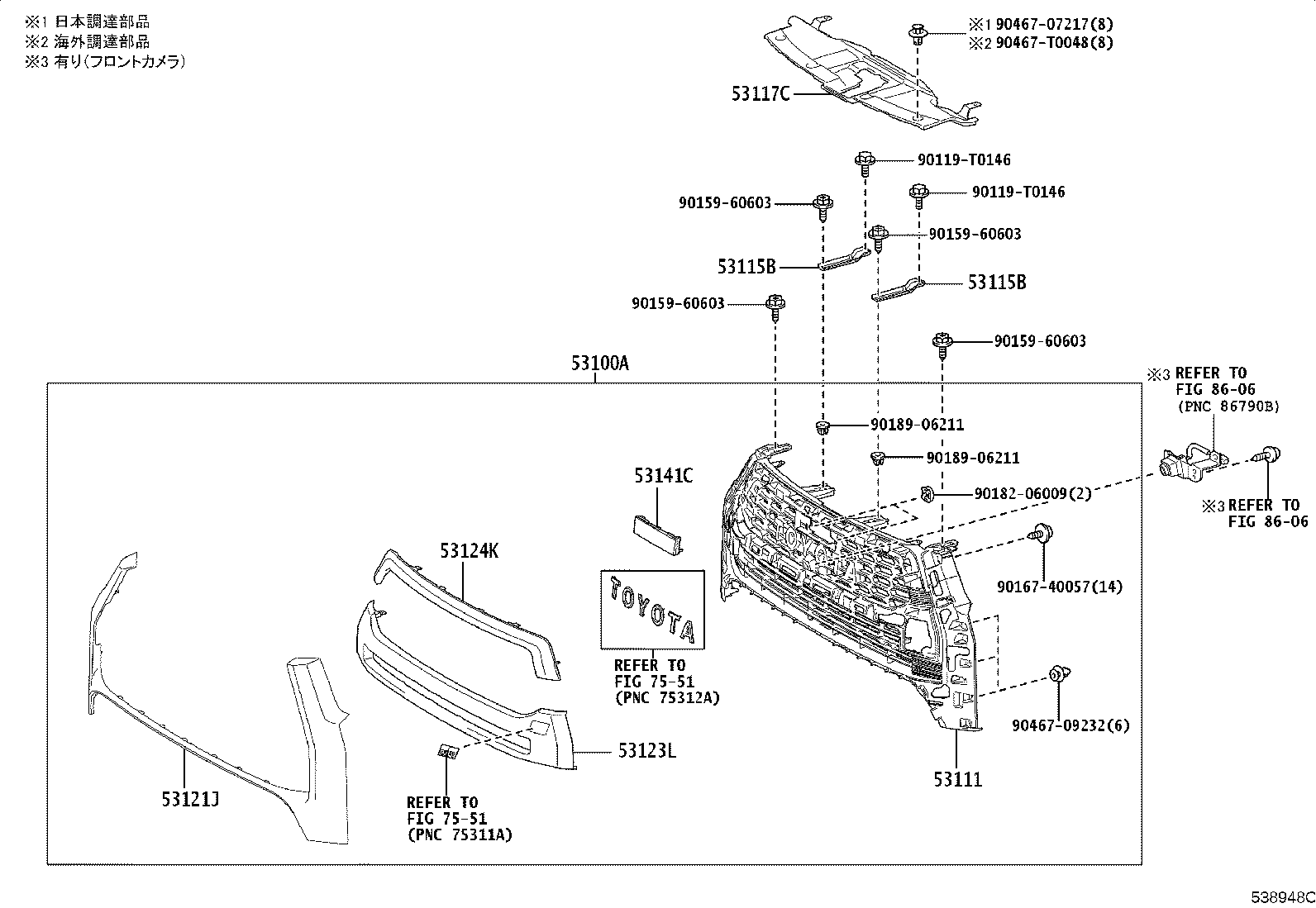

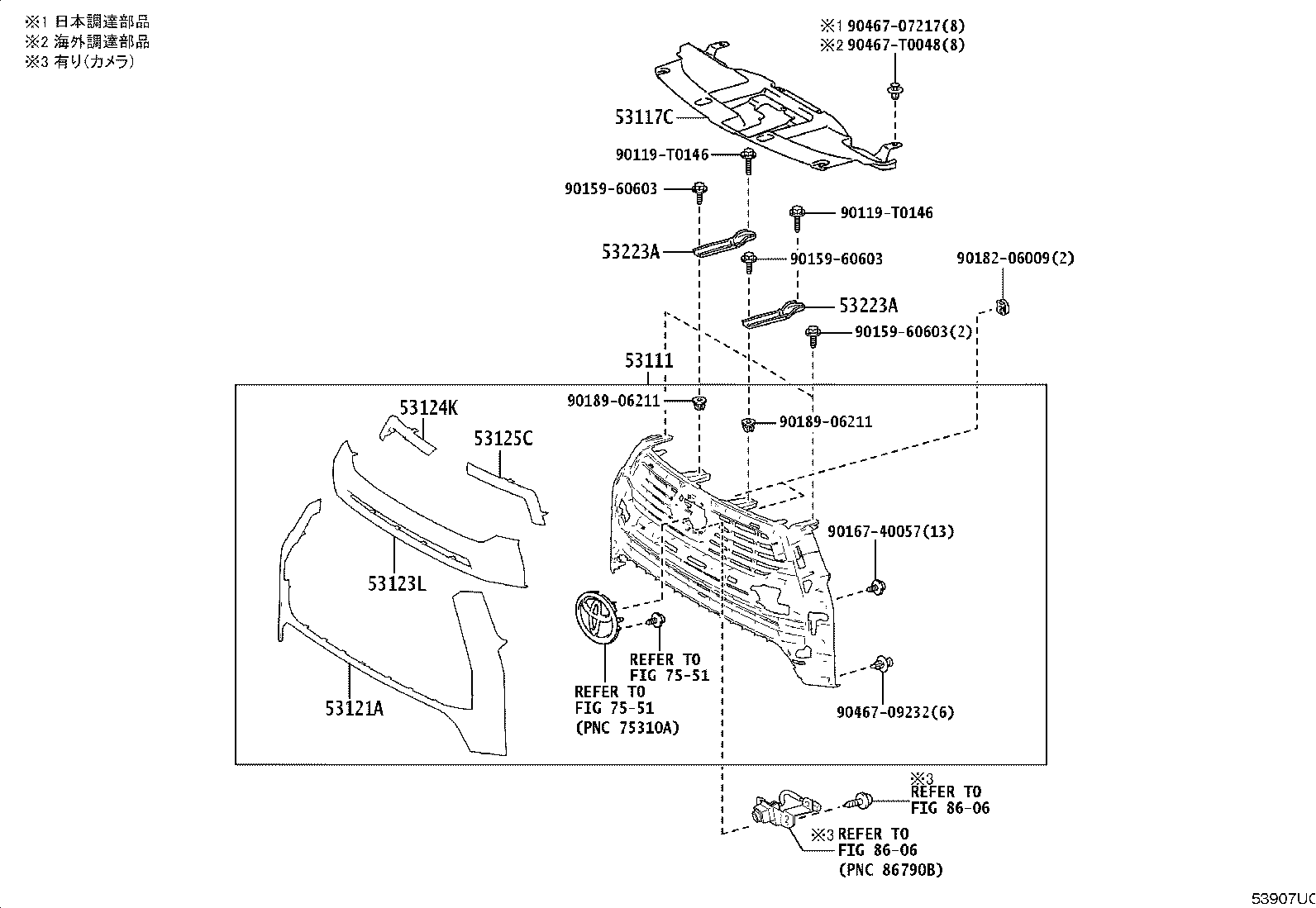

Figure 538947C 538947C 2023-08 → — Figure 538948C 538948C 2023-08 → — Figure 53907UC 53907UC 2024-03 → —

Part groups

PNCDescription
53100A Grille Assy, Radiator
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53117C Retainer, Radiator Grille, NO.1
53121A Moulding, Radiator Grille
53121F Moulding, Radiator Grille, Upper RH
53121J Moulding, Radiator Grille, NO.1
53123L Moulding, Radiator Grille, NO.3
53124K Moulding, Radiator Grille, NO.4
53125A Moulding, Radiator Grille, Center RH
53125C Moulding, Radiator Grille, NO.5
53141C Garnish, Radiator Grille
53223A Bracket, Radiator Grille Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
