Toyota Hilux

2023-08 → present · chassis GUN125 · catalogue 6721D0 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

18 part groups · 2 illustrations

Illustrations

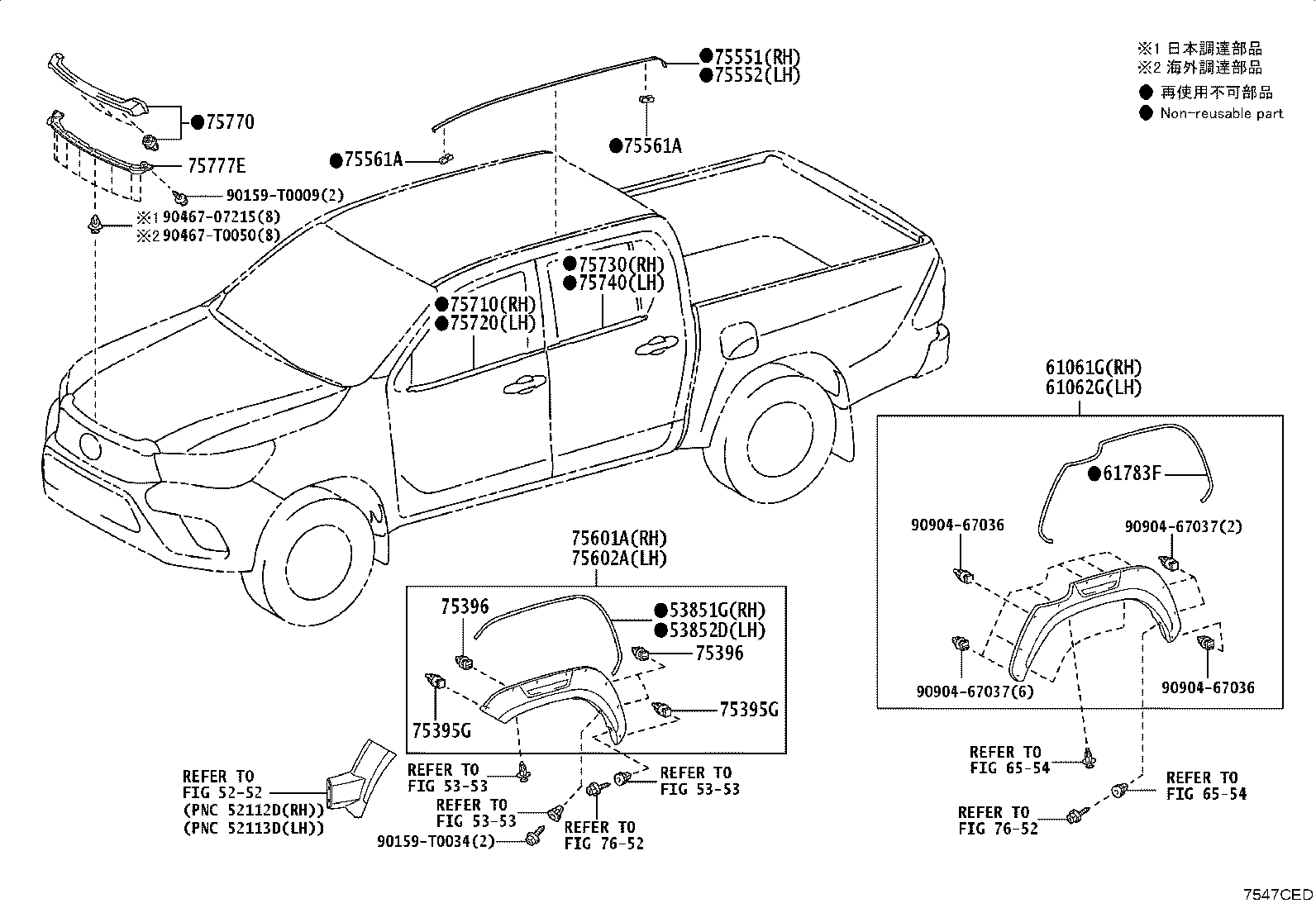

Figure 754763A 754763A 2023-08 → — Figure 7547CED 7547CED 2023-08 → —

Part groups

PNCDescription
53851G Pad, Front Wheel Opening Extension, RH
53852D Pad, Front Wheel Opening Extension, LH
61061G Extension Sub-assy, Rear Wheel Opening, NO.1 RH
61062G Extension Sub-assy, Rear Wheel Opening, NO.1 LH
61783F Pad, Rear Wheel Opening Extension NO.1
75395G Clip, Outside Moulding, NO.1
75396 Clip, Outside Moulding, NO.2
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75561A Clip, Roof Drip Side Finish Moulding
75601A Moulding Sub-assy, Front Fender, RH
75602A Moulding Sub-assy, Front Fender, LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75740 Moulding Assy, Rear Door Belt, LH
75770 Moulding Assy, Hood, Front
75777E Pad, Hood Front Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
