Toyota Stout

1979-03 → 1986-03 · chassis RK11# · catalogue 681120 · Japan

Discontinued model Data version 1986-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

29 part groups · 3 illustrations

Illustrations

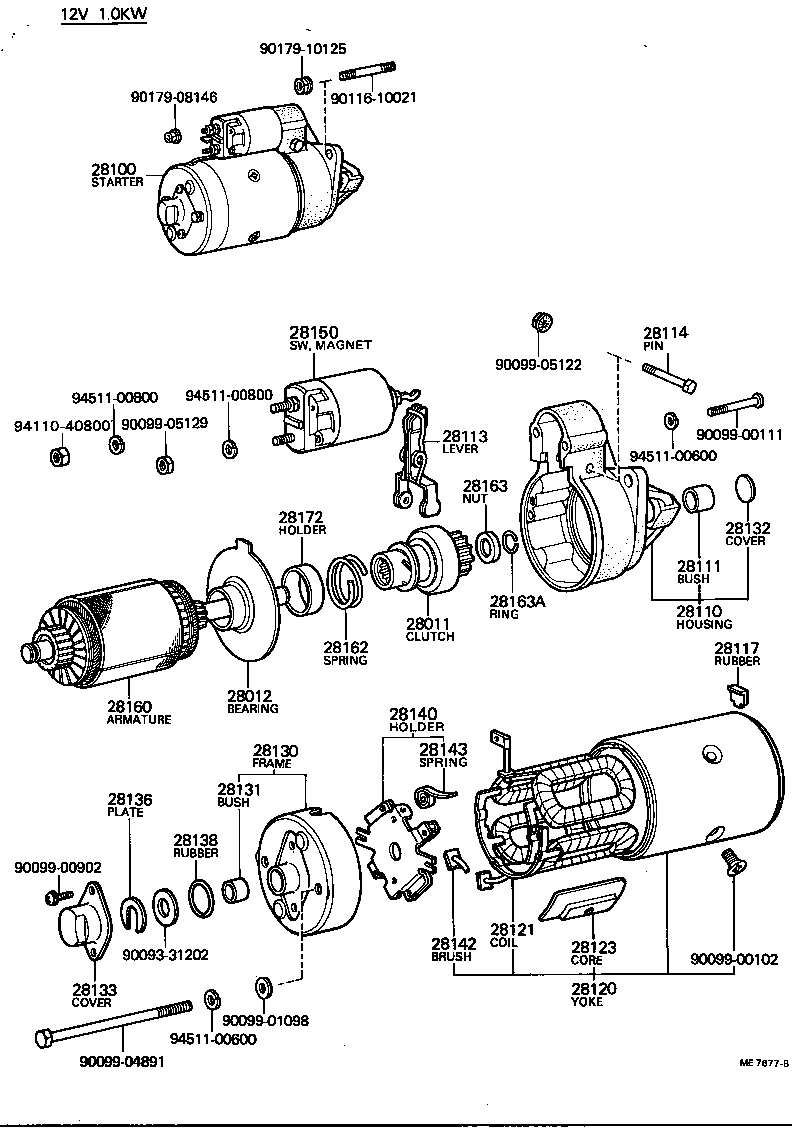

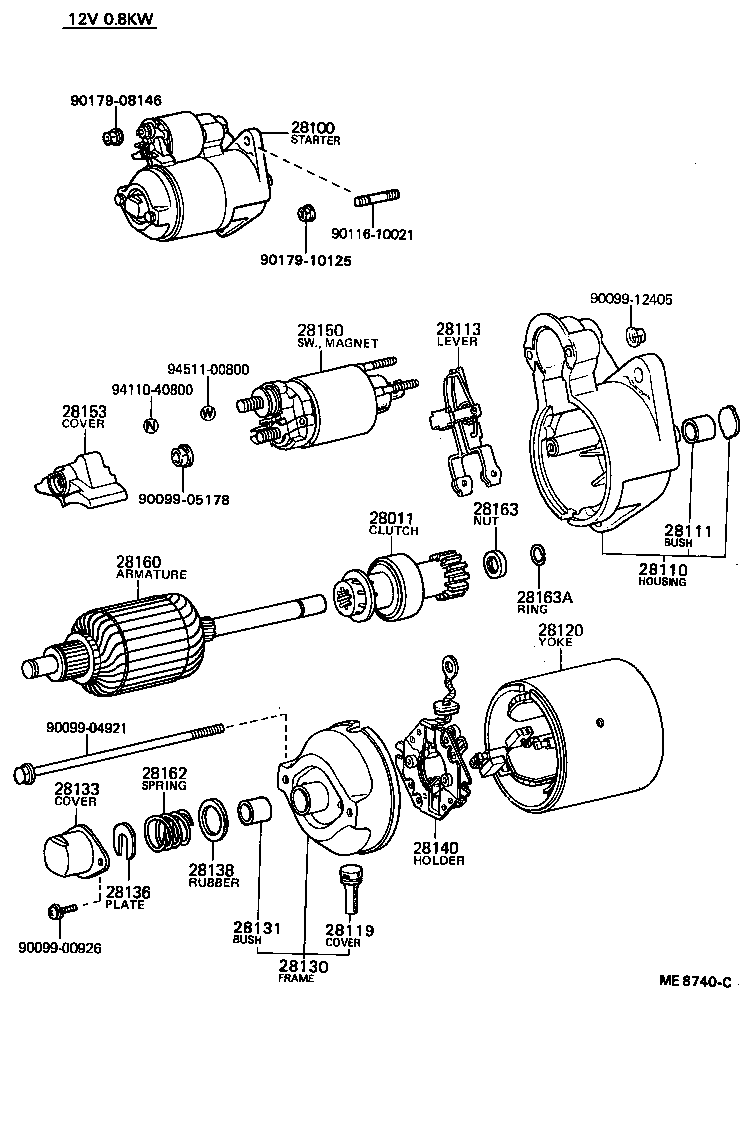

Figure ME7678A ME7678A 1979-03 → 1979-09 Figure ME8740C ME8740C 1979-09 → — Figure ME7677B ME7677B 1979-03 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28012 Bearing Sub-assy, Center
28100 Starter Assy
28110 Housing Assy, Starter Drive
28111 Bush(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28117 Rubber(FOR STARTER YOKE)
28118 Plate(FOR STARTER YOKE)
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28121 Coil, Starter Field
28123 Core, Starter Pole
28130 Frame Assy, Starter Commutator End
28131 Bush, Commutator End Frame
28132 Cover, Starter Bearing(FOR DRIVE HOUSING)
28133 Cover, Bearing(FOR END FRAME)
28136 Plate, Starter Lock
28138 Rubber(FOR STARTER BEARING COVER)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28153 Cover, Magnet Switch
28160 Armature Assy, Starter
28162 Spring, Starter Brake
28163 Nut OR Collar, Pinion Stop, Starter
28163A Ring, Snap(FOR STARTER PINION STOP NUT)
28172 Holder, Starter Spring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
