Toyota Stout
1979-03 → 1986-03 · chassis RK11# · catalogue 681120 · Japan
Discontinued model
Data version 1986-10
Parking Brake & Cable

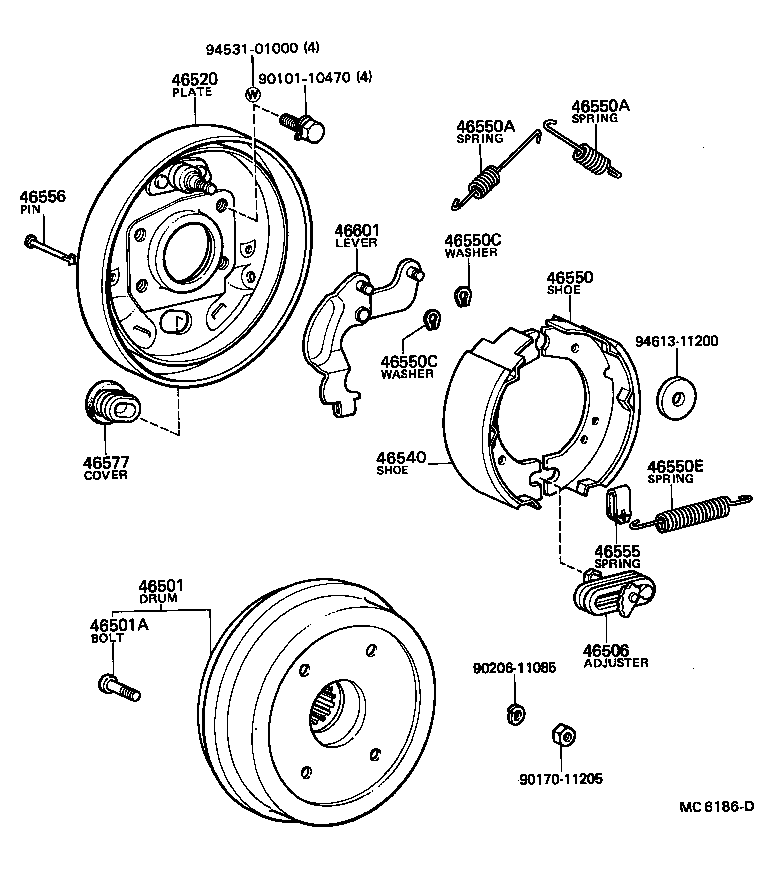

41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 46101 | Handle Sub-assy, Parking Brake Control |
| 46103 | Guide Sub-assy, Parking Brake Plunger |
| 46105 | Bracket Sub-assy, Parking Brake Planger OR Pedal |
| 46106 | Boot Sub-assy, Lever Pull Rod |
| 46110C | Pin(FOR PARKING BRAKE HANDLE SET) |
| 46110E | Spring, Torsion(FOR PARKING BRAKE PLUNGER) |
| 46114 | Pin, Parking Brake Plunger |
| 46115 | Washer, Parking Brake Plunger |
| 46117 | Sleeve, Parking Brake Plunger |
| 46118 | Pin, Parking Brake Plunger(FOR GUIDE) |
| 46235 | Bracket, Parking Brake Lever Support |
| 46301A | Spring, Tension(FOR INTERMEDIATE LEVER) |
| 46311 | Pawl, Parking Brake |
| 46311A | Spring(FOR PARKING BRAKE PAWL) |
| 46311B | Pin, Parking Brake Pawl Pivot |
| 46311D | Washer, Type C(FOR PARKING BRAKE PAWL) |
| 46321 | Lever, Parking Brake Intermediate |
| 46331 | Rod, Intermediate Lever Pull |
| 46331A | Pin, W/Hole(FOR INTERMEDIATE LEVER PULL ROD) |
| 46332 | Lever, Parking Brake Link |
| 46332B | Spacer(FOR PARKING BRAKE LINK LEVER) |
| 46351 | Shaft, Intermediate Lever Pivot |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420F | Seal, Dust(FOR PARKING BRAKE CABLE) |
| 46420G | Spring(FOR PARKING CABLE INNER WIRE SET) |
| 46420P | Spacer, Parking Brake |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46442 | Pin, Wire Pivot |
| 46501 | Drum Sub-assy, Parking Brake |
| 46501A | Bolt, Serration(FOR PARKING BRAKE DRUM) |
| 46506 | Adjuster Sub-assy, Parking Brake Shoe, RH OR Center |
| 46520 | Plate Sub-assy, Parking Brake |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550C | Washer, Type C(FOR PARKING BRAKE SHOE) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46555 | Spring, Brake Shoe Hold Down |
| 46556 | Pin, Shoe Hold Down Spring |
| 46577 | Cover, Adjusting Cam Hole |
| 46601 | Lever Sub-assy, Parking Brake Shoe |
