Toyota Stout

1979-03 → 1986-03 · chassis RK11# · catalogue 681120 · Japan

Discontinued model Data version 1986-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

24 part groups · 2 illustrations

Illustrations

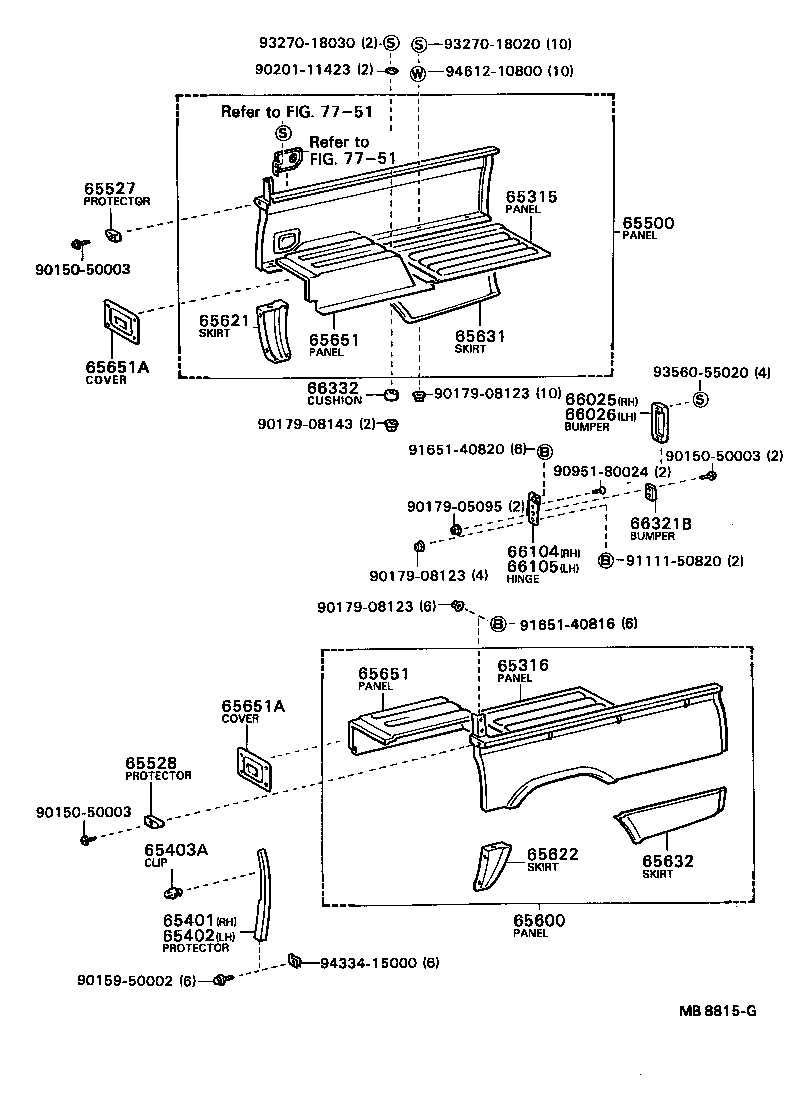

Figure MB8814H MB8814H 1979-03 → — Figure MB8815G MB8815G 1979-03 → 1985-07

Part groups

PNCDescription
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65401 Protector, Front Corner, RH
65402 Protector, Front Corner, LH
65403A Clip, Corner Protector
65500 Panel Assy, Rear Body Side, RH
65527 Protector, Top Rail Side, RH
65528 Protector, Top Rail Side, LH
65600 Panel Assy, Rear Body Side, LH
65621 Skirt, Side Panel, Front RH
65622 Skirt, Side Panel, Front LH
65631 Skirt, Side Panel, Rear RH
65632 Skirt, Side Panel, Rear, LH
65651 Panel, Wheel House
65651A Cover Sub-assy, Wheel House
65671 Brace, Side Panel Skirt, Front
66025 Bumper Sub-assy, Rear Body Rubber, RH
66026 Bumper Sub-assy, Rear Body Rubber, LH
66104 Hinge Sub-assy, Tail Gate, Male, RH
66105 Hinge Sub-assy, Tail Gate, Male, LH
66321B Bumper, Gate Rubber
66332 Cushion, Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
