Toyota Stout

1979-03 → 1986-03 · chassis RK11# · catalogue 681120 · Japan

Discontinued model Data version 1986-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Top Curtain & Roof Panel

18 part groups · 3 illustrations

Illustrations

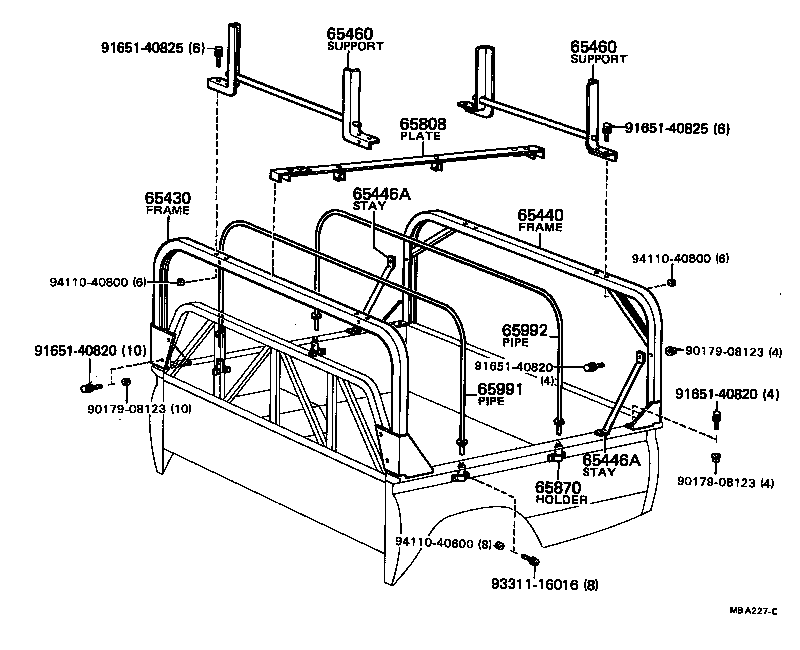

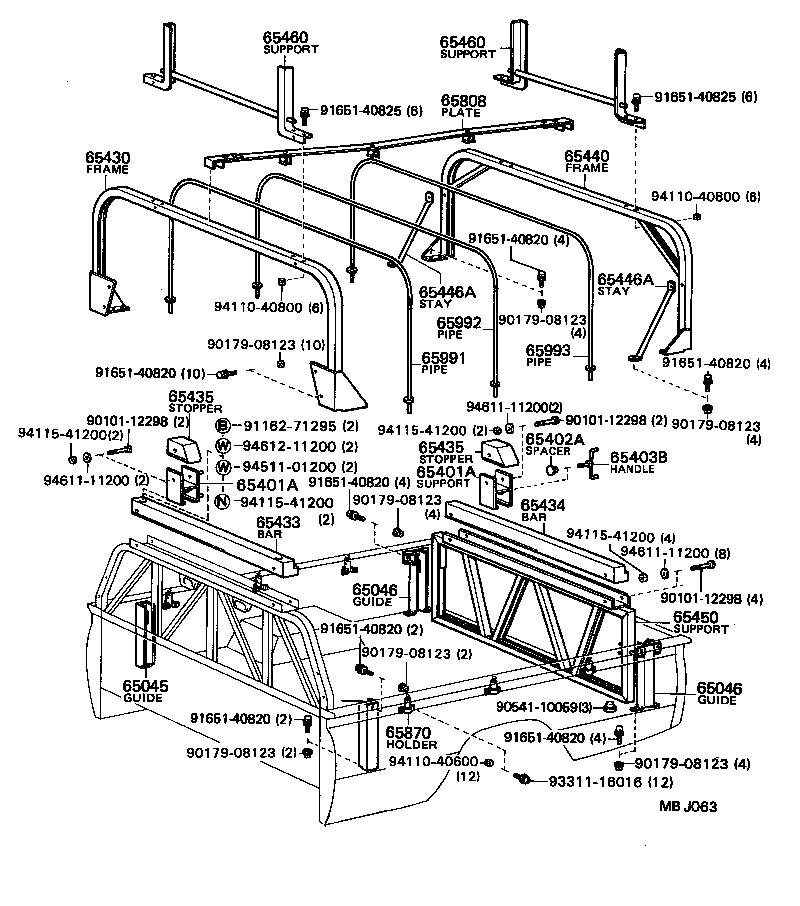

Figure MBA226E MBA226E 1979-03 → 1984-05 Figure MBJ063 MBJ063 1984-05 → — Figure MBA227C MBA227C 1979-04 → 1985-07

Part groups

PNCDescription
65045 Guide Sub-assy, Front
65046 Guide Sub-assy, Rear
65401A Support Sub-assy, Telegraph Pole Stopper
65402A Spacer Sub-assy, Telegraph Pole Stopper
65403B Handle Assy, Telegraph Pole Stopper
65430 Frame Assy, Top & Curtain Support, Front
65433 Bar, Guard Frame, NO.1
65434 Bar, Guard Frame, NO.2
65435 Stopper, Telegraph Pole Stopper
65440 Frame Assy, Top & Curtain Support, Rear
65446A Stay, Top & Curtain Support Frame
65450 Support Assy, Telegraph Pole
65460 Support Assy, Ladder
65808 Plate Sub-assy, Top Bow
65870 Holder Assy, Vinyl Top Bow
65991 Pipe, Vinyl Top Guard, NO.1
65992 Pipe, Vinyl Top Guard, NO.2
65993 Pipe, Vinyl Top Guard, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
