Toyota Stout
1979-03 → 1986-03 · chassis RK11# · catalogue 681120 · Japan
Discontinued model
Data version 1986-10

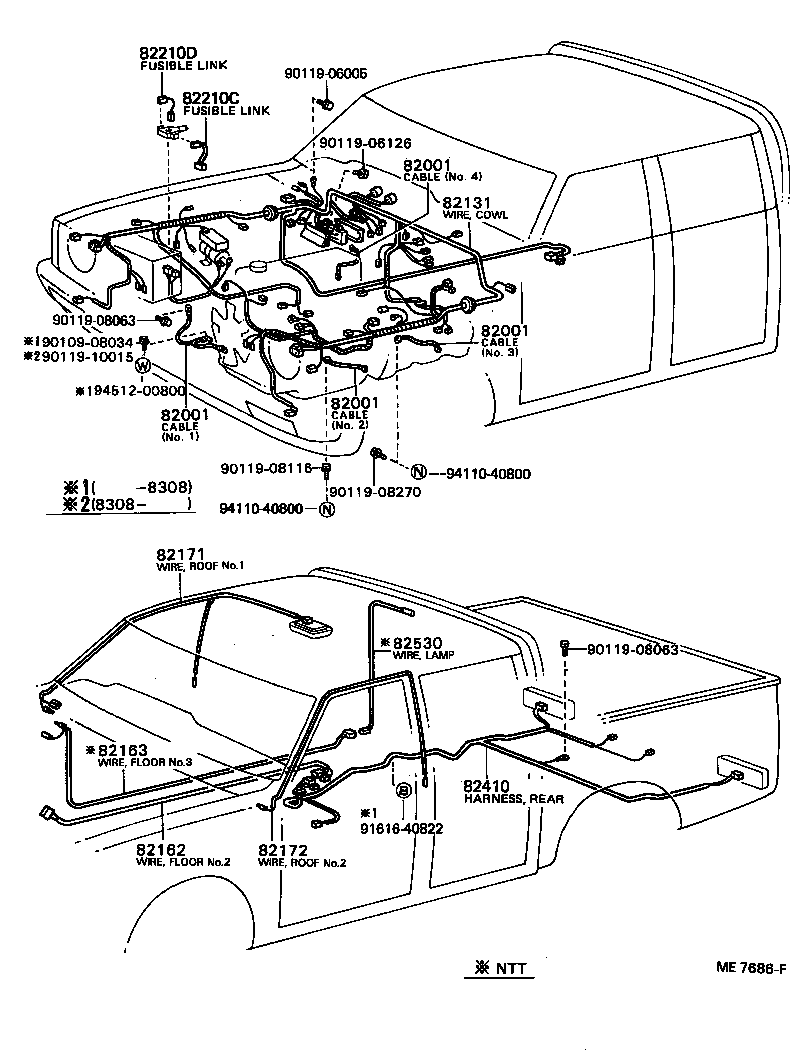

Wiring & Clamp
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82001 | Cable, Bond, NO.1 |
| 82131 | Wire, Cowl |
| 82162 | Wire, Floor, NO.2 |
| 82163 | Wire, Floor, NO.3 |
| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82210C | Fusible Link |
| 82210D | Fusible Link |
| 82410 | Harness Assy, Wiring TO Rear Lamp |
| 82530 | Wiring Assy, Interior Lamp Feed |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
