Toyota Stout

1979-03 → 1986-03 · chassis RK11# · catalogue 681120 · Japan

Discontinued model Data version 1986-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

18 part groups · 3 illustrations

Illustrations

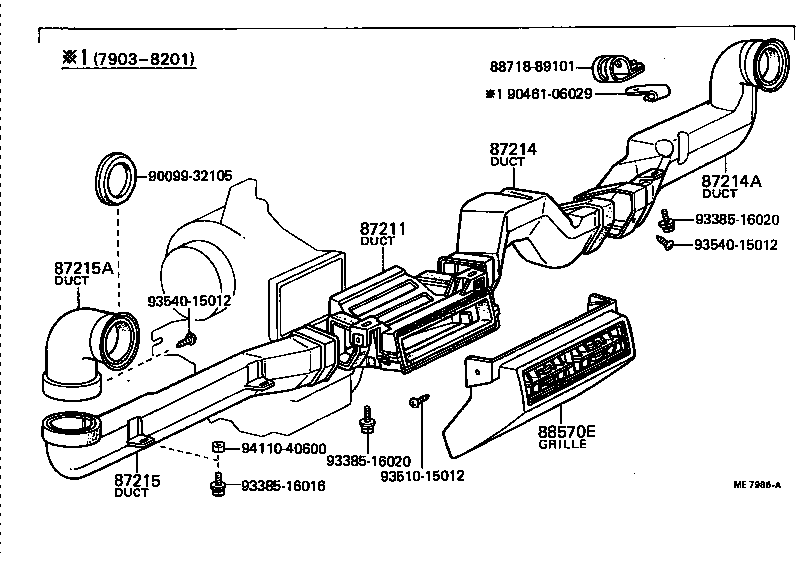

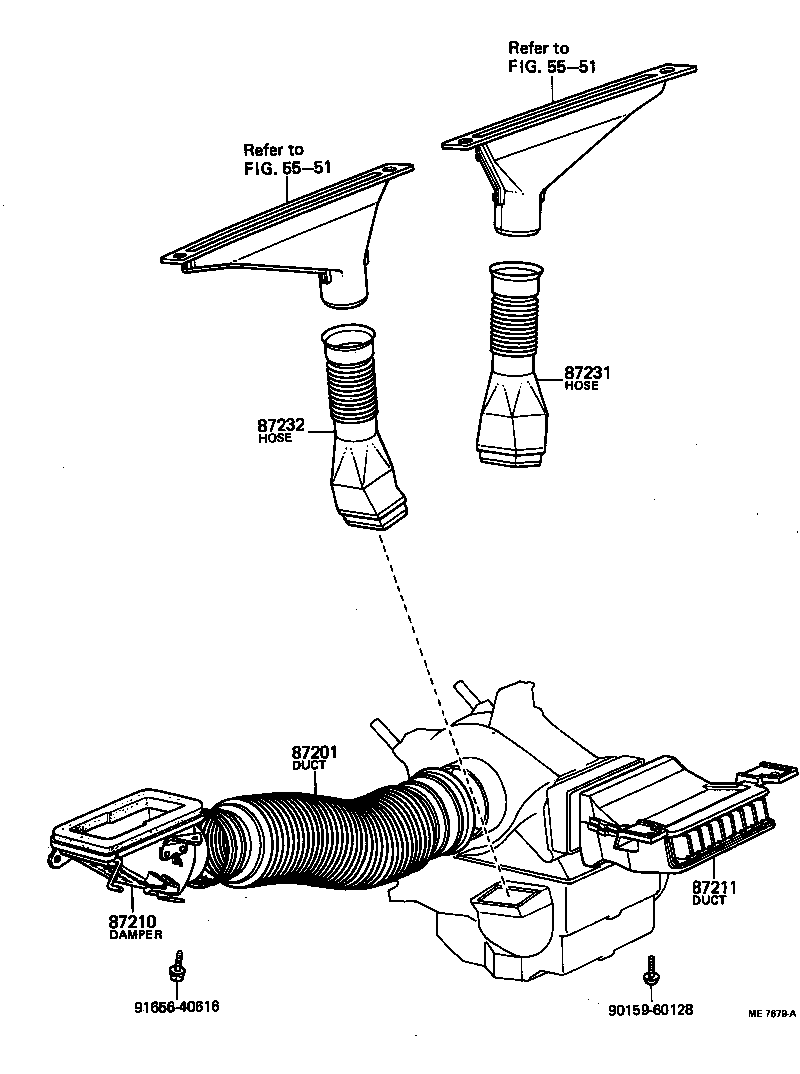

Figure ME7680E ME7680E 1979-03 → — Figure ME7679A ME7679A 1979-03 → — Figure ME7986A ME7986A 1979-03 → —

Part groups

PNCDescription
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55913A Plate, Heater Control Lever Guide
55937 Knob, Heater Control Lever
87201 Duct Sub-assy, Air, NO.1
87210 Damper Assy, Air
87211 Duct, Air, NO.1
87214 Duct, Air, Side NO.1 RH
87214A Duct, Air, Side NO.2 RH
87215 Duct, Air, Side NO.1 LH
87215A Duct, Air, Side NO.2 LH
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
87284 Resistor Sub-assy, Variable
88570E Grille Assy, Air Outlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
