Toyota Stout

1979-03 → 1986-03 · chassis RK11# · catalogue 681120 · Japan

Discontinued model Data version 1986-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

15 part groups · 2 illustrations

Illustrations

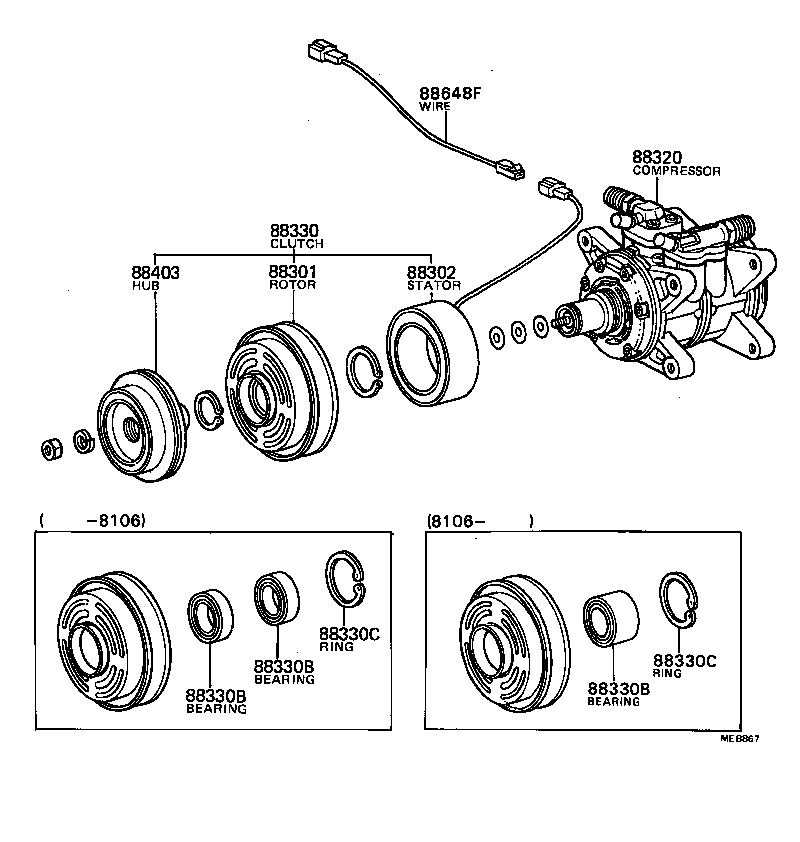

Figure ME7989B ME7989B 1979-03 → — Figure MEB867 MEB867 1979-03 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330B Bearing, Magnet Clutch
88330C Ring, Snap (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88431 Bracket, Compressor Mounting, NO.1
88432 Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88434 Bracket, Compressor Mounting, NO.4
88435 Bracket, Compressor Mounting, NO.5
88444 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
88648F Wire, Magnet Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
