Toyota Hiace Truck
1982-11 → 1985-07 · chassis RH24,LH24 · catalogue 691130 · Japan
Discontinued model
Data version 1986-05

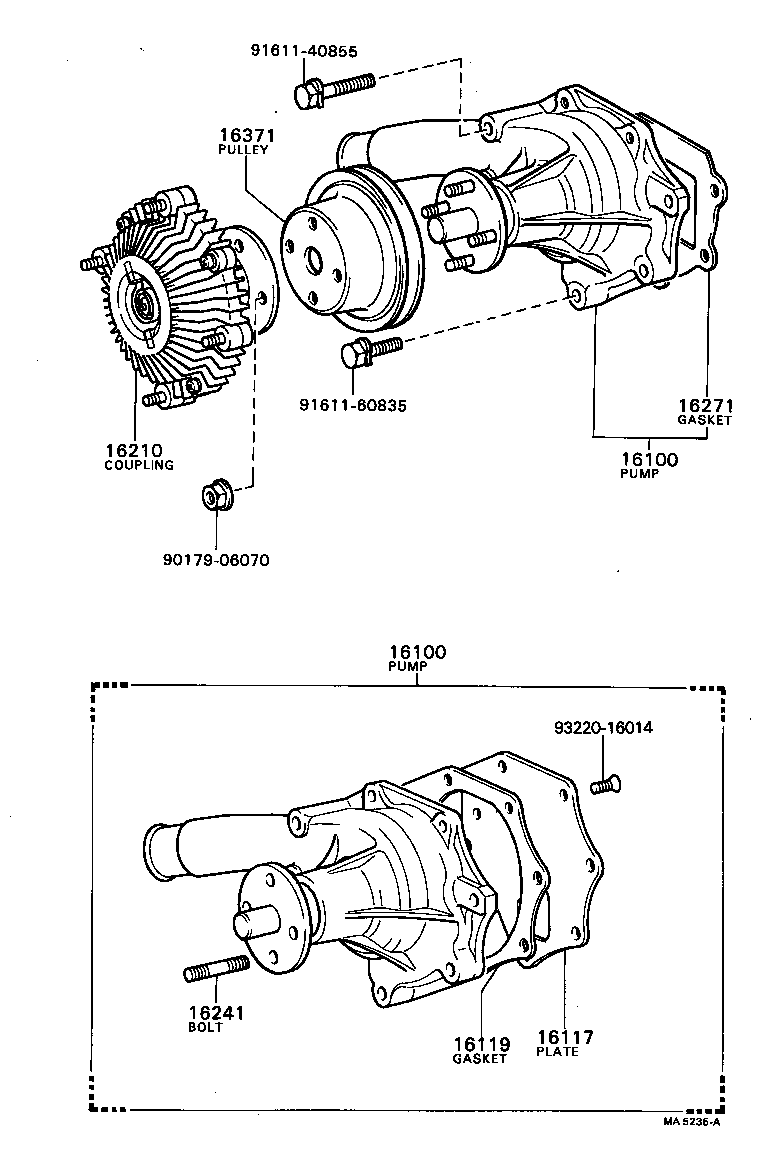

Water Pump
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16117 | Plate, Water Pump |
| 16119 | Gasket, Water Pump Body |
| 16171 | Seat, Water Pump Pulley |
| 16210 | Coupling Assy, Fluid |
| 16241 | Bolt, Stud(FOR WATER PUMP COUPLING) |
| 16271 | Gasket, Water Pump |
| 16371 | Pulley, Fan |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
