Toyota Hiace Truck

1982-11 → 1985-07 · chassis RH24,LH24 · catalogue 691130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

10 part groups · 2 illustrations

Illustrations

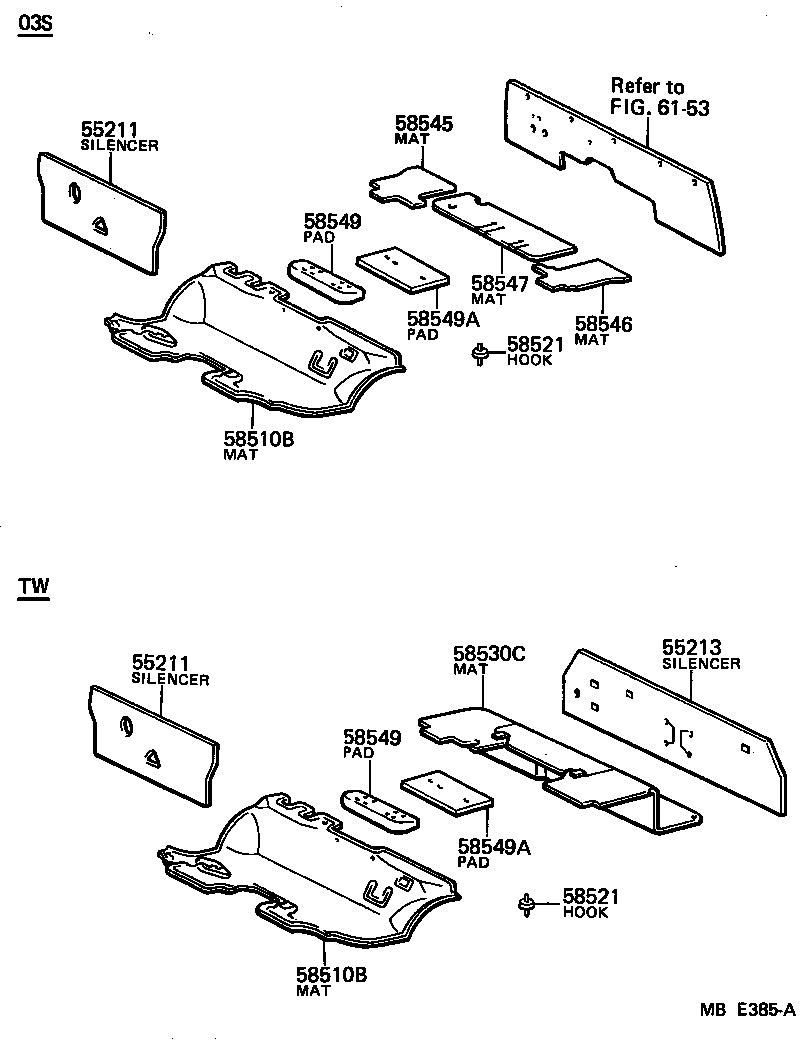

Figure MBE384A MBE384A 1982-11 → — Figure MBE385A MBE385A 1982-11 → —

Part groups

PNCDescription
55211 Silencer, Front Panel
55213 Silencer, Back Panel
58510B Mat, Front Floor, Front
58521 Hook, Male, NO.1
58530C Mat, Front Floor, Rear
58545 Mat, Header Panel, RH
58546 Mat, Header Panel, LH
58547 Mat, Header Panel, Center
58549 Pad, Engine Center Service Hole Cover Hinge, Front
58549A Pad, Engine Center Service Hole Cover Hinge, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
