Toyota Hiace Truck

1982-11 → 1985-07 · chassis RH24,LH24 · catalogue 691130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

28 part groups · 3 illustrations

Illustrations

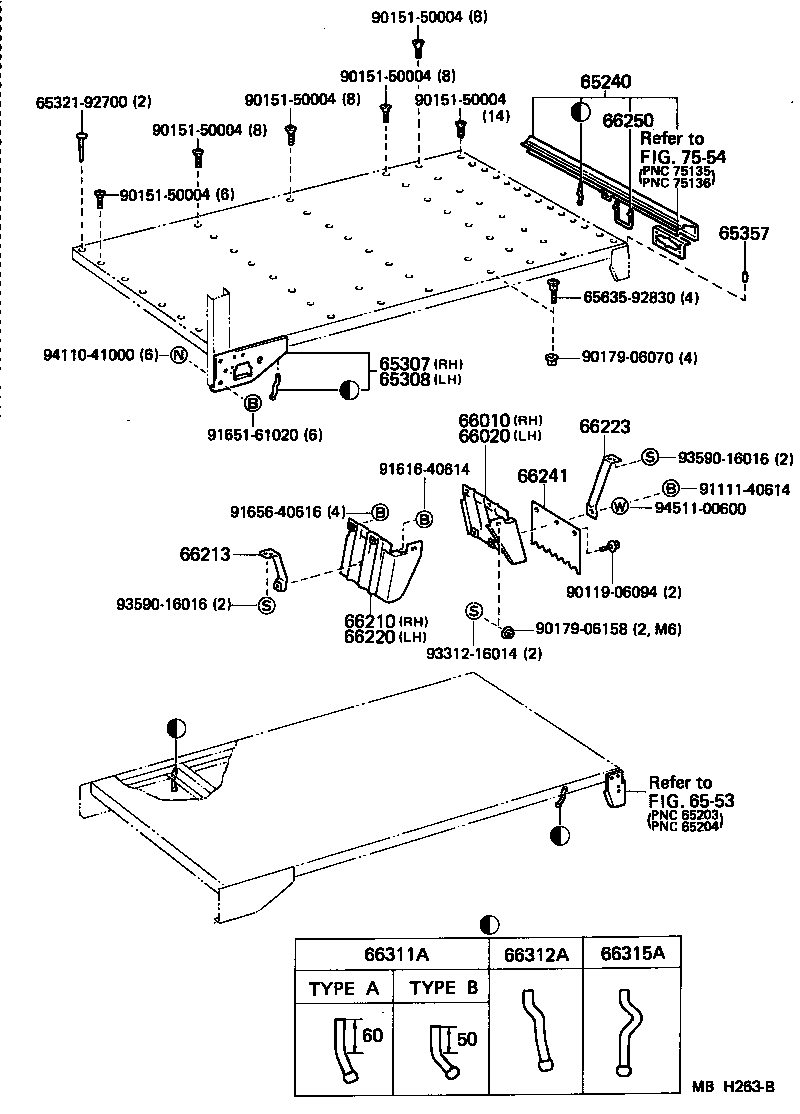

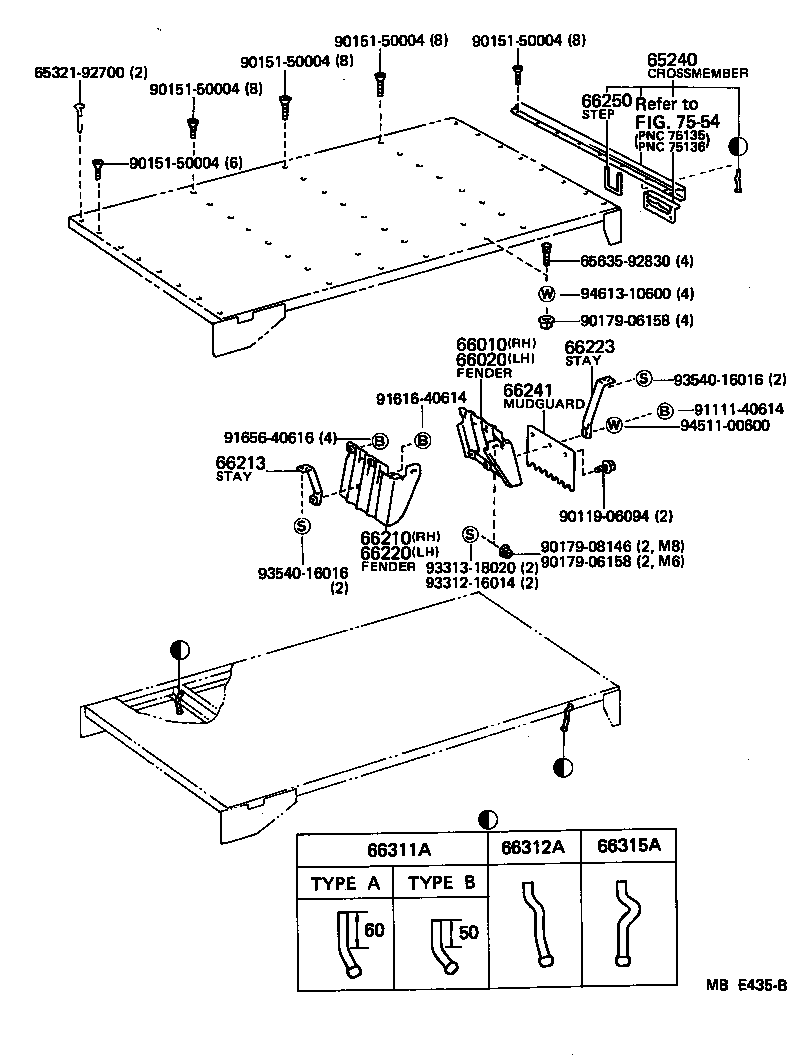

Figure MBE393B MBE393B 1982-11 → — Figure MBE435B MBE435B 1982-11 → 1984-08 Figure MBH263B MBH263B 1984-08 → —

Part groups

PNCDescription
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65240 Crossmember, Rear Body Floor, Tail
65307 Bracket Sub-assy, Guad Frame, RH
65308 Bracket Sub-assy, Guad Frame, LH
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65351 Cover, Battery Service Hole
65353 Packing, Battery Service Hole Cover
65354 Cover, Fuel Tank Service Hole
65354A Packing, Fuel Tank Service Hole Cover
65357 Cover, Front Floor Corner
66010 Fender Assy, Rear Body, Rear RH
66020 Fender Assy, Rear Body, Rear LH
66210 Fender Assy, Rear Body, Front RH
66213 Stay, Rear Fender Front Plate
66220 Fender Assy, Rear Body, Front LH
66223 Stay, Rear Fender Rear Plate
66225 Support, Rear Mudguard, RH
66226 Support, Rear Mudguard, LH
66241 Mudguard, Rear
66250 Step Assy, Rear
66271 Step, Rear Body
66311A Hook, Rope, NO.1
66312A Hook, Rope, NO.2
66315A Hook, Rope
66321 Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
