Toyota Hiace Truck

1982-11 → 1985-07 · chassis RH24,LH24 · catalogue 691130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

26 part groups · 3 illustrations

Illustrations

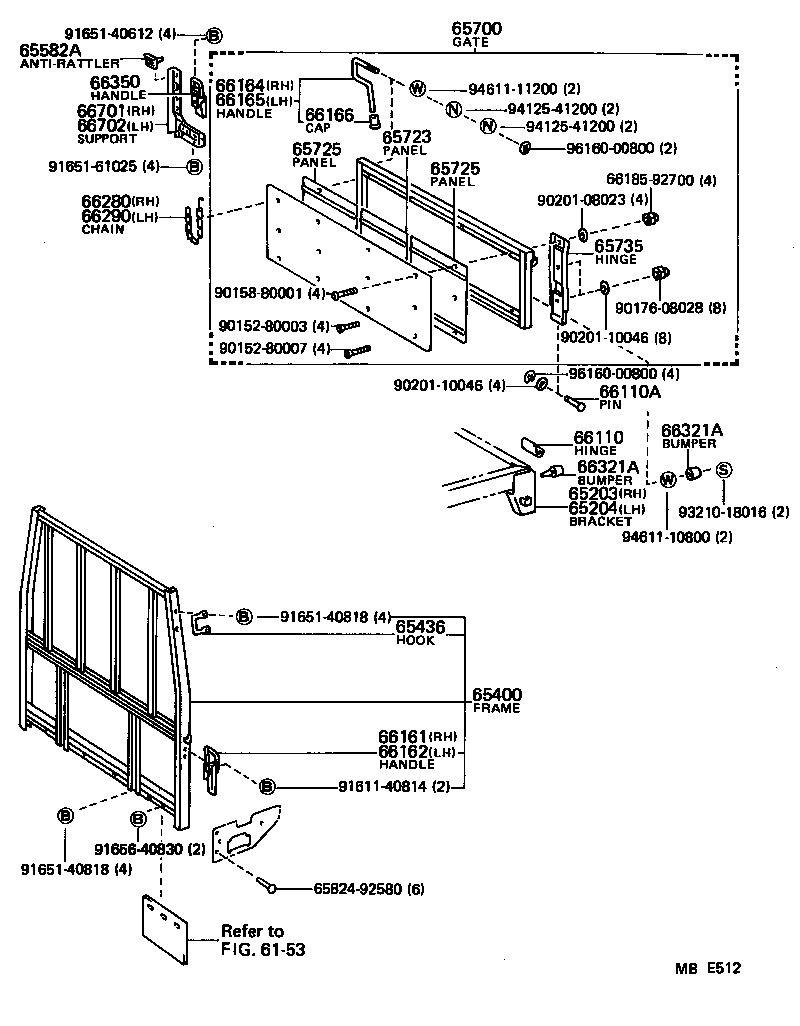

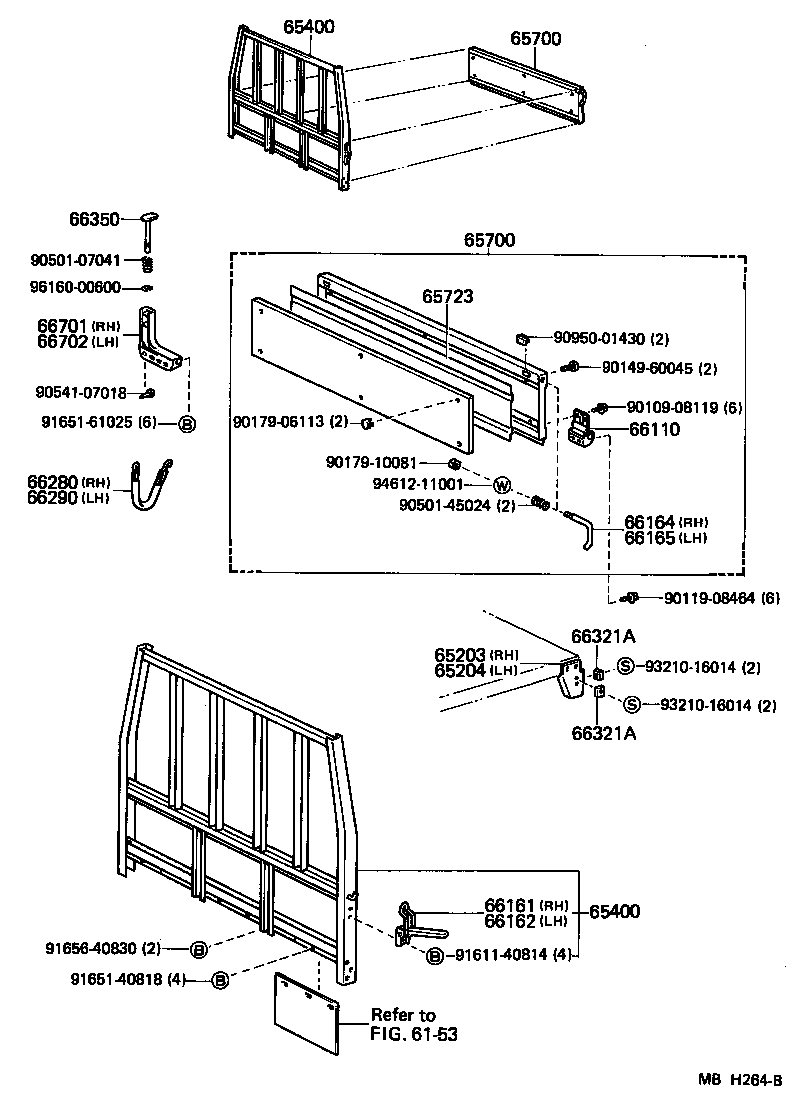

Figure MBE394 MBE394 1982-11 → — Figure MBE512 MBE512 1982-11 → 1984-08 Figure MBH264B MBH264B 1984-08 → —

Part groups

PNCDescription
65203 Bracket Sub-assy, Gate Bumper, RH
65204 Bracket Sub-assy, Gate Bumper, LH
65400 Frame Assy, Rear Body Guard
65436 Hook, Guard Frame
65582A Anti-rattler, Support Corner
65700 Gate Assy, Rear Body Tail
65723 Panel, Tail Gate
65725 Panel, Tail Gate Side
65735 Hinge, Tail Gate Male
66110 Hinge Assy, Tail Gate
66110A Pin, Tail Gate Hinge
66110B Retainer, Tail Gate Hinge, Lower
66161 Handle, Side Gate Latch, RH
66162 Handle, Side Gate Latch, LH
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66166 Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66280 Chain Assy, Tail Gate, RH
66290 Chain Assy, Tail Gate, LH
66321A Bumper, Gate Rubber
66350 Handle Assy, Support Corner
66411 Bracket, Guard Frame, RH
66412 Bracket, Guard Frame, LH
66701 Support Sub-assy, Side Gate, RH
66702 Support Sub-assy, Side Gate, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
