Toyota Hiace Truck

1982-11 → 1985-07 · chassis RH24,LH24 · catalogue 691130 · Japan

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

29 part groups · 3 illustrations

Illustrations

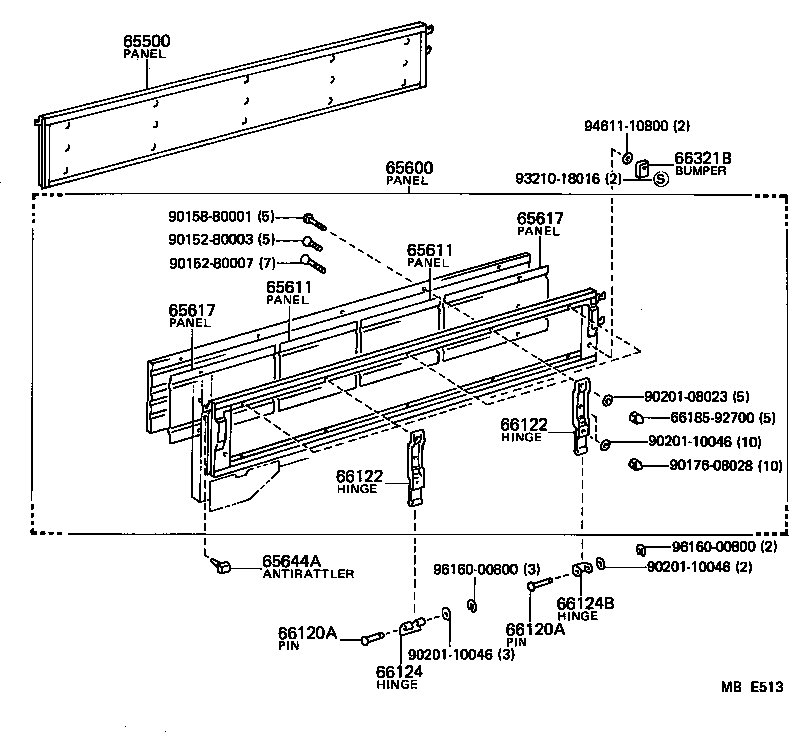

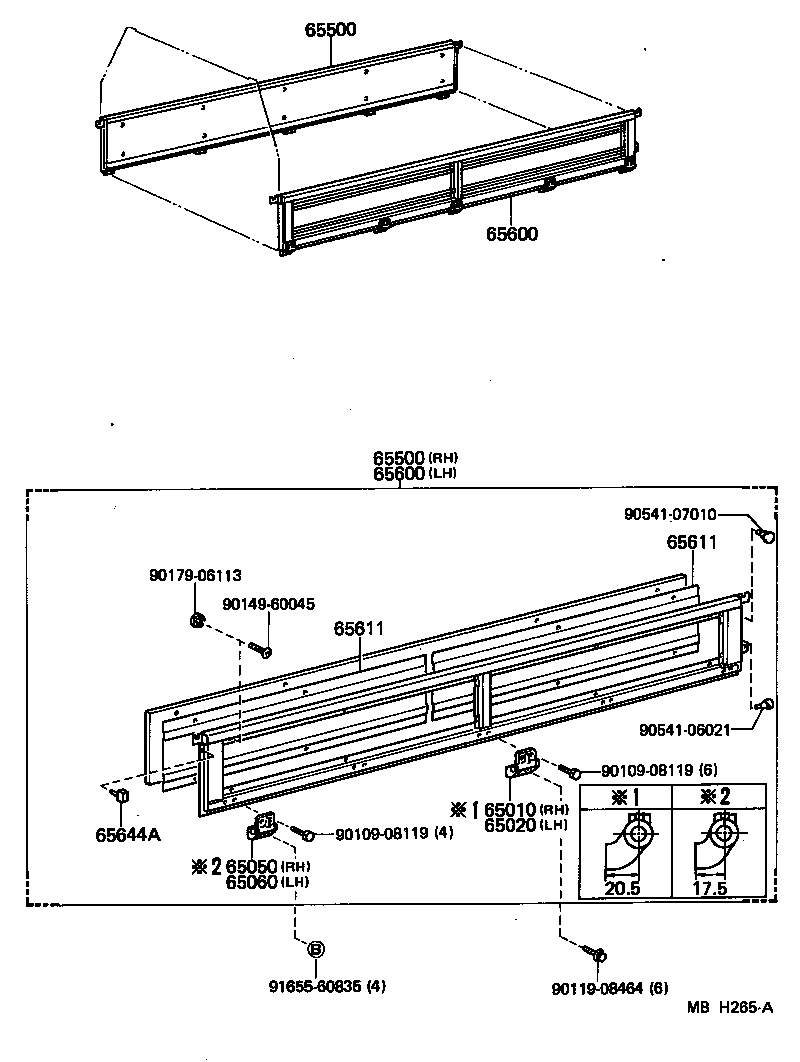

Figure MBE395 MBE395 1982-11 → — Figure MBE513 MBE513 1982-11 → 1984-08 Figure MBH265A MBH265A 1984-08 → —

Part groups

PNCDescription
65010 Hinge Assy, Side Gate, N0.1 RH
65020 Hinge Assy, Side Gate, NO.1 LH
65050 Hinge Assy, Side Gate, N0.2 RH
65060 Hinge Assy, Side Gate, N0.2 LH
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65500 Panel Assy, Rear Body Side, RH
65600 Panel Assy, Rear Body Side, LH
65610 Skirt Assy, Side Panel, Front RH
65611 Panel, Side Gate
65617 Panel, Side Gate, Corner
65620 Skirt Assy, Side Panel, Front LH
65631 Skirt, Side Panel, Rear RH
65632 Skirt, Side Panel, Rear, LH
65644A Anti-rattler, Side Gate
65651 Panel, Wheel House
65671 Brace, Side Panel Skirt, Front
66120 Hinge Assy, Side Gate
66120A Pin, Side Gate Hinge
66120B Retainer, Side Gate Hinge, Lower
66122 Hinge, Side Gate, Male
66124 Hinge, Side Gate, Female
66124B Hinge, Side Gate, Female
66153 Latch, Tail Gate Female, RH
66154 Latch, Tail Gate Female, LH
66321B Bumper, Gate Rubber
66332 Cushion, Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
