Toyota Hiace Truck
1982-11 → 1985-07 · chassis RH24,LH24 · catalogue 691130 · Japan
Discontinued model
Data version 1986-05
Seat & Seat Track
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|

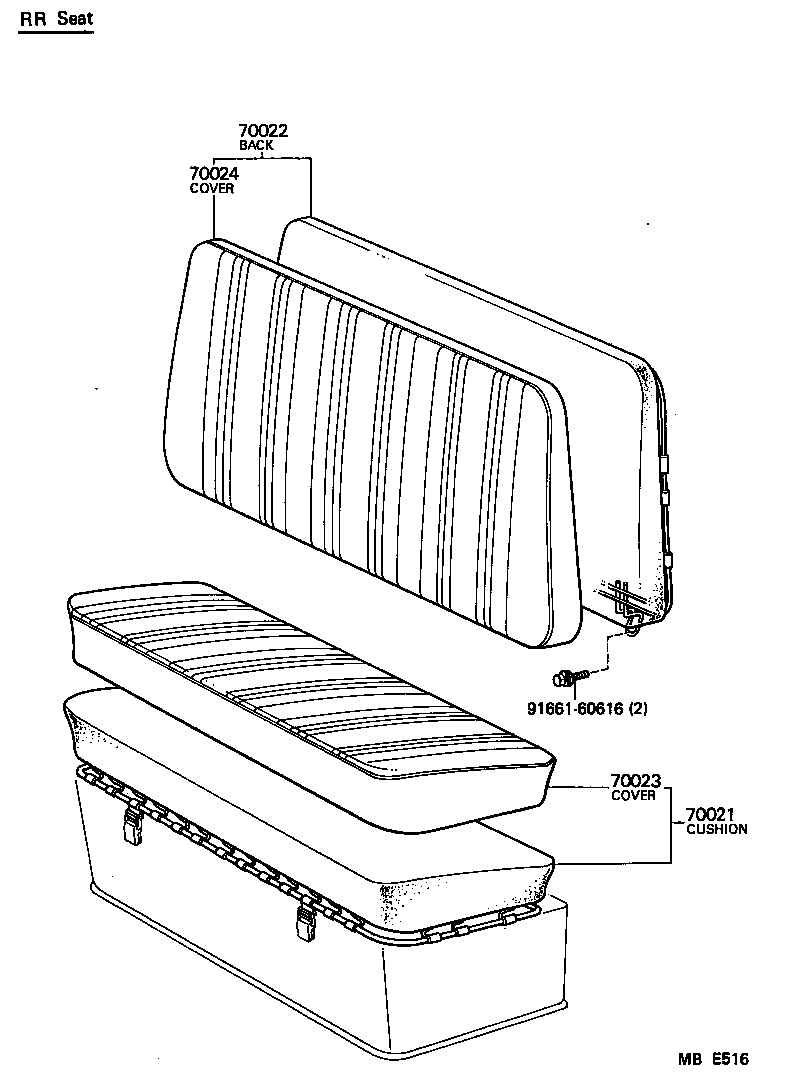

| 70021 | Cushion Assy, NO.2 Seat |
| 70022 | Back Assy, NO.2 Seat |
| 70023 | Cover Assy, NO.2 Seat Cushion |
| 70024 | Cover Assy, NO.2 Seatback |
| 71012 | Support Sub-assy, Front Seatback, LH |
| 71012A | Guide, Front Seatback Support, LH |
| 71110S | Cushion Assy, Front Seat, RH |
| 71140S | Cover, Front Seat Cushion, RH |
| 71150S | Back Assy, Front Seat, RH |
| 71155 | Support, Driver Seatback, RH |
| 71190S | Cover, Front Seat Back, RH |
| 71210S | Cushion Assy, Front Seat, LH |
| 71240S | Cover, Front Seat Cushion, LH |
| 71250S | Back Assy, Front Seat, LH |
| 71283 | Bush, Front Seatback Support, LH |
| 71283A | Bolt, Front Seatback Support, LH |
| 71284 | Spacer, Front Seatback Support, LH |
| 71290S | Cover, Front Seatback, LH |
| 71294 | Hinge, Front Seatback, LH |
| 71299 | Bracket, Front Seatback, LH |
| 71306A | Hinge Sub-assy, Center Seat, RH |
| 71306B | Hinge Sub-assy, Center Seat, LH |
| 71306C | Plate, Center Seat Hinge Caution |
| 71310S | Cushion Assy, Front Seat, Center |
| 71340S | Cover, Front Seat Cushion, Center |
| 71350S | Back Assy, Front Seat, Center |
| 71390S | Cover, Front Seatback, Center |
| 71903 | Catch Sub-assy, Seat Cushion, Front |
| 71921 | Retainer, Engine Service Hole Cover Catch |
| 72110S | Track Assy, RH Seat, Outer (FOR SEPARATE SEAT) |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
