Toyota Hiace Truck
1982-11 → 1985-07 · chassis RH24,LH24 · catalogue 691130 · Japan
Discontinued model
Data version 1986-05

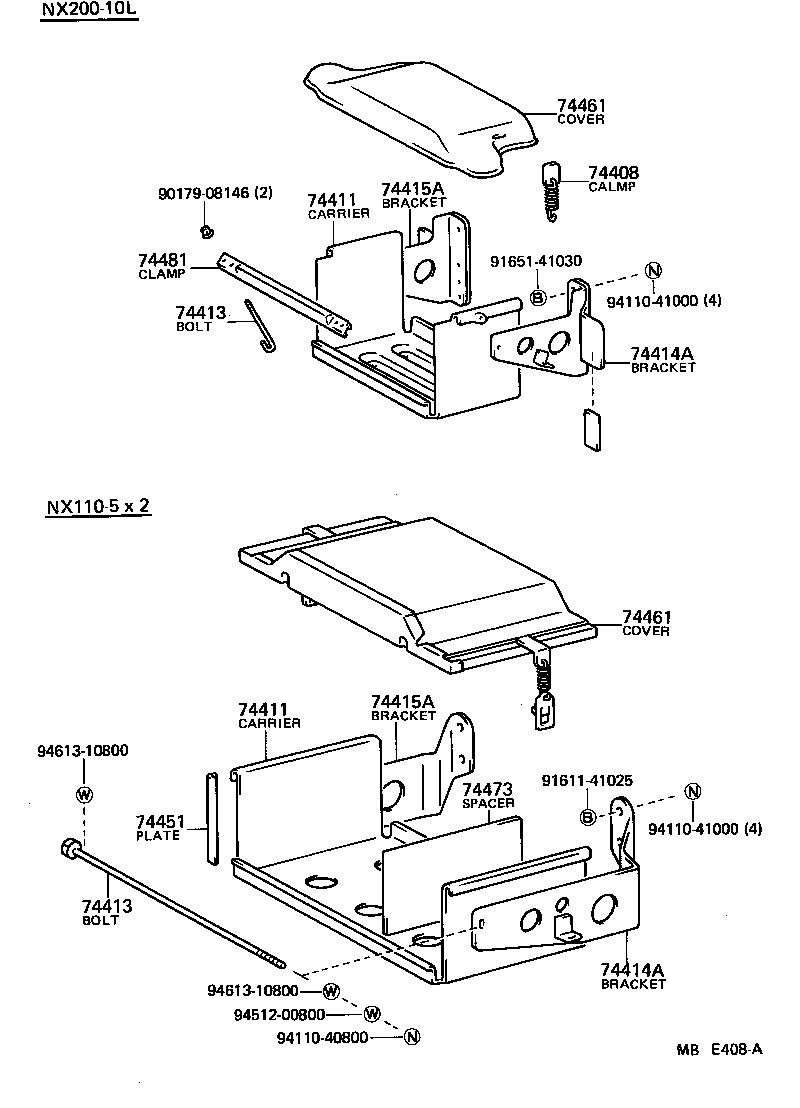

Battery Carrier
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74408 | Clamp Sub-assy, Battery Cover |
| 74411 | Carrier, Battery |
| 74413 | Bolt, Battery Clamp |
| 74414A | Bracket, Battery, NO.1 |
| 74415A | Bracket, Battery, NO.2 |
| 74417 | Bracket, Battery Carrier |
| 74451 | Plate, Battery Carrier Support |
| 74461 | Cover, Battery |
| 74472 | Pad, Battery Side |
| 74473 | Spacer, Battery |
| 74481 | Clamp, Battery Hold Down |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
