Toyota Hiace Truck

1985-08 → 1987-08 · chassis LH80,YH80 · catalogue 691140 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 3 illustrations

Illustrations

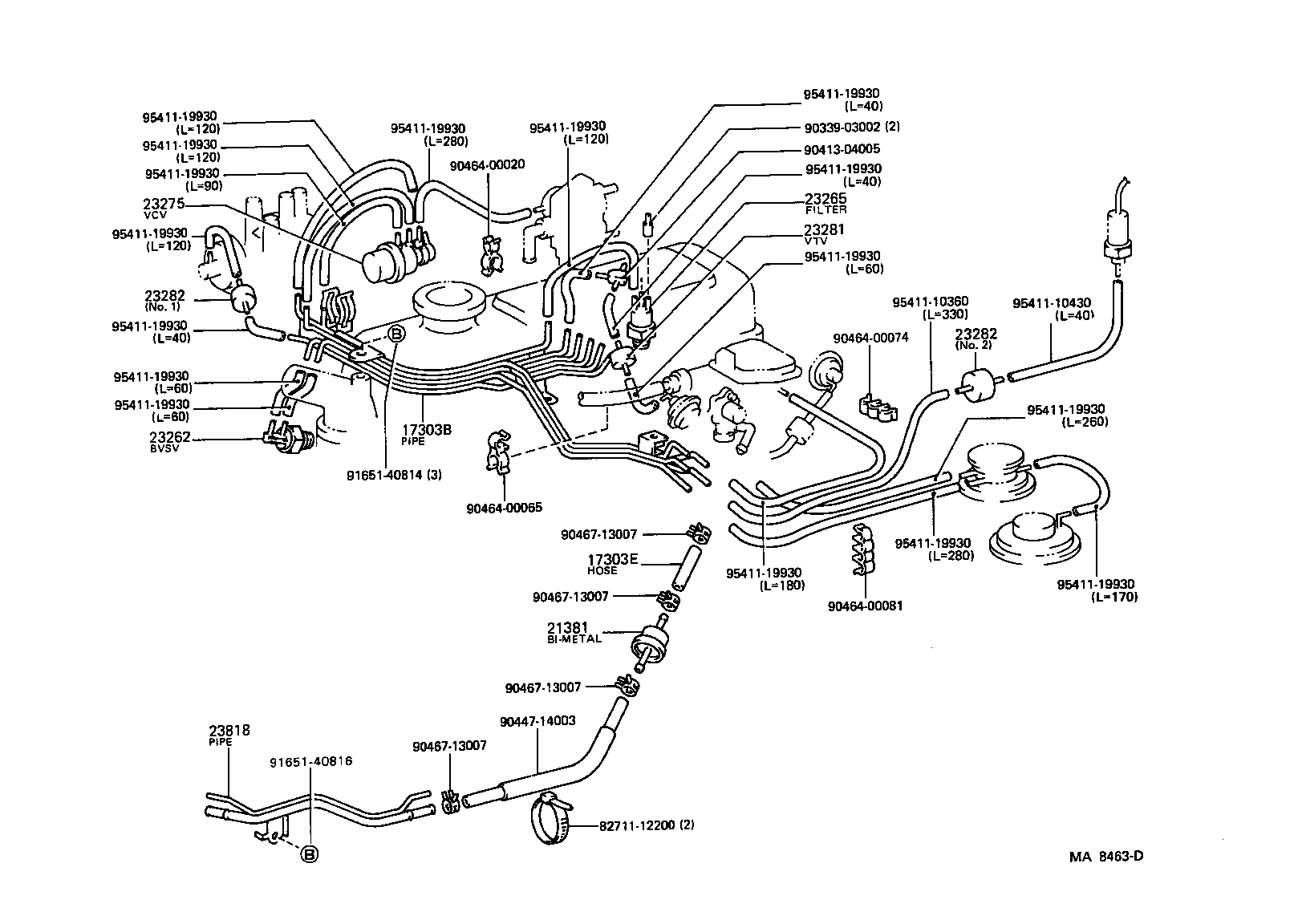

Figure MA9503 MA9503 1985-08 → — Figure MA9503 MA9503 1985-08 → — Figure MA8463D MA8463D 1985-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23818 Pipe, Fuel Vapor Feed
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
