Toyota Hiace Truck

1985-08 → 1987-08 · chassis LH80,YH80 · catalogue 691140 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

12 part groups · 2 illustrations

Illustrations

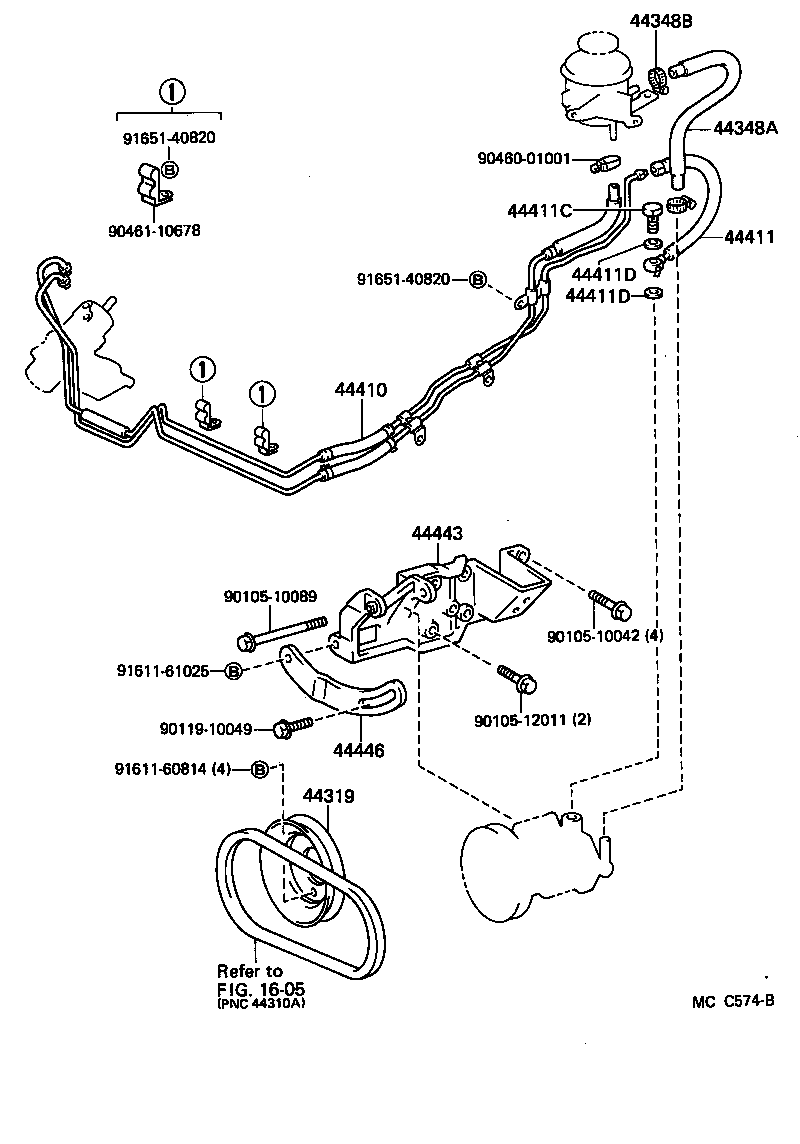

Figure MCC573B MCC573B 1985-08 → — Figure MCC574B MCC574B 1985-08 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
